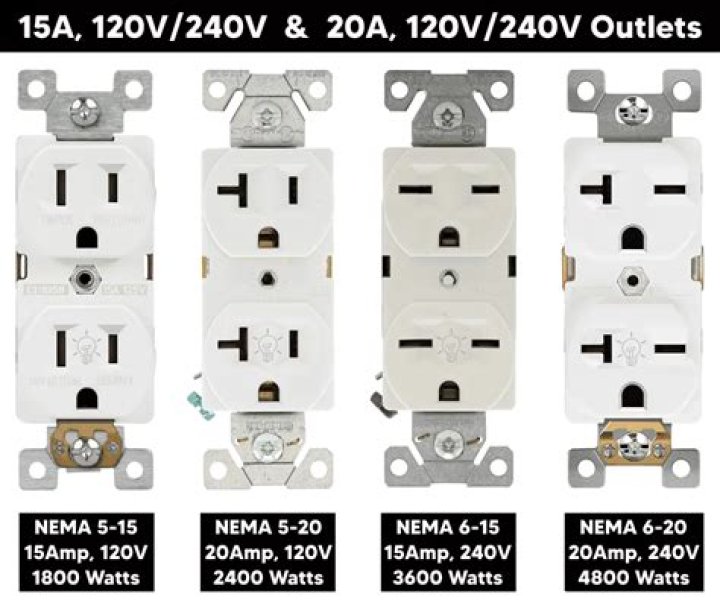

Why are 220v outlets different?

Because 220-volt circuits carry higher current, they require 10 gauge or larger wire, whereas the normal maximum wire size in a 110-volt circuit is 12 gauge. The terminal screws in 220V plugs and outlets are accordingly larger.

Can you have a junction box for 220?

As for the question, yes, you can definitely splice or join heavy-duty (220v/200 amp) wires instead of rewiring the entire run. You will need a heavy-duty junction box for this, but yes, there shouldn’t be any problems with the setup.

What size wire is used for 220V?

A 30 Amp circuit is needed for most 220V tools. You will need to run a 10-2 to the outlet. 10-2 copper wire is usually good for up to 40 Amps on start loads and 35 Amps on constant load.

What happens if you plug a 110v into a 220v outlet?

It isn’t safe to plug 110v to 220v. Overvoltage can destroy the appliance as such if the appliance has a motor, the motor might simply wear out. If the device in question is a bulb, you may hear a crack before it stops working.

Can you turn a 110 outlet into a 220v?

Can I convert a 110v outlet to 220v? Yes, you can convert 110v outlets to 220v. This necessitates large-scale rewiring and a building code inspection. In this case, an electrician from U.S Electric can help.

How many amps is a 220 outlet?

This 220v 20 Amp outlet is likely to be used for larger power tools in your garage or shop, as shown in the how to 220-volt outlet video.

Does a fridge need a 220 outlet?

Do refrigerators use 110 or 220? Refrigerators use 110 to 120-volt plugs, which is the standard in most homes. A 220-volt plug is not needed for a refrigerator. Your refrigerator will have a three-prong plug that you can line up and fit into the socket to plug it in.

How much does it cost to get a 220v outlet installed?

Installing a 220/240-Volt Outlet

Average costs for a journeyman electrician to install a 220/240-volt outlet is about $300.

What size breaker do I need for a 220 outlet?

For 220v welders, you will need at least 30 – 40 Amp breaker, and for smaller 115v welders, you will need at least 20 – 30 Amp breaker. You will need a 50 Amp breaker for the 3 phase.

How do you wire a 220v plug with 3 wires?

Typically, a 220v power plug can be connected with three or four wires.

For the best 220v plug click here .
Step One: Choose A Wire Gauge. Step Two: Remove The Outer Coating Of The Wire. Step Three: Feed The White Wire. Step Four: Push The Hot Wires.

Can I use wire nuts on 220?

Wire nuts can be safely used to bond 220v electrical wires, but only if the original cable is fed from the main electrical panel, and the neutral wire (of the original cable) is insulated.

What is code for electrical junction box?

Article 334.30 states that cables coming out of the junction boxes should be secured within 12 inches of the box in all boxes equipped with cable clamps. These cable clamps are not to be removed. 314.17(C) states that cables must be secured to the receptacle box.

Can I use 12 gauge wire for 240 volts?

Also, make sure the amperage of the breaker matches the amperage of the circuit wires and the appliance being powered. A 20-amp 240-volt circuit calls for 12-gauge wire; a 30-amp circuit calls for 10-gauge wire; a 40-amp circuit calls for 8-gauge wire; and a 50-amp circuit calls for 6-gauge wire.

What size wire do I need for a 30 amp 220v circuit?

For a maximum of 30 amps, you’ll need a wire gauge of 10. The most common household item that requires a 30 amp circuit is a central air conditioner.
