How long does it take to reset an Image Sensor?

Press and hold a full 10 seconds until the sensor LED flashes rapidly to reset the sensor and clear it from its network. The sensor must be reset prior to enrolling in a new network. (Note: The sensor can only be cleared from its network using the reset button if it is currently not communicating with its network.

What is the maximum open air range an Image Sensor can be from a 2GIG panel?

The 2GIG Passive Infrared Motion Detector is a wall-mounted unit with wide-angle motion protection. It communicates with the control panel using the 345 MHz frequency. When set to High (HI) Sensitivity Mode, the PIR has a maximum range of 30 ft deep x 50 ft wide (9.1 m x 15.2 m).

What is a 2GIG Image Sensor?

The Image Sensor is a pet immune PIR (passive infrared) motion detector with a built-in camera. The sensor is designed to capture images during alarm or non-alarm events. A system with a 2GIG Cell Radio Module connected to an Alarm.com account with service plan subscription is required.

How do I reset my 2gig sensor?

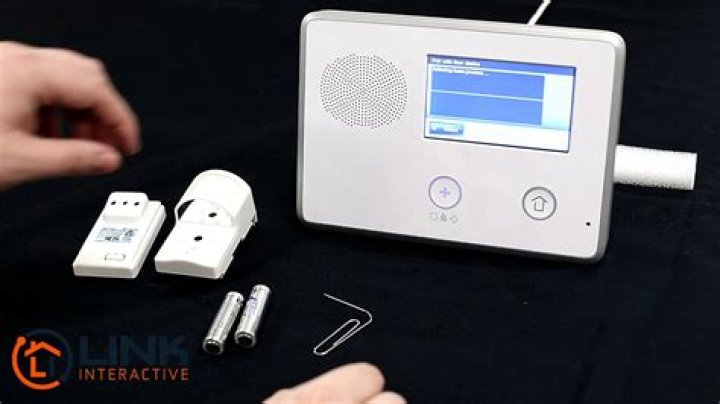

SENSOR RESET BUTTON

Insert a paperclip into the hole on the front of the sensor to access the reset button. Press and hold for 3 seconds to power cycle the sensor. Press and hold a full 10 seconds until the sensor LED flashes rapidly to reset the sensor and clear it from its network.

How many feet does an Image Sensor need to be within the panel during enrollment?

When auto-enrolling, the sensor must be within range of the panel. This distance can vary between different image sensor modules. Most image sensors will have a wireless range of at least 200 feet in open air, but some will have a greater range.

How do you reset a tamper sensor?

You’ll need to open the sensor by pushing on the top of it. You may need a small, thin tool to help. If the tamper switch is out of place, quickly bend it until it is back in position. After you have finished, replace the cover and put it back in its original condition.

What communication method does the Image Sensor use to communicate with the panel?

Alarm sensors communicate with security panels using a variety of different methods. The method that is used will depend upon the type of sensor. Some are wireless, while others must be hardwired directly. Most sensors use wireless RF signals, a hardwired connection or WIFI connectivity.

How many video cameras can be associated to a residential alarm com account?

The maximum number of cameras that can be connected to a single Alarm.com account is 40.

What is the maximum number of days you can store Image Sensor images on alarm com?

An Alarm.com Image Sensor can store between 50 and 3,200 images, depending upon the model and various settings you have configured on Alarm.com. For an Alarm.com Image Sensor, its storage limit is based event limits. Most Alarm.com Image Sensor devices will capture two (2) images per event.

How long is the alarm com history retained for?

Event Overview: The History Tab provides ways of viewing system activity. On the Today’s Events Subtab, you can see 60 days of history* by choosing from the day, month, and time period pull downs.

What alarm com camera has a Bluetooth speaker?

Alarm.Com ADC-V622 180° HD Security Camera W/ 2 Way Audio & Bluetooth Speaker.

How many user codes does alarm com allow?

There is no limit to the number of logins that can be created for an Alarm.com account, but there is a limit to the number of valid codes the alarm panel supports. For example, a 2GIG GC3 supports up to 100 user codes, but an Alarm.com account associated with a GC3 can have more than 100 logins.

What is the minimum signal strength needed for two way voice?

A minimum inbound signal strength of —95 dBm, or other signal strength as required by the authority having jurisdiction, shall be provided throughout the coverage area.

What keypad address does SEM enroll in?

By default, the SEM will use Keypad 8 Device Address 23 to communicate. Address 23 must be enabled via panel programming.
