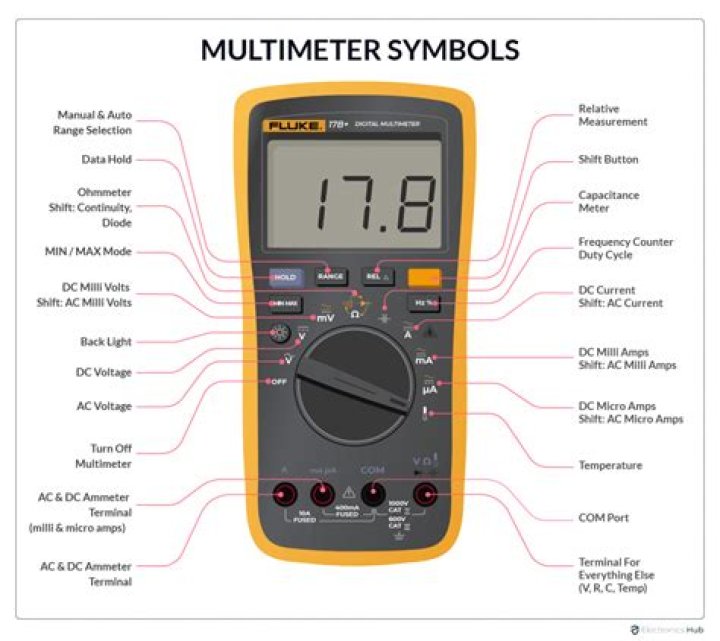

The amp symbol on your multimeter is an uppercase A. Milliamps and microamps are indicated by the abbreviations mA and µA, respectively. Your meter likely has a dial that selects different functions from testing AC and DC voltage to continuity and resistance.

What does 10A mean on A multimeter?

10A is the special port used when measuring large currents (greater than 200mA). mAVΩ is the port that the red probe is conventionally plugged in to.

What is the ammeter symbol?

What is an ammeter? Ammeter or ampere meter is an electrical measuring device, which as seen from its nomenclature is useful for the measurement of the ampere i.e. to measure electric current through the circuit. The normal symbol of ampere meter is capital A mentioned inside a circle.

What is the symbol for AC power?

11. AC Current. Represented by capital V with a wavy line on top, the symbol stands for current. You should use it when you are measuring AC current.

What does 200m mean on A multimeter?

200 m on a multimeter means 200 milli. The voltage and the current can be set to 200 millivolts or 200 milliamperes on the multimeter.

What are the symbols for AC and DC power?

Whereas the familiar battery symbol is used as a generic symbol for any DC voltage source, the circle with the wavy line inside is the generic symbol for any AC voltage source.

How many amps can A multimeter handle?

Most multimeters will safely carry up to 10 amps for measurements of this sort. Beyond that, however, their internal fuse should blow to prevent damage to its circuitry. For obvious reasons, try to avoid testing that function.

How much amp draw is too much?

In fact, we suggest a 25-milliamp draw is acceptable and anything that exceeds 100-milliamps indicates an electrical issue that needs to be addressed.

How long will a battery last with a 1 Amp draw?

A battery with a capacity of 1 amp-hour should be able to continuously supply current of 1 amp to a load for exactly 1 hour, or 2 amps for 1/2 hour, or 1/3 amp for 3 hours, etc., before becoming completely discharged.
