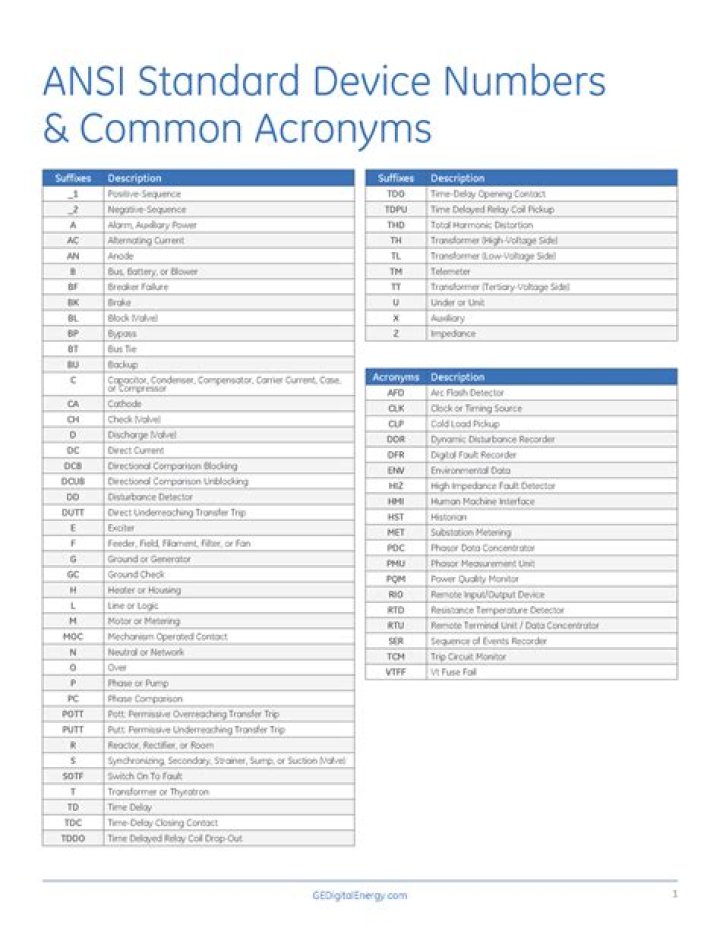

What is the ANSI code?

American National Standards Institute codes (ANSI codes) are standardized numeric or alphabetic codes issued by the American National Standards Institute (ANSI) to ensure uniform identification of geographic entities through all federal government agencies.

What does ANSI code 95 mean?

92 – Voltage And Power Directional Relay. 93 – Field-Changing Contactor. 94 – Tripping or Trip-Free Relay. 95 – For specific applications where other numbers are not suitable.

What is ANSI 32?

32 – Directional Power Relay

36 – Polarity or Polarizing Voltage Devices. 37 – Undercurrent or Underpower Relay. 38 – Bearing Protective Device.

How many ANSI codes are there?

There are more than 10,000 ANSI standards – ANSI standards are everywhere.

Where can I find the ANSI standards?

Most ANSI standards are located in the Standards Center (Parks Library, Room 161) in filing cabinets. They are in order by standard number.

Does ANSI exist?

The American National Standards Institute (ANSI /ˈænsi/ AN-see) is a private non-profit organization that oversees the development of voluntary consensus standards for products, services, processes, systems, and personnel in the United States.

What is a 47 relay?

Protects rotating equipment from the damaging effects of excessive negative-sequence voltage resulting from phase failure, phase unbalance, and reversed-phase sequence.

What is 51G protection?

ANSI 50N/51N or 50G/51G – Earth fault

Earth fault protection based on measured or calculated residual current values: ANSI 50N/51N: residual current calculated or measured by 3 phase current sensors. ANSI 50G/51G: residual current measured directly by a specific sensor.

What is a 63 relay?

62 Time-delay stopping or opening relay A time-delay relay that serves with the device that initiates the shutdown, stopping or opening operation in an automatic sequence or protective relay system. 63 Pressure switch A switch that operates on given values, or on a given rate of change of pressure.

What is 50G protection?

50G is the protection of neutral point on grounded-star side in typical Transformers of Iran distribution network. In this protection, a CT is placed between neutral point of the secondary star side and ground to measure zero sequence currents. This will detect faults and unbalanced conditions on the secondary to load.

What is 50 and 50n protection?

50/51 and 50/51N relays. Overcurrent relays are the most commonly-used protective relay type. Time-overcurrent relays are available with various timing characteristics to coordinate with other protective devices and to protect specific equipment.

What is a 52 circuit breaker?

2 standard defined device number 52 as an ac circuit breaker that is used to close and interrupt a power circuit under normal conditions or to interrupt this circuit under fault or emergency conditions [1].

Who uses ANSI?

The over 1,000 members of ANSI represent more than 270,000 companies, professional societies, trade associations, government agencies, and consumer and labor organizations. ANSI lobbies for over 30 million professionals and covers nearly every industry across the globe.

What is 51p protection?

In protective relay-based systems, the time overcurrent protection function is designated by the ANSI/IEEE number code 51. Time overcurrent protection allows for significant overcurrent magnitudes, so long as these overcurrent events are brief enough that the power equipment avoids heat damage.

What are ANSI characters?

The ANSI character set was the standard set of characters used in Windows operating systems through Windows 95 and Windows NT, after which Unicode was adopted. ANSI consists of 218 characters, many of which share the same numerical codes as in the ASCII/Unicode formats.

How do you get ANSI accreditation?

The ANSI accreditation process involves both a review of a paper application and the performance of an assessment (onsite visit) to validate information provided by each applicant. The use of an onsite assessment for accreditation of personnel certification agencies is unique to ANSI.

Is ANSI an ISO?

ANSI is the U.S. member body to ISO and, via its U.S. National Committee, the International Electrotechnical Commission (IEC). ANSI is also a member of the International Accreditation Forum (IAF).

What is ANSI standard in C++?

ANSI-C++ is the name by which the international ANSI/ISO standard for the C++ language is known. But before this standard was published, C++ was already widely used and therefore there is a lot of code out there written in pre-standard C++.
