Junction boxes must be installed where they are always accessible; never install a junction box in a concealed wall or ceiling space where the box cannot be accessed in the future. Junction boxes also must be covered with solid covers with no holes.

Can you splice wires inside a wall?

Electrical splices can never be left on their own in a wall or ceiling cavity. Instead, all splices must be contained within an approved junction box or fixture electrical box. The old, informal method of splicing wires together with electrical tape should never be used.

Can you use a metal junction box inside?

Metal boxes should be used: When metal-sheathed cable or metal conduit is running in or out of the box. For interior exposed application such as in an unfinished basement or mudroom where there’s no drywall.

Article 334.30 states that cables coming out of the junction boxes should be secured within 12 inches of the box in all boxes equipped with cable clamps. These cable clamps are not to be removed. 314.17(C) states that cables must be secured to the receptacle box.

Can you splice Romex in wall?

And the splice can only be concealed when it is part of a NM cable fished behind a wall or floor. The device is never permitted in an open stud space where drywall will later cover it during the finishing phase of a remodel, regardless of the Code cycle.

Short answer: NO. Long answer: All splices must be in a junction box, and the junction box must be accessible.

How do you hang a junction box in a wall?

Step 1: Trace Box. For your safety, turn off power before starting this project. Step 2: Cut Hole. Cut the hole with a drywall saw. Step 3: Thread Cables. Run cable through the hole. Step 4: Insert Box. Push the box into the hole. Step 5: Secure Box to Wall.

Do I need to ground a metal junction box?

No, you do not have to attach a grounding wire directly to the metal enclosure if you are just using it as a pull point and you are otherwise grounding it using continuous runs of EMT.

There are no limits on the number of junction boxes (without devices) in any particular circuit. Each piece of ‘utilization equipment’ reduces the maximum allowable load by it nameplate rating, 180va for each receptacle, and each light fixture at its maximum labeled lamp wattage.

Can a junction box be in a crawlspace?

Junction boxes will be able to fit into any crawlspace. Your main concern is if you can access it without having to tear your house apart. It’s recommended that your crawlspace should have a clearance big enough for you to be able to work with tools while you’re underneath it; around 1 meter should be good.

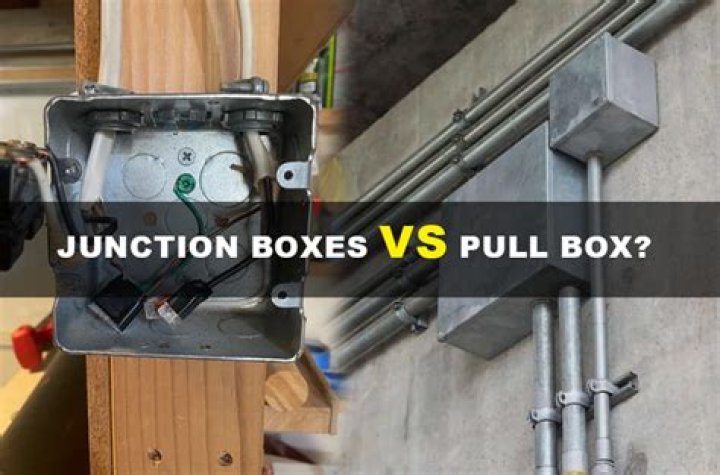

What is the difference between a junction box and a pull box?

As a rule of thumb, pull boxes are used when conductors are pulled straight through a box and terminated down-stream. On the other hand, junction boxes can be used for splicing or tapping conductors. Larger boxes provide more capacity, and they make pulling, splicing, tapping or positioning the conductors easier.

How many wires can you put in a junction box?

Choose the Right Junction Box

For example, the smallest 2-by-4-by-1-1/2-inch-deep box can comfortably splice only two cables (four or five conducting wires), while the largest 4-by-4-by-2-1/8-inch-deep boxes can handle as many as four to six cables (up to 18 individual conducting wires).

As long as there are no wires inside the box, you can cover it with drywall. If the box is still acting as a junction box, however, and wires are joined inside it, the electrical code mandates a removable cover.

Are junction boxes legal?

Registered. Yes any concealed box is a code violation. All splices must be accessable. Now practically speaking if the splice is made properly with wire nuts and the cables properly clamped in the box, you can cover it without concern.

Do I need a junction box to extend wiring?

If you do need to extend the wires, yes, a junction box would be needed. It must remain accessible.

Are junction boxes required?

You’ll need a junction box if you can’t make the connections inside an existing electrical box. You should install the box with the opening facing out from the wall so all the wires inside are accessible. Like any electrical box, it should be installed so that the edge of the opening is flush with the wall.
