Rectifier diodes are used mainly for only allowing current/voltage to flow in one direction. … Zener diodes work a little differently, they conduct in reverse and can then recover unlike rectifier diodes.

Can you distinguish between Zener diode and rectifier diode using multimeter?

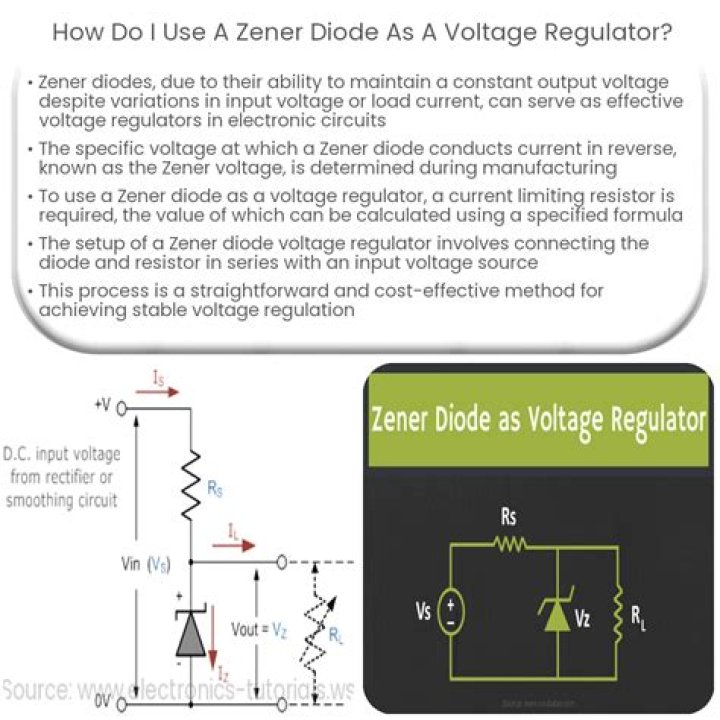

Answer. Although they are both called diodes they have very different uses. In this circuit they have used a 5.1V zener diode, if you were to use a multimeter across Vout then you would measure 5.1V, all the other voltage is dropped across the other components in the circuit, in this case a 1K resistor.

Can a Zener diode be used as a rectifier diode?

Zener diodes are never worked for rectification purposes. Complete step-by-step solution: We do not favour using a Zener Diode in a rectifier circuit because a large maximum peak inverse voltage is needed for a rectifier circuit. Unlike the standard p-n junction diode, a Zener diode has a below peak inverse voltage.

Why Zener diode is used in rectifier?

Unlike the normal p-n junction diode, a Zener diode has a low peak inverse voltage. This is an undesirable property for the rectifier circuit. This is the reason why Zener diodes are not used for rectification purpose but are mostly used in applications that require voltage regulation.

What are applications of Zener diode?

Zener diodes are used for voltage regulation, as reference elements, surge suppressors, and in switching applications and clipper circuits. The load voltage equals breakdown voltage VZ of the diode. The series resistor limits the current through the diode and drops the excess voltage when the diode is conducting.

Which diode is used as rectifier?

Junction diode as a rectifier

An ideal p-n junction diode has zero resistance in forward direction and infinite resistance in reverse bias. This can be used to eliminate the negative cycles in an AC voltage waveform and allow only the positive cycles.

Whats a rectifier do?

A rectifier is a device that converts an oscillating two-directional alternating current (AC) into a single-directional direct current (DC). The simplest rectifiers, called half-wave rectifiers, work by eliminating one side of the AC, thereby only allowing one direction of current to pass through.

How do you identify a Zener diode?

A zener diode can be easily distinguished from regular diodes by its code and breakdown voltage (Zener voltage) which are clearly printed on it. A zener diode can be easily distinguished from regular diodes by its code and breakdown voltage (Zener voltage) which are clearly printed on it.

What is the basic principle of Zener diode?

Zener Diode Working Principle

That is, in forward bias it allows current, and in reverse bias it blocks current. After this voltage has surpassed the breakdown point (in reverse bias), the diode falls in the Zener region, where it conducts without getting damaged. Current in this region is called avalanche current.

What is difference between rectifier and diode?

A diode is an electronic component that allows the current to flow in only one direction. It is a two-terminal semiconductor device. The rectifier is a device that is used to convert an AC voltage to a DC voltage. A diode is used as a switch and a rectifier is used for the conversion of an AC voltage to a DC voltage.

Why are rectifier diodes used?

Rectifier diodes are used in power supplies to convert alternating current (AC) to direct current (DC), a process called rectification. They are also used elsewhere in circuits where a large current must pass through the diode.

How many diodes does a rectifier have?

There are four diodes in the full-wave rectifier circuit. When the AC source voltage is positive, the current flows through D1 to the load and back to the AC source via D2.
