Shock hazards can occur if the meter and test leads are not properly maintained. Arc flash can occur if the meter is not properly rated for the voltage, the meter is exposed to transient voltages outside of its operating conditions, or because of defective parts or components.

What should you not do with a multimeter?

Precautions in Handling and Using a Meter
Do not drop any meter.Do not overload any meter. Do not tamper with precision instruments. Before you connect a meter to a circuit, ensure that the range switch is set to an appropriate position.Carefully check circuit connections before applying power to meters.

Is it safe to use a multimeter on an outlet?

Because you will be performing these tests on a live outlet, ensure safety by holding both meter probes in the same hand. This will prevent shock from passing through your body. Never allow the metal portion of the probes to brush each other or touch, as this can create a dangerous short circuit.

What happens if you touch both ends of a multimeter?

If the multimeter is set to read voltage, it will have a very high-resistance, so if everything is working correctly touching the other lead will not shock you.

Are multimeters safe?

Multimeters. In the hands of a trained technician, the multimeter is both an efficient work tool and a safety device. In the hands of someone ignorant and/or careless, however, the multimeter may become a source of danger when connected to a “live” circuit.

Can you ruin a multimeter?

You can avoid damaging your digital multimeter by anticipating the signal level you’ll measure and presetting the proper signal range on the DMM. Overpowering the digital multimeter can damage the components inside the meter.

How do I use a multimeter to test power?

How to measure ac voltage

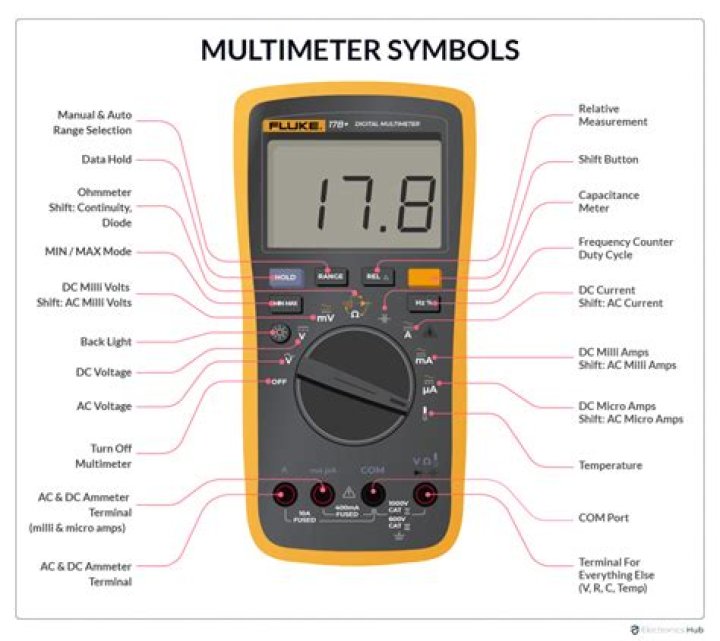

Turn the dial to ṽ. Some digital multimeters (DMMs) also include m ṽ . First insert the black lead into the COM jack.Next insert the red lead into the VΩ jack. Connect the test leads to the circuit: black lead first, red second. Read the measurement in the display.

Is an outlet AC or DC?

When you plug things into the outlet in your house, you don’t get DC. Household outlets are AC – Alternating Current. This current has a frequency of 60 Hz and would look something like this (if you plotted current as a function of time).

What does CAT III 600V mean?

CAT III is for distribution wiring, including main busses, feeders, and branch circuits with permanently installed loads. The highest is CAT IV, which is installation at the origin or at the utility level. Our devices are rated for 600V at CAT IV, for applications between 600 and 750V, they are CAT III rated.

Can you get a shock from a AA battery?

Pretty much a AA battery is only a very low 1.5 V, its almost impossible to be shocked by one directly. Its possible to build a circuit with inductive kickback that will give you shock, that is powered by such a battery, though.

How much voltage can a multimeter handle?

Multimeters are generally not autoranging. You have to set the multimeter to a range that it can measure. For example, 2V measures voltages up to 2 volts, and 20V measures voltages up to 20 volts. So if you’ve measuring a 12V battery, use the 20V setting.

What’s the safest way to use a meter while testing for voltage?

The safest way to use a meter while testing for voltage is to: Rest the meter on something; do not hold it. This test instrument reads current in an electrical circuit.

How do you test if a wire is live without a multimeter?

Build your own tester. For example, get a light bulb and socket, and attach a couple of wires to it. Then touch one to neutral or ground and one to the wire-under-test. If the lamp lights, it is live.

How do you test if a wire is live with a screwdriver?

Touch the tip of the tester screwdriver to the wire you’re testing, being sure to hold the tester screwdriver’s insulated handle. Look at the handle of the screwdriver. If the small neon light in the handle lights up, there is power going to the circuit. Otherwise the circuit is dead.

What happens if you overload a multimeter?

If the multimeter reads 1 or displays OL, it’s overloaded. You will need to try a higher mode such as 200kΩ mode or 2MΩ (megaohm) mode. There is no harm if this happen, it simply means the range knob needs to be adjusted. If the multimeter reads 0.00 or nearly zero, then you need to lower the mode to 2kΩ or 200Ω.

Why did my multimeter spark?

Multi-meter is connected in parallel. But when measuring current ,the leads should be connected firmly and meter is switched ON before energising the circuit under test Else sparks will fly and glass-fuse inside the multimeter will blow due to surge current.
