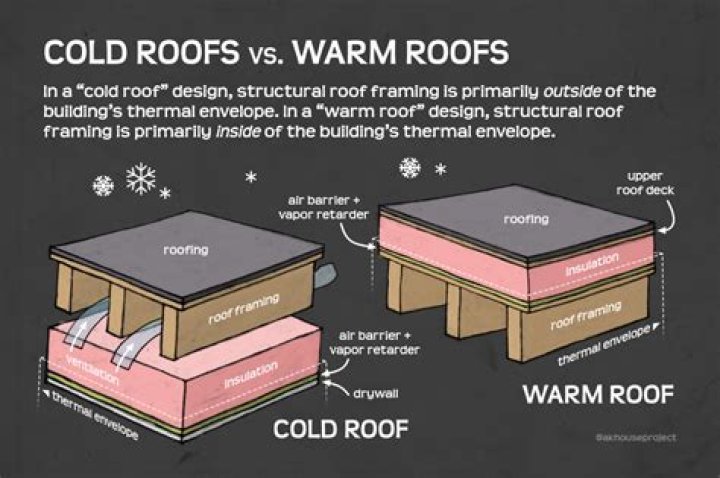

A cold roof in a flat roofing scenario is the one whose thermal insulator is below or inside the structure of the roof. The temperature of the roof structure is almost the same as the outside. The definition of a warm roof on pitched roofs relates to the space between the pitch of the roof and the ceiling.

What is better cold roof or warm roof?

A warm roof is the easiest and most cost effective type of insulation and is an ideal choice for pitched roofs. On some flat roof extensions and balconies, a warm roof would increase the height and isn’t possible, in this scenario you should choose a cold roof insulation.

Does a cold roof need ventilation?

Cold Roofs

A cold roof is where all of the insulation is placed either between and under or completely under the joists or deck. No insulation is on top. In this way the roof itself is kept cold. You only need ventilation in a cold roof.

What is the difference between a warm flat roof and a cold flat roof?

Cold roof: The insulation is within the structure which means the structural elements can become a source of thermal bridging. Some insulation may be required internally to mitigate this risk. Warm roof:The structure is on the warm side of the insulation meaning that there is less chance of thermal bridging.

How do you convert a cold roof to a warm roof?

The correct way to change a cold deck to warm deck.
Block existing ventilation throughout.Take out any insulation that exists below the deck, keeping it here will create interstitial condensation.Fix PiR insulation over the felt. Fit waterproof membrane eg single y membrane.Plasterboard and skim to underside of joists.

What is the purpose of a cold roof?

By creating a constant flow of cold air above the insulation but below the roofing material cold air is allowed to circulate, a cold roof system prevents snow on the roof from melting when the outside temperature is 22 degrees Fahrenheit or colder.

What are the benefits of a cold roof?

Cold roofs have a unique advantage during winter. They prevent ice dams and the leaks which would result from the buildup of snow on the roof. Without a cold roof, the heat generated in the house radiates to all areas, including the attic. The warmth at the attic heats up the roof and melts the snow above.

Does a cold roof need a vapour barrier?

You don’t need a vapour barrier in cold roof systems as that’s exactly what the ventilation is for, it acts to disperse any moisture.

Are cold flat roofs allowed?

Many residential flat roofs have the waterproofing laid directly onto the deck, and any insulation placed above the ceiling. This arrangement allows the deck to become ‘COLD’. Although the Regulations do not prevent the use of cold roof constructions, warm roof constructions are recommended.

Does warm roof need ventilation?

A warm roof is designed to prevent any moisture from forming on cold surfaces in the roof construction. This means that warm roofs do not generally require ventilation, but there should be an Air & Vapour Control Layer (AVCL) or vapour barrier on the warm side of the insulation depending upon the detailing.

What is the best type of flat roof?

EPDM Membranes

Quite possibly the best flat roofing membrane, EPDM is a relatively low-cost flat roof material that offers a number of significant advantages. Clean, straightforward installation, incredible strength, a long lifespan, and a smart finish combine to make EPDM membranes a difficult one to beat.

Does a warm roof need a vapour barrier?

To use EPDM for a warm deck flat roof construction, solid (closed cell) roof insulation such as Kingspan or Celotex should be placed on top of the roof deck, rather than in between the rafters. A vapour barrier will then need to be installed to reduce condensation in the roof structure.

How do you insulate a cold roof?

How do you insulate a flat roof?
Lay 12mm of plywood or OSB board across the timber joists as a base for the flat roof build-up.Install a vapour control layer to reduce the risk of condensation and moisture compromising the flat roof structure.

How much does it cost to insulate a warm roof?

An uninsulated flat roof has a U-Value of around 1.5 W/m2K. When insulating one, you’re aiming for a value of 0.25 W/m2K or less. To achieve this, you should insulate your flat roof with insulation boards totalling around 150mm thickness.

What is a cold flat roof?

A cold flat roof is when insulation is laid between the roof joists and above the vapour control layer and the plasterboard. The space between the insulation and the decking is empty. The flat roof design for a cold roof should allow for at least a 50mm gap between the top of the insulation, and the roof deck above.

Are warm roofs more energy efficient?

We spoke to Warmer Roof in Somerset; they use a timber build for their warm roof and they tell us “Our Warmer Roof is at least 5 times more energy-efficient than traditional glazed conservatory roofs.

What’s a warm roof?

A warm roof is a type of roof construction which has an insulation layer above the rafters, and immediately below its weatherproof membrane. A warm roof construction allows heat to be conserved within a property – without the need for a ventilation system.
