Auger Bits (7″) – Fast wood boring through up to three studs. Screw point tip pulls the bit through for faster boring action. Ship Auger Bits (17″) – Fast, deeper wood boring in large timbers, decks and telephone poles. Screw point tip pulls the bit through for faster boring action.

What is a ship auger bit used for?

Auger drill bits are bits used to drill holes into wood. They are commonly used for boring holes into bulkheads and general timber applications.

What are the different types of auger bits?

There are two types of auger drill bits: the Jennings bit has a spiral without a centre, while the solid-centre bit has a continuous straight central core. The Jennings bit is better at removing drill chips, but is more expensive to produce.

What is Ship auger?

Definition of ship auger

: an auger having a simple spiral body and a single cutting edge with or without a screw on the end of it and without a spur at the outer end of the cutting edge.

Can you use an auger bit with a drill?

What’s the Best Tool to Use for Auger Bits? Low RPM (less than 600), high torque corded or cordless drill are the ideal tool. Bosch Daredevil auger bits will work with any drill brand, however, you can use a Bosch 18V High Torque Impact cordless drill for best results.

What are spade bits?

A spade bit is a wood-boring drill bit that is flat with two sharp lips. The spade bit was invented by the Irwins tool company in 1968 and its design allows for it to scoop material out of a bore-hole quickly.

How do I know which drill bit to use?

The diameter of the hole you drill should be slightly smaller than the diameter of the screw. So, for example, if you’re using a 3.5 mm screw, use a drill bit with a diameter of 3 mm. If you’re using wall anchors as well as screws, the drill bit and anchors should have the same diameter.

How can you tell the difference between drill bits?

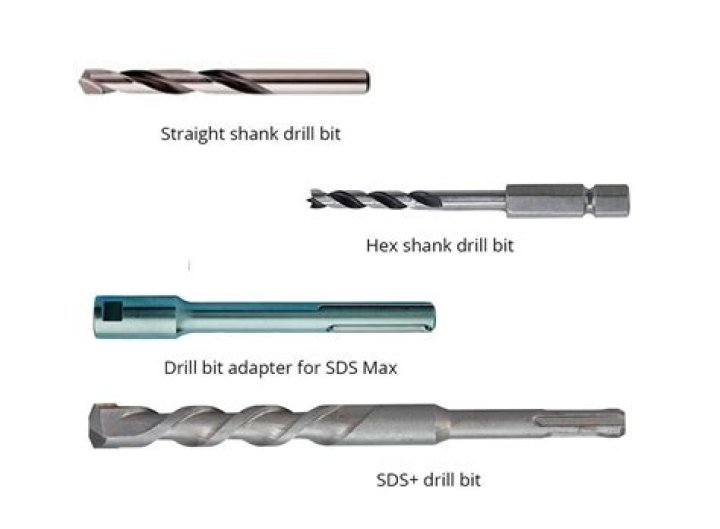

Choosing Drill Bits by Type
Wood Drill Bits: These can be identified by a small, pointed tip at the very end. If you look closely, you can see spurs on each side. Masonry Drill Bits: These bits have a gently sloping tip. Metal Drill Bits: These have a wide-angled point at the end, and they may also be painted black.

What is a Forstner bit?

Forstner drill bits

The Forstner drill bit, named after its 19th-century creator, Benjamin Forstner, is designed to drill a flat-bottomed hole in wood. It has the same tip spur as a brad-point bit for precision drilling, but the body of the bit is designed to drill a flat-bottomed hole.

What’s the difference between an auger and a drill?

They consist of a sharp point on their tip, which aids in the precision of drilling. Typically auger bits have a screw head which makes it easier for them to drill holes in wood. Auger bits are exceptionally old tools that have survived through the centuries to find their place among modern drill bits.

Can you sharpen a Speedbor bit?

You should only sharpen under the cutting edge and on the inside part of the side lip. You can lean the bit backwards and sharpen with the file those two areas. Try to maintain the same angles that were ground on from the factory.

Can wood drill bits be sharpened?

If you have a bench grinder, you can sharpen any drill bit. Afterwards, use a small file to clear out the grooves in the drill bit, so that wood or metal fragments can easily escape.

What is expansive bit?

Definition of expansive bit

: a bit with a cutting blade that can be adjusted to various sizes.

How do you get auger bits unstuck from wood?

How to Remove a Stuck Drill or Auger Bit
Tighten the chuck. Placing gentle pressure on the drill, try to push the bit into the material being drilled, then withdraw it steadily.Pour liquid soap or spray WD-40 into the area around the bit. Remove the drill from the bit. Drill a second hole, very close to the first hole.

Are auger bits good for hardwood?

Auger & Flat wood drill bits

Both these types of drill bits are used for drilling small to medium holes in wood. Their design makes them perfect for boring long, straight holes, good for jobs like mortice locks and latches.
