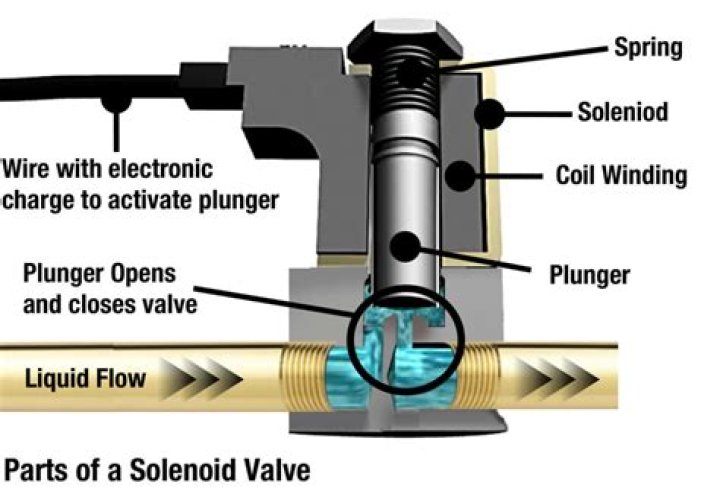

They are often used to replace manual valves or for remote control. Solenoid valve function involves either opening or closing an orifice in a valve body, which either allows or prevents flow through the valve. A plunger opens or closes the orifice by raising or lowering within a sleeve tube by energizing the coil.

What is the main function of solenoid valve?

They are often used to replace manual valves or for remote control. Solenoid valve function involves either opening or closing an orifice in a valve body, which either allows or prevents flow through the valve. A plunger opens or closes the orifice by raising or lowering within a sleeve tube by energizing the coil.

How do solenoids work?

A solenoid works by producing an electromagnetic field around a movable core, called an armature. When compelled to move by the electromagnetic field, the motion of that armature opens and closes valves or switches and turns electrical energy into mechanical motion and force.

How does a valve work?

The simplest, and very ancient, valve is simply a freely hinged flap which swings down to obstruct fluid (gas or liquid) flow in one direction, but is pushed up by the flow itself when the flow is moving in the opposite direction. This is called a check valve, as it prevents or “checks” the flow in one direction.

Why do solenoid valves fail?

Solenoid coil failure can be caused by a number of factors. Applying an incorrect voltage to the coil will cause it to fail and may cause the coil to burn out. Electrical surges or spikes may also damage the coil. Burnt out coils cannot be repaired and will need to be replaced.

Why do you need a solenoid?

Why are Solenoids Important? Solenoids are critical car components since they allow your ignition system to reach the starter motor and, in turn, cause your car to turn on in the first place. Without a solenoid, turning your key wouldn’t start your car at all.

Are solenoids AC or DC?

Solenoids are electromechanical devices that convert AC or DC electrical energy into linear motion. They usually consist of a helical coil wound concentrically around a movable cylinder, called the armature, made from a ferromagnetic material such as iron or steel.

What is called solenoid?

: a coil of wire usually in cylindrical form that when carrying a current acts like a magnet so that a movable core is drawn into the coil when a current flows and that is used especially as a switch or control for a mechanical device (such as a valve)

How do I know if my solenoid valve is working?

The quickest way to test the solenoid valve is to apply a charge directly to it. There are two wires which cross directly above the valve as it lays in the timer that you will touch with a multimeter. This should send a charge onto the valve, and if it is functioning normally, it will open.

How long should a solenoid valve last?

How long does a solenoid last? – Quora. It is expected to last normallyabout 1-3 years. Valves that have to work harder duty condition often have a shorter lifespan — about 1-3 years. Through regular maintenance, users can extend the valve’s lifespan and keep operations on track.

What is the difference between a solenoid valve and a control valve?

Control valves are generally installed over electric valves via a closed-loop regulation to get increased stability. Solenoid valves on the other hand are operated electromagnetically in order to overcome spring pressure and drive the spool action of the rotating coil.

Is a solenoid like a relay?

Solenoids are a type of relay engineered to remotely switch a heavier current. The terms solenoid and relay can often be used interchangeably; however, in the Automotive market, the term solenoid generally refers to a “metal can” type, whereas a relay typically refers to the standard “cube” style relay.
