A GFI, or GFCI – Ground Fault Circuit Interrupter device protects us from receiving electric shocks from faults in the electrical devices we use in our home. It works by comparing the input current on the hot side to the output current on the neutral side.

What is the difference between a GFI and a GFCI?

Technically, GFCI refers to a breaker that protects an entire circuit. This would be a GFCI breaker on your electric distribution panel and will protect multiple outlets. A GFI is a local Ground Fault Interrupter, it is at the outlet and not on the panel.

What is a GFI breaker?

A ground fault circuit interrupter (GFCI) is a specialized outlet with a built-in breaker. These devices are designed to prevent shock in the event an electrical device comes in contact with water. If your home is missing them in areas where electricity is used around water, you need to add them as soon as possible.

What is the purpose of the GFI?

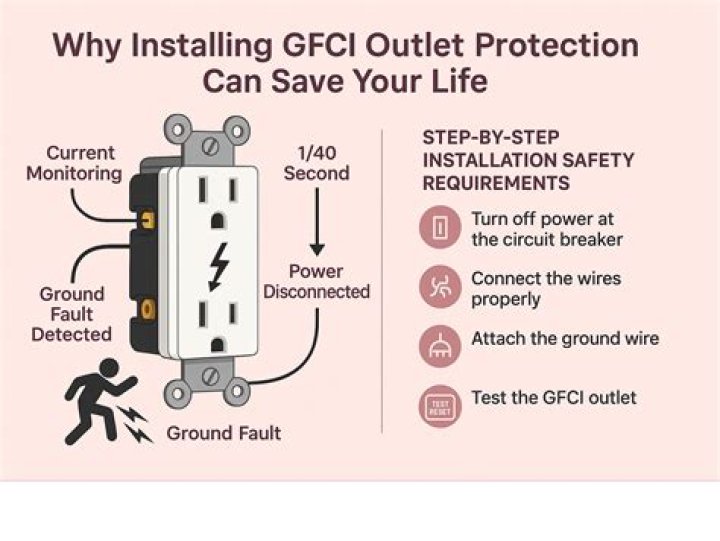

The ground-fault circuit interrupter, or GFCI, is a fast-acting circuit breaker designed to shut off electric power in the event of a ground-fault within as little as 1/40 of a second.

Can I put a GFCI on a switch?

GFCIs receptacles cannot be switched, nor can they be split. Best bet is to use a GFCI breaker in the panel, then you can use regular receptacles that you can split and switch, and everything will be protected.

How do I know if my outlet is GFCI?

To test GFCI outlets, just press in the button marked TEST – doing so should cause a snapping sound, which indicates the outlet was tripped and electricity to the plugs has been cut. You can plug in a small device to test that the outlet has shut off, or use a voltage tester.

What causes GFCI to trip?

If the GFCI detects a ground fault leakage of 5mA it will trip. This leakage is caused by a hot wire touching the ground somewhere on the electrical line such as an appliance or even the outlet itself. This can be caused by water, wires touching, dust or debris, etc.

Is a GFCI the same as an RCD?

A ground fault circuit interrupter (GFCI), or Residual Current Device (RCD) is a type of circuit breaker. A GFCI / RCD on the other hand, protects people from shock and electrocution and is often found in bathrooms or kitchens, but more specifically where electrical devices may be used near sources of water.

Does GFCI need its own breaker?

While a GFCI doesn’t need its own breaker or circuit, it’s likely in a circuit that requires the protection of soil defects.

How many GFCI are in a circuit?

The Standard Number Of GFCI’s On One Circuit

Keep in mind, you only need one GFCI at the beginning of the circuit for GFCI protection for the whole circuit. You might even opt for a GFCI rated breaker instead.

What are the 3 types of GFCI?

Three types of GFCIs are commonly used in homes – the GFCI outlet, the GFI circuit breaker and the portable GFCI.

Does GFCI protect whole circuit?

GFCI circuit breakers protect the entire circuit. GFCI circuit breakers are simple: By installing one in the service panel (breaker box), it adds GFCI protection to an entire circuit, including the wiring and all devices and appliances connected to the circuit.

Do bathroom switches need to be GFCI protected?

The NEC requires that all outlet receptacles in a bathroom be GFCI protected. Outlet circuit must be 20 amps: The outlets in a bathroom should be served by a 20-amp circuit, separate from the lighting circuit, to provide power items such as curling irons, razors, and hairdryers.

Will a GFCI work with a dimmer switch?

GFI (ground fault interrupter) outlets sense amperage imbalances between the hot and neutral wires of an electrical circuit. You can connect a dimmer switch with basic electrical circuit knowledge and the proper tools.

Does garbage disposal need GFCI?

The National Electrical Code (NEC) does not require a garbage disposal to have GFCI protection. GFCI protection for this appliance is optional. The vibration caused by the operation of a garbage disposal can cause electrical connections to separate.

What does GFCI look like?

A GFCI receptacle is easily recognizable. Simply look for the test and reset button on the face of the outlet. When installed, any electrical device that is plugged in will be protected in the case of a ground fault. This also includes any electrical outlets that are connected on the same line.

What to do when an outlet stops working?

If an outlet isn’t working, check your circuit breaker panel. The breaker that is tripped will appear to be between the ‘on’ and ‘off’ position. Flip the switch to off, then back to on. This will reset the circuit and potentially fix your broken outlet.
