The scale for floor plans can be shown in two different ways:
As equivalent measurements, eg 1/8″ = 1′ or 1cm = 1m, “an eighth of an inch represents 1 foot” or “1cm represents 1m”As a ratio eg 1:96 or 1:100, “one to forty eight” or “one to one hundred”

What does scale mean on a floor plan?

A scaled drawing is one that shows the object with accurate size reduction or enlargement by a certain amount and can be measured with a common architectural or engineer scale. A common scale for floor plans is 1/4″ = 1′-0” (one quarter inch is equal to one foot).

What is the scale 1 to 50?

So, if a drawing is at 1:50 in cm, 1cm in the drawing will be equal to 50cm in real life. Similarly, if a drawing is in mm, at 1:200 – one mm unit in the drawing will represent 200mm in real life.

What does a 1:20 scale mean. The same goes for a 1:20 scale, which when used, represents a subject at a size 20 times smaller than its real word dimensions. For example a drawing drawn to a 1:20 scale would require a lot more intricacies than a 1:50 and 1:100 drawing.

What scale should my floor plan be?

Floor plans should be drafted to scale, which means reducing the size of your drawing so the entire space can reasonable fit on a piece of paper or screen. A common scale is 1/4 inch = 1 foot. This same scale should be applied to objects like furniture or exhibit booths that will be included in the floor plan.

A location plan at 1:1000. A site plan at 1:200. A floor plan at 1:100. A room plan at 1:50.

Scale drawing
A full size drawing would be 1:1 (or sometimes 1/1 or ‘one to one’).A half size drawing would be 1:2.A tenth size drawing would be 1:10.A double size drawing would be 2:1.

What is scale example?

Scale is defined as a system or series of marks used for measuring or registering. An example of scale is what someone would use to figure out the length of something. An example of scale is what someone would use to find out how much they weigh. noun. 10.

How does scaling work on plans?

Architectural drawings are done in scales that are smaller than the real size. A scale of 1 to 100 is indicated on a drawing using the code 1:100. This can be interpreted as follows: 1 centimetre (0.01 metre) measured with a ruler on the plan would need to be multiplied by 100 to give the actual size of 1 metre.

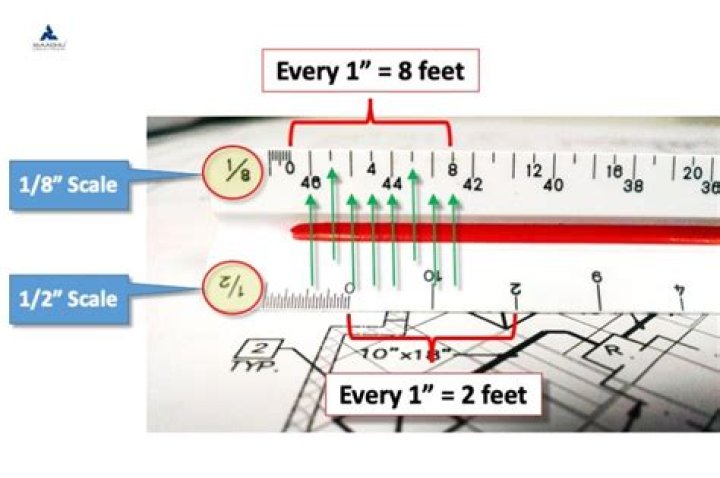

On this scale, each small division represents 2 mm, and each longer bar represents 10 mm. On the 1:75 scale, the intermediate is not numbered, but it is there at, again, 500 mm. The 1, 2, 3, etc are metres, and each small division is 5 mm. You just have to use the scales to get a feel for the divisions.

How do you convert actual size to scale?

To convert a measurement to a larger measurement, simply multiply the real measurement by the scale factor. For example, if the scale factor is 1:8 and the measured length is 4, multiply 4 × 8 = 32 to convert.

What does a 1/5 scale mean?

A 50mm line is to be drawn at a scale of 1:5 (ie 5 times less than its original size). The measurement 50mm is divided by 5 to give 10mm. A 10mm line is drawn.

What does a 1/4 scale mean?

A 1/4″ scale means that each 1/4″ (inch) on the plan counts for 1′ (feet) of actual physical length. To scale a blueprint in imperial units to actual feet. multiply the measurement on the drawing (in inches decimal equivalent) with the denominator.
