As an eyelid opens, the eye can see, meaning the switch is on. When the eyelid closes, we can’t see, meaning the switch is off. This metaphor works for electric switches, light switches and (modern) fuses.

Which is on and off on a toggle?

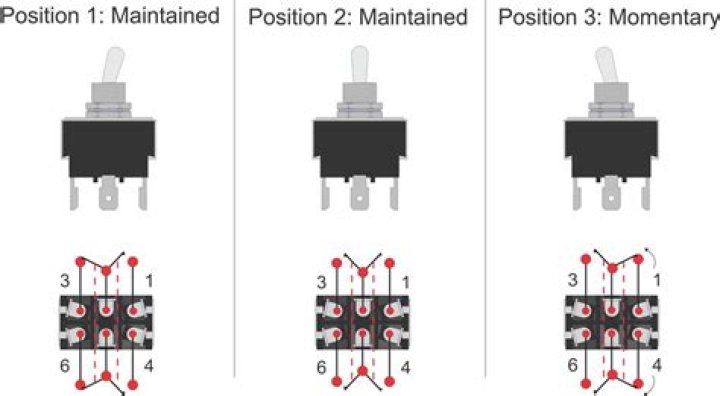

On-off-on toggle switches are variations of the on-on design. They add a third, neutral off position in the centre. In (on) off (on) switches, the off position is the default resting position and both on positions will click back to this once released.

Is the I or O on or off?

The line symbol means “power on” and the circle symbol means “power off”. The presence of both (I/O) on a push button means the switch toggles the power.

The typical electrical wall switch is either in the on state (i.e. electrical contacts closed) or off state (i.e. electrical contacts open). This is known as a toggle switch because it is just as normal for it to be in either state. A doorbell button is very different from a toggle switch.

What is an on/off switch?

on-off switch in British English

(ˈɒnˈɒf swɪtʃ) noun. a switch or button (on an electrical appliance, etc) which has an ‘on’ position and an ‘off’ position.

In the US, Canada, European countries, Russia, etc., it is usual for the “on” position of a toggle switch to be “up”, whereas in many other countries such as the UK, Australia, New Zealand (Commonwealth countries) and Ireland, it is “down”.

Is there power to a light if the switch is off?

Power to the light box, and a loop to the switch. Even with the switch off, there are live wires at the light. You should be just fine with the light switch turned off. If the light switch is not in close proximity to the socket where you will be working, place a sign over it or tell family members to not touch it.

Is power on the circle or the line?

How do I tell which is actually ON and which is OFF? IEC 5010, the power on-off symbol (line within a circle), is used on buttons that switch a device between on and fully off states. IEC 5009, the standby symbol (line partially within a broken circle), indicates a sleep mode or low power state.

A toggle button allows the user to change a setting between two states. You can add a basic toggle button to your layout with the ToggleButton object. Android 4.0 (API level 14) introduces another kind of toggle button called a switch that provides a slider control, which you can add with a Switch object.

What is on and off on a rocker switch?

A rocker switch may have a circle (for “on”) on one end and a horizontal dash or line (for “off”) on the other to let the user known if the device is on or off. Rocker switches are used in surge protector s, display monitors, computer power supplies, and many other devices and applications.

What are the three types of toggle switches?

Toggle Switches are mechanical switches with a lever or mechanical handle for operation. They come with lever positions in the versions of SPST, SPDT, DPST, and DPDT. With different ratings and styles, they are widely used across different applications.

Which way is off on a toggle switch?

The direction which represents “on” also varies by country. In the USA and Canada and Mexico and the rest of North America, it is usual for the “on” position of a toggle switch to be “up”, whereas in many other countries such as the UK, Ireland, Australia, and in New Zealand it is “down.”

(1 or | means on.) IEC 60417-5008, the power-off symbol (circle) on a button or toggle, indicates that using the control will disconnect power to the device. (0 or ◯ means off.) IEC 60417-5009, the standby symbol (line partially within a broken circle), indicates a sleep mode or low power state.

How does on off switch work?

Electric circuits work when electricity can move in a continuous loop. The electricity cuts off once the circle is broken. This is where the switch comes in. A toggle on/off circuit breaks the current when it is off.

What is normally closed sensor?

When your sensor is ‘Normally Closed’ (NC) this means your output is OFF when the target is present (output is ‘on’ in its normal state).

What is the difference between on off on and on none on?

“On-Off-On” indicates the switch can rest in a middle position between connections; “On-None-On” indicates there are only two rest positions, making one connection or the other.
