Frost-free hydrants operate in freez- ing temperatures because when fully shut off, water in the riser pipe drains out into the bottom of the hole through a bleed off valve leaving nothing to freeze above the frost line. Partially closing the handle doesn’t allow water drainage, and the hy- drant may freeze.

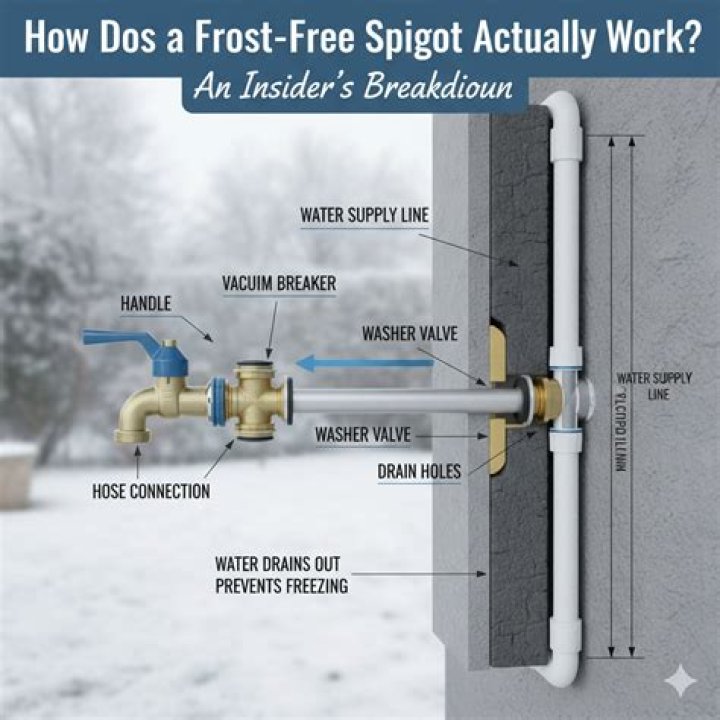

How does a frost free water valve work?

When you shut down the water on a frost-free faucet, the water stops behind the valve, which is set further back inside the home. This indicates the water won’t freeze since it remains where the interior air temperature level is warmer.

How does an outdoor water hydrant work?

The raised plunger allows water to flow through the valve body and up the stand pipe. In addition, raising the plunger closes off the drain port. The raised plunger closes off the drain port and allows water to flow through the valve port, past the plunger.

How do you winterize a frost-free hydrant?

The Most Basic Method for Winterizing Outdoor Faucets
Disconnect the hose from your faucet. This step is often forgotten but will prevent you from ruining a perfectly good hose.Locate and turn off your water shut-off valve. Drain the outdoor faucet pipe. Drain the inside shut-off valve. Repeat.

Are all yard hydrant frost-free?

The frost line varies from 0 to 8′ depending on the maximum frost depth in the region. The bottom valve assembly on a yard hydrant cannot withstand freezing temperatures. It may crack or burst if frozen causing an underground water leak, which is a massive headache to fix.

Can frost-free faucet freeze?

It does this through means of a long valve stem that reaches inside the home where it remains warm, and a self-draining design that prevents water from collecting in the faucet, where it can freeze. Despite this, it is possible for a frost-free faucet to freeze and rupture in extreme cold.

How cold is too cold for outdoor faucet?

When temperatures dip to 28 degrees or below, and the outside faucets freeze, ice can form in the water supply pipes that lead to those exposed outdoor faucets. If your outdoor faucets aren’t properly prepared for winter, water damage from frozen pipes may occur.

Why does my frost-free hose bib leak?

If the faucet leaks from around the handle just when the water is turned on, the stem packing may be leaking. In some cases, you can fix this by simply tightening the retaining nut that’s under the handle. Remove the screw in the center of the handle and pull the handle off. Try tightening the nut slightly (Photo 1).

How do I know if my outdoor faucet is frost-free?

A frost-free faucet has a long stem and turns off the water well inside the wall, keeping the faucet from freezing. A properly installed frost-free faucet will have a slight downward pitch which allows water to drain out when the faucet is shut off.

What does a frost-free hose bib look like?

A frost-free hose sillcock or hose bib has a stem that is 6 to 12 inches long. It prevents cold weather from freezing your pipes because the stem washer & seat valve reside inside your house. As an added benefit the anti-siphon stops water or other liquids from being siphoned back into your water supply.

How deep do you bury a yard hydrant?

A 6′ bury connection or hydrant hole is usually 7′ deep, 3′ wide at the bottom and flared out to about 6′ wide at the top so soil is stable and you don’t get trapped at the bottom.

Can a yard hydrant leak underground?

Water leaks from below ground level when the hydrant is on. A small leak may be the result of a leak at the drain hole. Replace the plunger if it is old and worn. See Operating Pipe Assembly Removal instructions.

Should outside faucets be left open in winter?

Leave the hose bibb open all winter long. Although it is unlikely, if your shutoff valve leaks and allows water to reenter the system it will not accumulate in the pipes. If you have questions about winterizing your pipes or checking your furnace before the winter begins, give us a call.

Do you leave faucets open after winterizing camper?

Always leave at least one faucet open, so as not to build up excessive pressure in the water system. Replace the water heater and drain line caps or plugs. (All drain plugs should now be tightly in place.) Step 6: To keep the sink drain traps from freezing, pour three cups of non-toxic RV antifreeze down each drain.

Do you have to winterize yard hydrant?

To prevent freezing during the winter months, it is essential that the hydrant reservoir be evacuated to ensure proper drainage of the standpipe. Therefore, for winter use, remove the hose and back- flow preventer, if used, using the quick disconnect supplied.
