As you may assume from the name, an Air Switch is a switch which is activated by air. A push button can be used to instigate a “puff” or “sip” of air which travels along a length of PVC tubing and activates the air switch. The air switch will turn a device on or off.

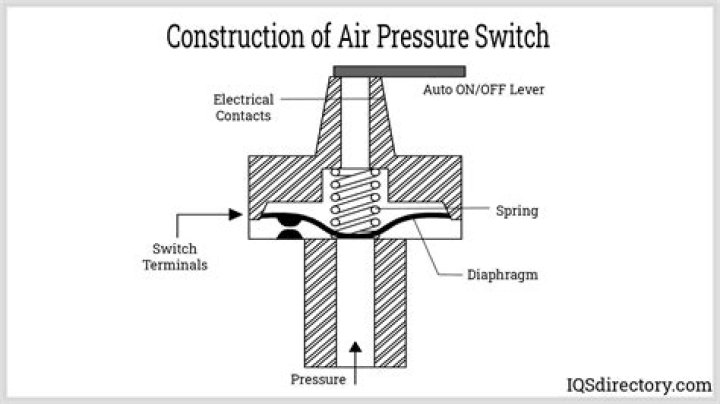

How does disposal air switch work?

A garbage disposal air switch is a type of pressure or plunger control knob that activates a garbage disposal by pushing a burst of air through a plastic or vinyl tube to a control unit mounted under a sink. These air switches do not rely upon electricity and thus permit mounting on counter or sink surfaces.

How does a hot tub air switch work?

Air switches for hot tub control systems that use air buttons and air hose to activate the air switch in the spa pack which turns the pulse of air into an electrical signal.

How do you bypass the air switch on a garbage disposal?

Make sure that the disposal switch is in the “OFF” position. Gently press the red button in to reset garbage disposal. If it does not stay in (retracted), wait ten minutes and try again. Turn on a cold stream of water and turn the disposal switch to “ON” position, the disposal should now run again.

Where do you put an air switch?

We normally place it right next to the faucet itself. This eliminates an electrical switch from being placed on the wall, where it can clutter up the look of your backsplash. And it works great with island sinks.

Why is it called an air switch?

Air Switches are part of our product range at Herga, they are very useful devices and are often selected for use within wet environments. The term “air switch” can be used to refer to the push button switch or the actual air which is connected to the electrical circuit.

Are air switches safe?

There is also still a risk of electrical shock to consider with a garbage disposal air switch. The puff of air might activate the unit, but you must use a grounded outlet to supply power to the appliance. Failing to do so could cause current-based injuries by touching the sink or countertop when it is operating.

How do you test an air switch?

With air applied to the pressure switch, place one lead of the ohm meter to one of the loose wires, and the second lead to the second loose wire. The air pressure switch should close when air is applied. If the switch closes, the ohm meter will read zero ohms, indicating the air pressure switch is good.

Can air switch get wet?

The air activated switch mounts to the sink or countertop; water can get into the power module, posing a fire hazard. Water can get into the power module, posing a fire hazard.

What is a spa Air switch?

Many air switches are used to control various functions of hot tubs or spas. The air switch assembly has an pneumatic push button located spa side. and a pneumatic air switch located in the spa’s controller. There is a piece of air tubing that leads from the push button to the switch.

Why do garbage disposals have air switches?

If the switch were installed near the sink, exposure to water and other liquid, with the potential of a shock hazard! Using a disposal air switch you remove the risk of electrical shock because there is no current at the point of actuation.

How do you test a garbage disposal air switch?

Garbage Disposal Push Button

To determine where the failure is happening, follow the instructions below: The operator can press on the air button assembly and listen for a ‘click’ sound in the air switch. If the ‘click’ happens, then the push button is sending enough air to trigger the air switch.

Are garbage disposal Air switches safe?

Safety – First and foremost, air switches are very safe. Even though the control box/air switch is plugged into an electrical outlet under the sink, there’s no electricity at the point of contact with the countertop garbage disposal button. Thus, reducing the risk of electrical shock.

How do I connect an air switch?

How to Install an Air Switch
Drill a hole in the counter. Determine the location that is most convenient for the switch. Attach Hose and Slip Air Switch into Counter. Attach the hose to the switch. Twist the Nut onto the Air Switch. Attach the Hose to the Relay and Plug Everything In. Stand Back and Enjoy the View.

Do you need an air gap with a garbage disposal?

When there is a garbage disposal installed, the dishwasher drain line should run down from the air gap or high loop and connect to a side nipple on the disposal, where it connects with a hose clamp. Do not bypass the garbage disposal if it is present.

What is airflow switch?

Monitors Flow in Ducts with Contact Output and Local LED Indication Air Flow Switch is designed to monitor air flow in ducts. Includes a mounting bracket for quick duct mounting. Applications include fan monitoring, filter monitoring, and air handlers.

Do all garbage disposals have a switch?

Be aware that most types of disposals require a switch adjacent to the sink to control the outlet—the electrician should wire for this, too. Note: Batch-feed disposers don’t require a switch because they start when you insert and turn a special drain plug.

What is an InSinkErator air switch?

A convenient alternative to a wall switch, the stylish SinkTop Switch™ from InSinkErator® is air-activated and easily mounts to the sink or counter top. The SinkTop Switch is for use with all disposers (must have AC power below sink.)
