The answer to the question how many outlets on a 20 amp circuit is ten outlets. Always comply with the 80% circuit and breaker load rule, allowing a maximum load of 1.5 amps per receptacle. Remember that your circuit, wire sizes, and outlets must be compatible to avoid overheating and electrical hazards.

What is code for outlets in kitchens?

In kitchens, electrical outlets should be placed no farther than 48 inches apart, so that no point on the countertop is more than 24 inches away from a receptacle. Any countertop 12 inches wide or more should have an outlet on the wall behind the countertop.

How many kitchen outlets can you have on one circuit?

One rule of thumb is to assign a maximum draw of 1.5 amps to each receptacle, which allows for 10 receptacles on a 20-amp circuit.

Can kitchen outlets be on same circuit?

GFCI-Protected Small Appliance Circuits

Why: The 20 amps are required (vs. 15 amp) for the higher power requirements found in kitchens. Think toaster ovens, blenders, and mixers. The “two” part of this requirement spreads out the coverage area, though not the total load, as both can be on the same circuit.

Should kitchen outlets be 15 or 20 amp?

It’s recommended that you use 20-amp outlets to power your kitchen appliances properly. The other most common type of electrical outlet is the 15-amp outlet. If the outlet is not 20 amp, there’s a good chance it’s providing a 15 amp circuit.

How many outlets do you need in a kitchen?

The National Electrical Code (NEC) requires that kitchens have at least two separate 20-amp, 120-volt circuits for counter-top outlets, which must also be no more than 4 feet apart. If you’re remodeling, consult your electrician and decide where your appliances will go during the planning phase.

How many GFCI do you need in a kitchen?

You only need one GFCI if it’s installed as the first outlet in the circuit and wired properly. Every outlet in the kitchen was required to be protected by GFCI.

Does a fridge need a 20 amp circuit?

Refrigerator Circuit

A modern refrigerator requires a dedicated 20-amp circuit. You may currently have a smaller refrigerator plugged into a general lighting circuit, but during any major remodeling, install a dedicated circuit (120/125-volts) for the refrigerator.

How far can you run 12 gauge wire on a 20 amp circuit?

You can run a 12 gauge wire up to 70 feet on a 15 amp circuit. That number drops to 50 feet if you run 12 gauge wire on a 20 amp circuit.

How many outlets and lights can be on a 20 amp circuit?

Maximum Lights Per Circuit

Technically, you can install 13 outlets or lights on a 20-amp CB, but you can only put ten lights per circuit due to the 80% rule of maximum continuous load.

How many amps does a dishwasher need?

Household dishwashers are expected to be ranging from 10 to 15 amperes. Therefore, the circuit where dishwashers should be attached will range from 15-20 amps.

How far does an outlet have to be from a kitchen sink?

Kitchen Outlets

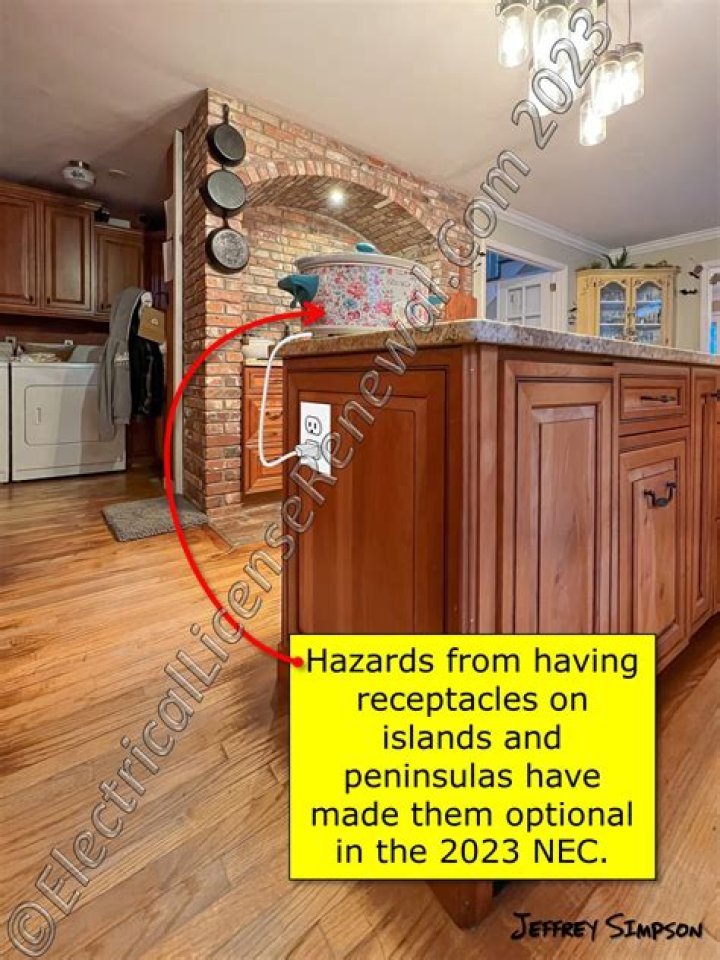

This applies even if there isn’t a nearby sink, such as on a bar or island. Additionally, no point on the wall should be farther than 24 inches from an outlet in either direction (meaning 4 feet total between outlets), so you must have an outlet within 2 feet of the kitchen sink.

What happens if you put a 15 amp GFCI outlet on a 20 amp circuit?

No – it does not. Per the UL Safety Standards for 15 amp receptacles and 15 amp GFCI receptacles, 15 amp receptacles must be designed to allow for the pass-through of 20 amp circuits, so wiring a 15 amp receptacle on a 20 amp circuit has no impact here.

Do you need GFCI in kitchen?

Kitchens: All receptacles serving countertop areas and any receptacle within 6 feet of a sink must have GFCI protection. Also, the receptacle supplying a dishwasher should be GFCI-protected.

Does a 20 amp circuit need a 20 amp outlet?

As long as the wire connecting the two devices has a rating meeting or exceeding 20 amps, (12 awg or larger) it is acceptable to install a 20 amp receptacle on a 20 amp circuit breaker.

What needs a 20 amp circuit?

Large consumers, especially kitchen appliances, such as microwaves, blenders and toasters, need a dedicated 20 amp circuit, to ensure a constant energy flow, which means they cannot share the circuit with other devices.
