The answer to the question how many outlets on a 20 amp circuit is ten outlets. Always comply with the 80% circuit and breaker load rule, allowing a maximum load of 1.5 amps per receptacle. Remember that your circuit, wire sizes, and outlets must be compatible to avoid overheating and electrical hazards.

How many 15 amp receptacles can be on a 20 amp circuit?

The use of multiple 15 amp receptacles on a 20 amp circuit is permitted. A duplex receptacle is considered as multiple receptacles and is therefore permissible to use as the single, or one of several, multiple type receptacles on the circuit.

Can you put 15A outlets on a 20A circuit?

To directly answer your question, having two(or more) 15A outlets on a single 20A circuit with 12awg wire(the appropriate size for 20A circuit) is generally safe, and pretty common. A single outlet will not allow more than a 15A device to be plugged in, ensuring the outlet itself is not overloaded.

Can you daisy chain outlets?

You can daisy-chain a GFI just like a regular receptacle, with one difference. The incoming wires must connect to the “line” terminals while the outgoing wires must connect to “load.”

How far can you run 12 gauge wire on a 20 amp circuit?

You can run a 12 gauge wire up to 70 feet on a 15 amp circuit. That number drops to 50 feet if you run 12 gauge wire on a 20 amp circuit.

Can I plug anything into a 20 amp outlet?

Yes. In North America, 20-amp outlets are designed to fit either 15-amp or 20-amp plugs. And it’s perfectly safe to run an appliance on a circuit rated for higher current.

When should I use 20 amp outlets?

Large consumers, especially kitchen appliances, such as microwaves, blenders and toasters, need a dedicated 20 amp circuit, to ensure a constant energy flow, which means they cannot share the circuit with other devices.

How many outlets can be on a breaker?

Technically, you can have as many outlets on a 15 amp circuit breaker as you want. However, a good rule of thumb is 1 outlet per 1.5 amps, up to 80% of the capacity of the circuit breaker. Therefore, we would suggest a maximum of 8 outlets for a 15 amp circuit.

How many outlets can you run on a 12-2 wire?

For general use receptacles, In commercial buildings it is limited to 180VA per duplex or single receptacle, therefore on a 12/2 Romex cable not otherwise subject to ampacity derating and protected by a 20 amp circuit breaker, that would allow a maximum of 13 receptacles.

What size wire do I need to run 400 feet?

Example calcuation 2 – Copper Wire, 3 Phase power

Cable run: 400 ft.

Does a fridge need a 20 amp circuit?

Refrigerator Circuit

A modern refrigerator requires a dedicated 20-amp circuit. You may currently have a smaller refrigerator plugged into a general lighting circuit, but during any major remodeling, install a dedicated circuit (120/125-volts) for the refrigerator.

Can I use 14 gauge wire on a 20 amp circuit?

Originally Answered: Is 14 gauge wire OK for a 20 amp circuit? NO. 14 gauge is prohibited from use in any section of a 20 amp circuit. You need to use 12 gauge wire for 20 amp circuits.

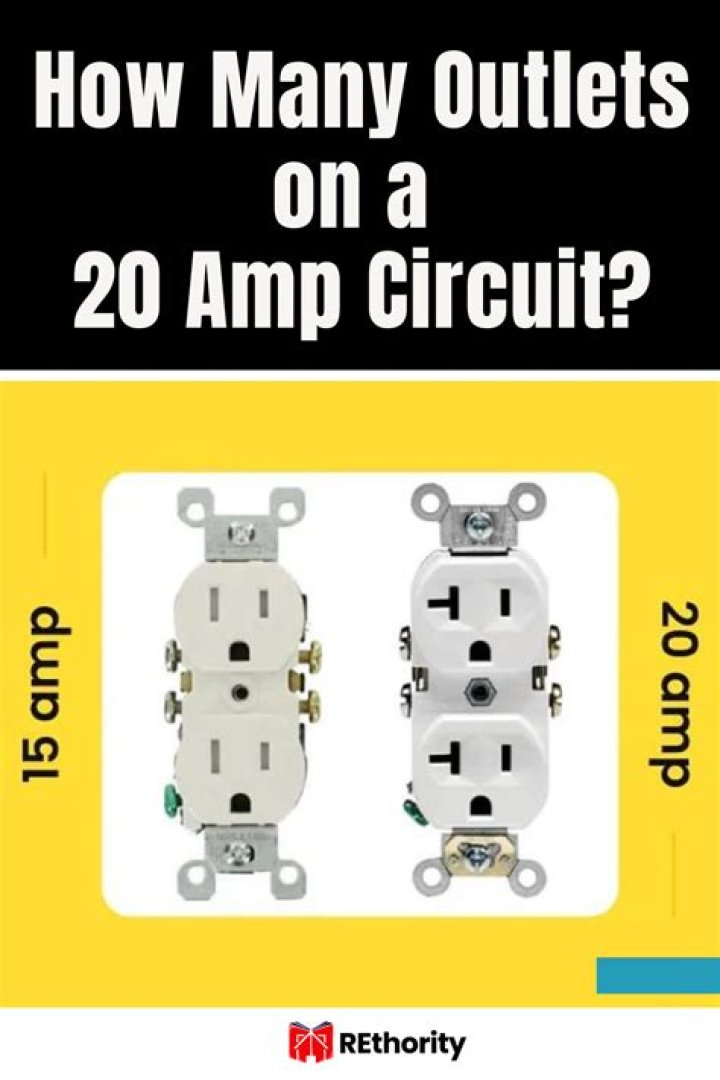

Why do 20 amp outlets look different?

Because 15-amp receptacles can be used with 20-amp circuits, most of the outlets you see in American homes are the standard 15-amp variety, with two slots and a U-shaped grounding hole. 20-amp receptacles have a horizontal slot branching off one of the vertical slots.
