The very high current or amperage a motor draws when power is first applied, due to low counter emf. It is usually five to six times the running load amperage.

How much is locked rotor current?

It is usually in the range of 3 to 5 times rated full load current of the motor.

Is Locked rotor amps the same as starting current?

The locked rotor current and the starting current of a motor are one and the same. It is the starting current drawn by a motor when full nominal voltage is applied to its terminals.

Is Locked rotor the starting current?

The term Locked rotor current usually used in blocked rotor condition. It is the current drawn by the motor when the load applied is heavier such that the motor stops rotation. The starting current is the initial current flow into the motor which is usually very high and controlled by using starters.

How much higher are locked rotor amps than running load amps?

Summary: What causes locked rotor amps on a motor to be approximately 5X higher than the regular amps when the motor is running? When an electric motor first starts running, the motor will draw approximately 5X the normal amp draw of the motor for approximately the first half second that the motor runs.

How do you calculate lock rotor current from nameplate data?

Out in the field, the rule of thumb for locked-rotor current is six times the full-load amperes marked on the motor’s nameplate. The result of multiplying the full-load amperes of a motor by six might be close to the actual locked-rotor current or the result might not be anywhere near the actual locked-rotor current.

What is locked rotor withstand time?

For motors with starting time more than 20 secs and upto 45 secs at minimum permissible voltage during starting, the locked rotor withstand time under hot condition at highest voltage limit shall be at least 5 secs.

How do you calculate lock rotor current?

To find LRA and starting kVA enter nominal operation voltage (such as 120 or 240), HP value, code letter from the nameplate label, and hit “Calculate” button. The general equation for single-phase devices is the following: LRA=1000*(kVA/HP)/Voltage. Note that this defines starting current at full nominal voltage.

How do you lower lock rotor current?

RE: Lower locked rotor current

Altering the rotor design to a higher resistance design, will reduce the start current and increase the start torque, but this will also increase the full load slip.

Is LRA the same as starting amps?

see less LRA – Locked Rotor Amps: The current you can expect under starting conditions when you apply full voltage. It occurs instantly during start up. RLA – Rated Load Amps: The maximum current a compressor should draw under any operating conditions.

Why is starting current high in a motor?

This high current in the rotor will create its own magnetic field which opposes the main stator magnetic field, this weakens the stator magnetic field so the back EMF in the stator will drop and the supply voltage will be much higher than the stator back EMF and so the supply current increases to a high value.

What is locked rotor amps used for?

The very high current or amperage a motor draws when power is first applied, due to low counter emf.

What is the difference between FLA and LRA?

FLA: Full-Load Amps: Amount of amperage drawn when motor is working at rated horsepower. LRA: Lock-Rotor-Amps: A motor draws a surge of amperage when it starts to get the rotor rotating and to achieve the rated horsepower. This amperage draw is approximately 6 x FLA of the rated motor for six to eight seconds.

What does LR mean on a motor?

I wanted to understand the effect of “Locked Rotor” (LR) ratings of a motor and its effect in sizing a generator by reviewing its surge capability.

What is locked rotor current of induction motor?

Locked rotor current is basically the current drawn by the motor at its rated voltage when its rotor is kept stationary or in other words rotor is not spinning or rotating. So when we start a motor, its rotor is already at rest. This means, starting current and locked rotor current should be same.

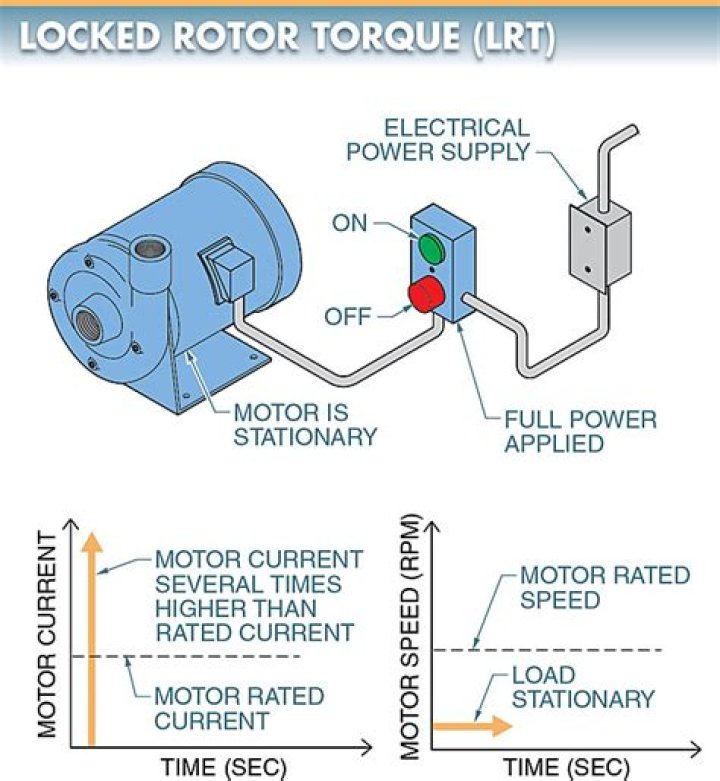

What is locked rotor torque?

The locked rotor torque is the torque the electrical motor develops when its starts at rest or zero speed. The magnitude of the locked rotor current is determined by motor horsepower and design characteristics. Normally, it will be six to seven times of the motor full-load current.
