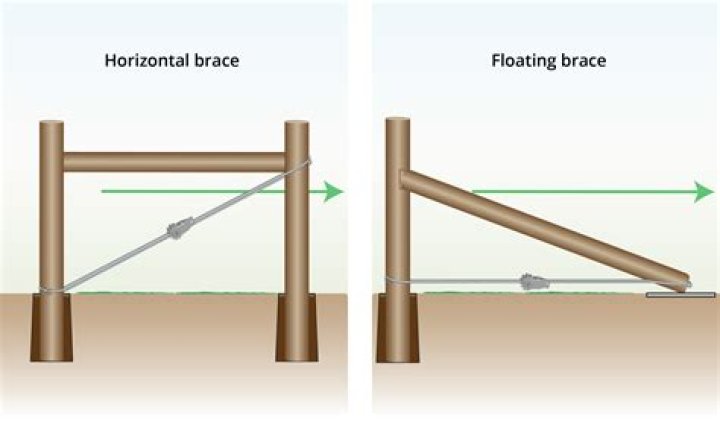

How do you calculate the diagonal of a brace?

Proper height for attaching the diagonal brace to the vertical post is calculated by dividing the length of the diagonal brace by 2.5 (e.g. 96 inches ÷ 2.5 = 38.4 inches mounting height).

Is a rebate joint as strong as a butt joint?

The advantage that the shoulder joint has over the butt joint is its strength as the rebate provides a much greater fixing area and, once glued, forms a solid corner. If you need even more strength in your joint you can combine the adhesive with screws, nails or even dowels that will further reinforce your corners.

How do you calculate carpentry angles?

In carpentry, you usually do away with trigonometric functions to find angles. Instead, you simply use two legs of a triangle to measure and mark the angle. Call one leg the rise, designating the height of the triangle, and the other leg the run, or the length of the triangle.

How do you determine the angle to cut wood?

The formula involves dividing 360 by the number of sides to calculate the corner angle. Then divide it by two to get the miter angle. If you’re making a five-sided project with all sides equal, you divide 360 by five to get 72 degrees. So each joint or corner forms a 72-degree angle.

How do you find the angle of bracing?

Identify whether the level touched the front or back of the shelf in step 2. If the level touched the front of the shelf, the brace must be less than 90 degrees. Subtract 16.66 from 90, giving 73.33 degrees. If the level touched the back of the shelf, the brace must be more than 90 degrees.

What angle is best for bracing?

Bracing is most efficient when placed at angles between 30° and 60°. With steeper bevels, the end connections can be cumbersome. Any brace configuration can be used to make up a horizontal bracing system, as long as a complete load path is available to transfer the load into the lateral load resisting system.
