Plateau pressure is thought to reflect pulmonary compliance and can be measured by applying a brief inspiratory pause after ventilation. High peak pressure with normal plateau pressures indicates increased resistance to flow, such as endotracheal tube obstruction or bronchospasm.

How do you calculate plateau pressure?

Airway pressure = pressure in the circuit which exists while there is flow. Plateau pressure = the relationship between volume and compliance, in the absence of flow. Compliance = volume divided by pressure.

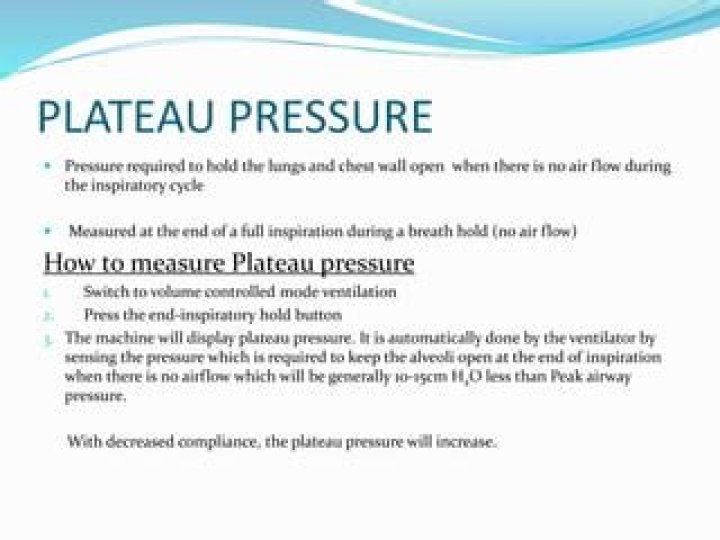

How do you measure plateau pressure on a ventilator?

Plateau pressures are measured at the end of the inspiratory phase of a ventilator-cycled tidal volume. The ventilator is programmed not to allow expiratory airflow at the end of the inspiration for a set time, typically half a second.

What is normal plateau pressure?

What are plateau pressure normal values? The ARDSnet.org protocol recommends a goal of keeping the plateau pressure less than or equal to 30 cm H2O.

Can we measure plateau pressure during pressure support?

Some suggestions can be taken into account to properly measure Pplat during PSV: Pplat has to be flat, with a steep increase or decrease or no change from “normal” airway pressure tracing. Maintain the hold for 2-3seconds. Flow has to be 0 during PPlat.

Can plateau pressure be higher than peak?

Yes. In pressure-regulated modes of ventilation, plateau pressures can be higher than peak pressures if inspiratory efforts of the patient generate larger tidal volumes and significantly negative pleural pressures.

What is a normal PIP on ventilator?

PIP: Total inspiratory work by vent; Reflects resistance & compliance; Normal ~20 cmH20 (@8cc/kg and adult ETT); Resp failure 30-40 (low VT use); Concern if >40. Pplat-PEEP: tidal stress (lung injury & mortality risk). Target

What is the difference between PIP and PEEP?

The difference between PEEP set and the pressure measured during this maneuver is the amount of auto-PEEP. PIP = peak inspiratory pressure. As illustrated here, the measured auto-PEEP can be considerably less than the auto-PEEP in some lung regions if airways collapse during exhalation.

What does plateau pressure tell you?

Plateau pressure is thought to reflect pulmonary compliance and can be measured by applying a brief inspiratory pause after ventilation. High peak pressure with normal plateau pressures indicates increased resistance to flow, such as endotracheal tube obstruction or bronchospasm.

Is minute volume and minute ventilation the same?

Minute ventilation (or respiratory minute volume or minute volume) is the volume of gas inhaled (inhaled minute volume) or exhaled (exhaled minute volume) from a person’s lungs per minute. It is an important parameter in respiratory medicine due to its relationship with blood carbon dioxide levels.
