What is a metal oxide resistor?

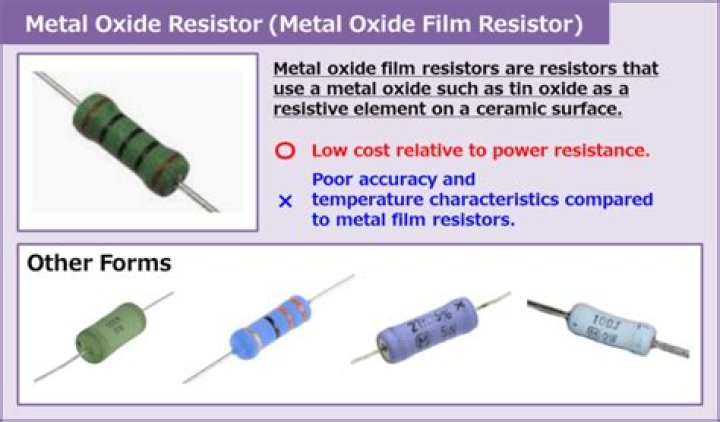

Metal-oxide film resistors are fixed value, axial resistors. They are made of ceramic rod that is coated with a thin film of metal oxides, such as tin oxide. Metal oxide film resistors must not be confused with metal oxide varistors, made of zinc oxide or silicon carbide.

What are metal oxide film resistors used for?

The metal oxide film resistor is a type of fixed resistor, which uses metal oxide film as the resistive element to limit the flow of electric current to certain level.

Are metal film resistors good?

Metal film resistors have good characteristics for tolerance, stability, and TCR. Furthermore, the resistors feature low noise properties and a high linearity because of a low voltage coefficient.

What is metal oxide film?

An oxide film is normally a thin layer deposited on the surface of a metal which has undergone an oxidation reaction from air or moisture surrounding the material. These oxide films are naturally produced in highly reactive materials from the top of the galvanic series.

What are the 4 types of resistors?

Types of Resistors
Fixed Value Resistors. These are the predominant type of resistor configuration, and as the name suggests, they have a fixed resistance value. Variable Resistors. Resistor Networks. Carbon Film Resistors. Metal Film Resistors. Wirewound Resistors. Metal Oxide Resistors. Metal Strip Resistors.

How many types of resistor are there?

Most types of resistors are linear devices that produce a voltage drop across themselves when a current flows through them There are two basic types of resistors with linear properties namely fixed resistors and variable resistors.

What is a foil resistor?

Foil Resistors

A foil resistor is produced using a thin piece of photoetched resistive material. This etching is used to produced the desired resistance value. Due to the great stability of foil designs, Current Sense resistors commonly use this construction.

Are metal oxide film resistors inductive?

Metal film resistors are trimmed to value by having a spiral track cut through the resistive film – they can be extremely inductive! For best pulse performance – overvoltage for a short period/low inductance, carbon film +- 20% types are best – no spiral track to flash across.

How do metal oxide varistors work?

When exposed to high transient voltage, the MOV clamps voltage to a safe level. A metal oxide varistor absorbs potentially destructive energy and dissipates it as heat, thus protecting vulnerable circuit components and preventing system damage. Varistors can absorb part of a surge.

What is the best type of resistor?

Between the three types of resistors based on composition, carbon-composition resistors, carbon-film resistors, and metal-film resistors, in overall performance, metal-film resistors are the best, carbon-film the next best, and carbon-composition resistors last.

What is better carbon or metal film resistors?

Metal film resistors produce less thermal noise than carbon composition resistors. Metal film resistors also typically have a much lower inductance/capacitance than carbon comp resistors so they (metal film) work better at higher frequencies.

Where is metal film resistor used?

Applications of metal film resistors

They are used when a high tolerance or more accurate value is needed in a circuit. They are also used for bridge circuits, filter circuits, and low-noise analog signal circuits. Metal film resistors are not suitable for applications that expose them to surge transients.

What is CFR resistor?

YAGEO CFR Carbon Film Resistors feature a power rating range of 1/6W to 3W and a resistance tolerance range of ±2% to ±5%. The CFR Resistors are manufactured by coating a homogeneous film of pure carbon on high-grade ceramic rods.

What is thick film resistor?

What is a Thick Film Resistor? Thick film resistors are produced by applying a resistive film or paste, a mixture of glass and conductive materials, to a substrate. Thick film technology allows high resistance values to be printed on a cylindrical or flat substrate either covered entirely or in various patterns.

What is metal glaze resistor?

Metal glaze resistor definition

The metal glaze resistor is a type of fixed resistor, which uses glass powder and metal particles (silver and palladium) mixture to restrict the flow of electric current to certain level.

What are the 6 types of resistors?

Different Types of Resistors – Fixed, Variable, Linear and Non-Linear Resistors & Applications
Carbon Composition Resistors.Wire wound Resistors.Thin Film Resistors.Carbon Film Resistors.Metal Film Resistors.Thick Film Resistors.Metal Oxide Resistors.Cermet Oxide Resistors (Network Resistors)

Which resistor is used in high current circuit?

Metal Oxide Resistors have better high surge current capability with a much higher temperature rating than the equivalent metal film resistors.

What are the 2 types of resistance?

There may be two types of resistors in general. Variable Resistors and Set Resistors. Around resistors.
