How does Microbore central heating work?

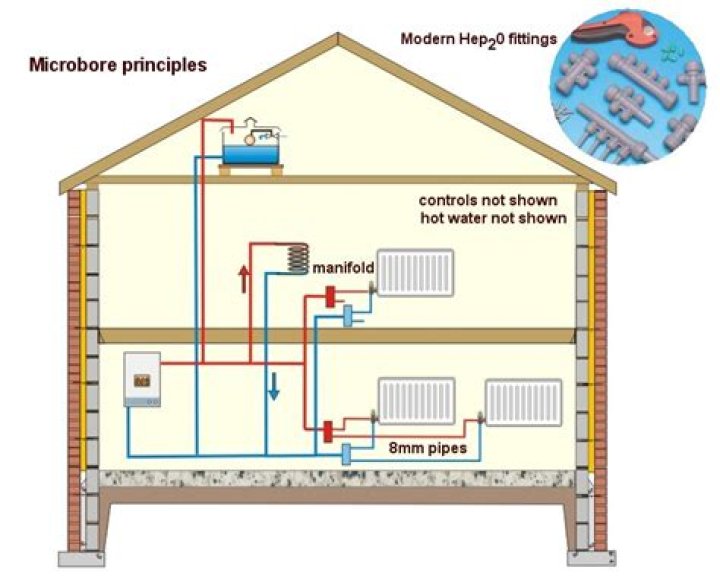

Unlike the 22 mm or 15 mm pipes, the microbore central heating system uses pipes with a diameter of 8 mm or 10 mm only. The supply and return of water to the manifolds from the boiler takes place through standard pipework. This microbore pipe runs to each radiator from the manifolds allowing even heating of the water.

Is Microbore central heating any good?

Microbore is good as long as system is keeped in good order in regards to inhibitors,may be worth fitting a magnaclean filter on the system which you can clean out yourself on a regular basis. I intend to install water softener in the property – hope it helps too?

Are Microbore pipes still used?

In modern construction microbore is once again becoming popular – but this time using plastic pipes. The pipework which circulates the water to the radiators is divided into two sections: Flow and return from the manifold to each radiator (using, say 10mm pipes).

What grade of copper is used for Microbore central heating?

Materials Cooper Grade R220 and R250 are commonly used in domestic heating systems. R220 – soft coiled microbore pipe (8mm and 10mm).

What is Microbore used for?

Another benefit to using microbore pipe is that the total system volume of water is reduced. This generally means that the boiler takes less time to bring the system up to operating temperature (thus consuming less fuel) than a traditional system.

Can you use Microbore with combi boiler?

They tell me that they strongly suggest not using a combi boiler with microbore because as the system is pressurised, if anything goes wrong, you can not get to the pipes in the wall. They suggest replacing like for like with a more efficient boiler.

What diameter is Microbore copper pipe?

15 mm is the most popular size, larger sizes (22 mm and 28 mm) are used for baths, storage tanks and boilers / central heating. Smaller sizes of pipe (10 mm and less) are often referred to as “microbore”.

Do heat pumps work with Microbore?

Any homes with microbore pipework looking to install a heat pump, which the Government are currently intending to roll out, could result in huge costs and major disruption to installing additional equipment. All pipework throughout the properties might also need replacing.

Can I use 8mm pipe for central heating?

Yes extend the 8mm pipe and use a nice piece of chrome 15mm copper up to the valves whci would be nice in chrome also. Use compression couplers 15mm*8mm.

What is Microbore piping?

Microbore Pipework This system utilises regular pipework to feed the water from the boiler to manifolds and then from the manifolds to the boiler on the return side. 8mm pipework connects each manifold to a number of rads, with the length of the pipework usually being kept to below 5 metres.

What is Microbore copper pipe?

Microbore copper pipe is a general purpose pipe, which can be easily bent by hand. It is ideal for installing in tight spaces and can be shaped into tight bends, unlike rigid copper tube. Supplied in a 25 metre coil, this pipe can withstand high internal pressure.

Can you Powerflush Microbore?

You CAN power flush most microbore systems, but it is wise to allow more time than normal for the flush. Before quoting for a power flush job on a microbore system, we first fire the boiler and check the condition and heat output of each individual radiator.

How do I find a blockage in my central heating system?

To know if the blocked central heating pipe is a blockage and not an airlock, you can draw the central heating water up each pipe until the central heating radiator and both pipes get warm, if you hear the air coming out then it isn’t a blockage but if there is no draw from the pipe at all, then it is a blockage, if

How do you remove a blockage from a heating system?

Use the radiator key to loosen the lockshield valve and then tilt the radiator to get rid of any excess water. Use the radiator key to close the bleed valve. Remove the radiator from the wall. Take the radiator to an outside space to clean, using a hose to flush any dirt and residue through manually.

What size pipe should I use for central heating?

Pipes for central heating systems can be either copper or plastic, and come in many sizes from 8mm to 35mm in diameter. In domestic central heating systems the most common pipe sizes are 28mm, 22mm and 15mm.

How far can you run 10mm pipe to a radiator?

Yes it would be okay, but near limits. It also depends on how long the 10mm runs are. 6meters on 22mm to the manifold and 6meters on 10mm from there to the radiator.

What size should heating pipes be?

The radiator circuits in most modern wet central heating systems are made from standard 15mm copper pipe, while the pipes that link the boiler, pump and points where the circuits split off will be 22mm or 28mm in diameter.
