What is a PDM network diagram?

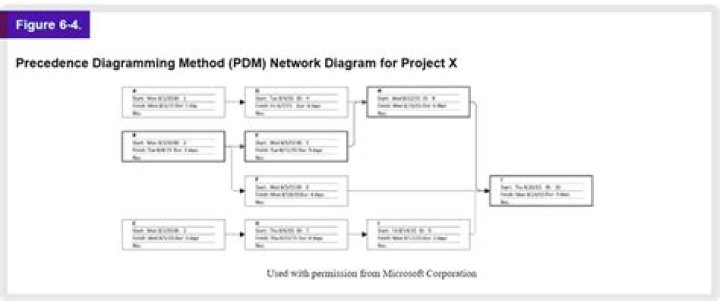

Precedence Diagram Method (PDM) is a visual representation technique that depicts the activities involved in a project. It is a method of constructing a project schedule network diagram that uses boxes/nodes to represent activities and connects them with arrows that show the dependencies.

Which network diagramming method is used for PDM and why?

The precedence diagram method (PDM) is a tool for scheduling activities in a project plan. It is a method of constructing a project schedule network diagram that uses boxes, referred to as nodes, to represent activities and connects them with arrows that show the dependencies.

What is ADM and PDM?

Arrow diagramming method (ADM) is a deterministic method, whereas the precedence diagramming method (PDM) is a probabilistic method C. Precedence diagramming method (PDM) is a deterministic method, whereas the arrow diagramming method (ADM) is a probabilistic method D.

What is an FF relationship?

Finish-to-Finish Relationship (FF)

Under this type of logical relationship, a successor activity requires the predecessor activity to be finished before it can be completed. This type of dependency can also coincide with start-to-start relationships of the same activities.

What is the difference between PDM and Aon?

Precedence Diagramming Method (PDM) or Activity on Node (AON) Method. The Precedence Diagram (AON diagram) shows activity relationships, and it is an important communication tool for stakeholders. The precedence diagram is made of rectangles known as nodes. These boxes show the project activities.

What is the difference between CPM and PDM?

Re: Difference PDM Method and Critical Path

PDM is used to create schedule and sequencing activities, putting its dependencies and coming up with schedule network diagram. This is a perquisite to really go deeper and apply CPM to determine minimum project duration.

What is ss sf fs ff?

Each predecessor is linked to the task by a specific type of task dependency and a lead time or lag time. The dependency types for predecessors are FS (finish-to-start), FF (finish-to-finish), SS (start-to-start), and SF (start-to-finish).

What is Aon diagram?

Activity-on-Node (AON) diagram: A basic type of a logic diagram used in scheduling. Critical Activity: Any activity in the schedule that does not possess any float; Total Float=0. Critical Path: The continuous string(s) of critical activities in the schedule between the Start and Finish of the project.

What is the purpose of an Aon diagram?

An activity-on-node diagram can be used to provide a visual representation of the network logic of an entire project schedule. Or, it can be used for any smaller section of the schedule that lends itself to being represented as having a defined beginning and end.

Why is PDM so important to project managers?

The PDM is important to the project manager because it is a pictorial representation of the project’s schedule. The PDM representation will allow the project manager to communicate the activity durations and relationships and allow him or her to work through any issues that management or reviewers have.

What is ADM PMP?

Arrow diagramming method (ADM) is a network diagramming technique in which activities are represented by arrows. ADM is also known as the activity-on-arrow (AOA) method.

What is FS p6?

FS (Finish to Start) SS (Start to Start) FF (Finish to Finish) SF (Start to Finish )

What is SS in a relationship?

S.O. is the abbreviation for significant other which could mean a spouse, life partner, or someone in a long-term, committed relationship.

What is FS in Microsoft Project?

Finish-to-start (FS) Indicates that the finish date of the predecessor task determines the start date of the successor task. For example, a film scene must be shot before it can be edited. Start-to-start (SS) Indicates that the start date of the predecessor task determines the start date of the successor task.
