What is Phase in Electricity? Generally, the phase-in electricity is the current or the voltage among an existing wire as well as a neutral cable. Phase means the distribution of load, if a single wire is used, an additional load will occur on it & if three wires are used then loads will be separated between them.

What is 2 phase in electricity?

A two-phase motor is a system that has two voltages 90 degrees apart, which is no longer in use nowadays. The alternator is composed of two windings placed at 90 degrees from each other. They require 2 live and one ground wire that work in two phases.

How many phases are there in electricity?

A Three Phase Power Supply consists of three power wires (or the three phases). Additionally, depending on the type of the circuit (which there are two types: Star and Delta), you might or might not have a neutral wire. In a three phase power supply system, each AC Power Signal is 1200 out of phase with each other.

What is a 4 phase electric?

The four-phase power-transmission system is a multiphase. system whose phases are closest to three. It not only has the. advantages of multiphase power-transmission systems but also. overcomes the shortcomings of multiphase power-transmission.

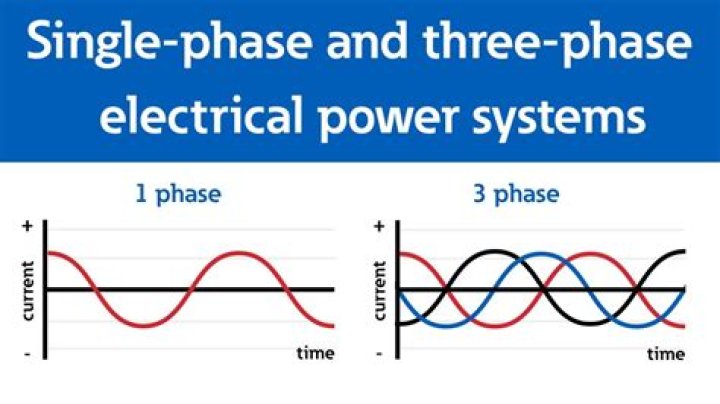

What is single-phase and three-phase?

Single phase power systems only have one neutral wire and one power wire with current flowing through them. In a three phase system, there are three power wires carrying the load. Because of the structure of a single phase system, there are peaks and dips in power that change during the cycle.

What is a 3-phase circuit?

Three-phase power is a three-wire ac power circuit with each phase ac signal 120 electrical degrees apart. Residential homes are usually served by a single-phase power supply, while commercial and industrial facilities usually use a three-phase supply.

Is 240V single-phase or 2 phase?

Single Phase 120/240

It may also be called Split Phase 240. This configuration consists of 2 voltage legs that are 180 degrees apart. The voltage between the two legs (called phase to phase or line to line) is 240V and the phase to neutral voltage is 120V.

Is 240V single-phase or 3 phase?

240V power is used in the US and parts of the world. In the US 120 / 240V 1 Phase 3 Wire is the standard for homes and 240V 3 Phase Open Delta is the standard for small buildings with large loads. In parts of the world 240V Single Phase 2 Wire is the standard for homes.

What is phase current?

Phase current is the current through any one component comprising a three-phase source or load. In balanced “Y” circuits, the line voltage is equal to phase voltage times the square root of 3, while the line current is equal to phase current.

What is 440V 3 phase?

3 phase system is expressed with line voltages. The line votage is 440 volt. Also the voltage between any one phase and neutral for a 3 phase system is 240 volts. 440V in 3 phase system is line to line voltage if you calculate per phase voltage then you will get approximate same value as for 1 phase system.

What is difference between 2 phase and 3 phase?

Three-phase electric power requires less conductor mass for the same voltage and overall power, compared with a two-phase four-wire circuit of the same carrying capacity. It has replaced two-phase power for commercial distribution of electrical energy, but two-phase circuits are still found in certain control systems.

What is a 6 phase motor?

Compared to three-phase machines, six-phase machines are more compact in size, have superior fault tolerant capability, reduced torque ripple and more power density. So, six-phase machines are used where high power density is required like, hybrid electrical vehicles.

What is a 3 phase voltage?

A 400 volt three-phase circuit means that each of the 3 lines is carrying 230 volts. For three-phase, you connect line 1 to line 2 and get 208 volts. At the same time, you [can] connect line 2 to line 3 and get 208 volts. And you [can] connect line 3 to line 1 and get 208 volts.

Is 240V single-phase?

Because we only measure across two wires, both 120V and 240V are referred to as single-phase power. (It’s rare to find three-phase AC power in residential situations). Neutral and ground are related but serve different roles. The neutral wire is the current return path for 120V circuits.

Which phase is used in homes?

Single-phase is the most common system and is mainly used in homes, while a three-phase system is common in industrial or commercial buildings, where heavy loads of power are required.

What is the voltage of 2 phase?

Two-phase power refers to 220-volt single-phase power； Two-phase power means that the rated voltage of the electrical appliance is 380 volts, and it needs to be connected to two phase wires, that is, two live wires.

What is the single-phase?

What is a Single-Phase Power? Single-phase power simultaneously changes the supply voltage of an AC power by a system. More often, single-phase power is known as “residential voltage,” since it is that most homes use. In the distribution of power, a single-phase uses the phase and neutral wires.

Is 208V single-phase or 3 phase?

208V 3 Phase power has 3 electrical legs (phases) evenly spaced in a circle (360 degrees / 3 phases = 120 degrees) around a center (neutral). Each leg (phase) provides power (phase voltage) at a unique angle (phase angle) to the center (neutral).

Can we use 2 AC in single-phase?

You can, yes. The main MCB has a current rating of at least 25 ampere. If you use 1.5 ac, it has max load current of 7 to 8 amperes for a single ac, and the MCB size is to be selected.
