primary consolidation, primary compression, primary time effect. The reduction in volume of a soil mass caused by the application of a sustained load on the mass; principally due to the squeezing out of water from the voids in the mass, accompanied by a transfer of the load from the soil water to the soil solids.

What is primary and secondary consolidation?

To distinguish between the two mechanisms, “primary consolidation” refers to consolidation due to dissipation of excess water pressure, while “secondary consolidation” refers to the creep process.

What is primary consolidation in soil?

Primary consolidation: Soil settlement during which the excess pore water pressure is transferred to the soil’s skeleton.

What is secondary consolidation?

Secondary consolidation is the continued deformation of the soil structure after excess pore pressure has dissipated, as small numbers of particles move at random shear strains, in a Poisson process, to new final positions.

What are the types of consolidation?

Types of Consolidation
Primary Consolidation.Secondary Consolidation.

What is the difference between primary and secondary compression?

One-dimensional compression of a saturated soil, subjected to an increment of total vertical stress, consists of a primary compression that takes place during the increase in effective vertical stress and a secondary compression that follows at constant effective vertical stress.

What is secondary compression?

Secondary compression is a continuation of the volume change that started during primary consolidation, only it usually occurs at a much slower rate.

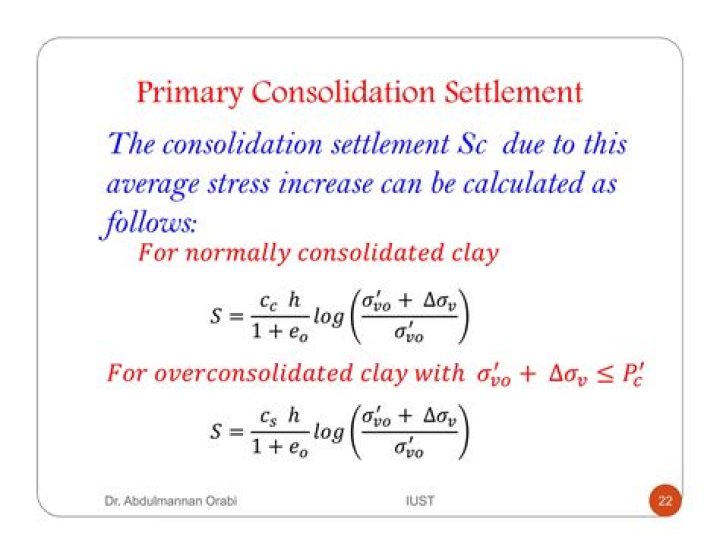

How do you determine primary consolidation?

The primary consolidation settlement can be calculated from the coefficient of volume compressibility mv, which can further lead to the Young’s modulus E′ = (1 + v′)(1 − 2v′)/[mv(1 − v′)], with an assumed Poisson’s ratio v′.

What is the difference between compaction and consolidation of soil?

Compaction is the compression of soil by the expulsion of air from the voids of the soil. Consolidation is the compression of soil by the expulsion of water from voids of the soil.

How do you determine if a soil is normally consolidated?

If the current effective stress, s’, is equal (note that it cannot be greater than) to the preconsolidation stress, then the deposit is said to be normally consolidated (NC). If the current effective stress is less than the preconsolidation stress, then the soil is said to be over-consolidated (OC).

What is secondary consolidation settlement?

The secondary consolidation happens after the primary compression, even after the excess hydrostatic stress has dissipated. Some of the settlement happens in the soil after primary consolidation and that is termed as secondary compression and it is usually time dependent.

What is secondary consolidation caused by?

The reduction in volume of a soil mass caused by the application of a sustained load to the mass, due principally to the adjustment of the internal structure of the soil mass after most of the load has been transferred from the soil water to the soil solids.

What is the cause of initial compression primary consolidation and secondary consolidation?

Primary consolidation

Occurred due to the expulsion/extrusion of the water that occupies the void spaces. Primary consolidation settlement is a result of a volume change in saturated cohesive soils. Very slow and continues over a long period of time.

What is CV in consolidation?

cv is the coefficient of consolidation and is a measure of the rate at which the consolidation process proceeds. In many consolidation problems in which the total stress σ remains constant throughout.

What are consolidation methods?

The consolidation method works by reporting the subsidiary’s balances in a combined statement along with the parent company’s balances, hence “consolidated”. Under the consolidation method, a parent company combines its own revenue with 100% of the revenue of the subsidiary.

What is an example of consolidation?

To consolidate is to combine many separate people, things or ideas into one solid unit or to make your efforts more focused and stronger. An example of consolidate is when you pour two half empty boxes of cereal into one big box. An example of consolidate is when you strengthen your fund-raising efforts.

What is primary compression?

primary consolidation, primary compression, primary time effect. The reduction in volume of a soil mass caused by the application of a sustained load on the mass; principally due to the squeezing out of water from the voids in the mass, accompanied by a transfer of the load from the soil water to the soil solids.

What is consolidation test?

Consolidation test is used to determine the rate and magnitude of soil consolidation when the soil is restrained laterally and loaded axially. The Consolidation test is also referred to as Standard Oedometer test or One-dimensional compression test.

What is secondary compression index?

The magnitude of secondary compression is expressed by the secondary compression index, Cα = Δe/Δlog t, in which e = void ratio and t = time.
