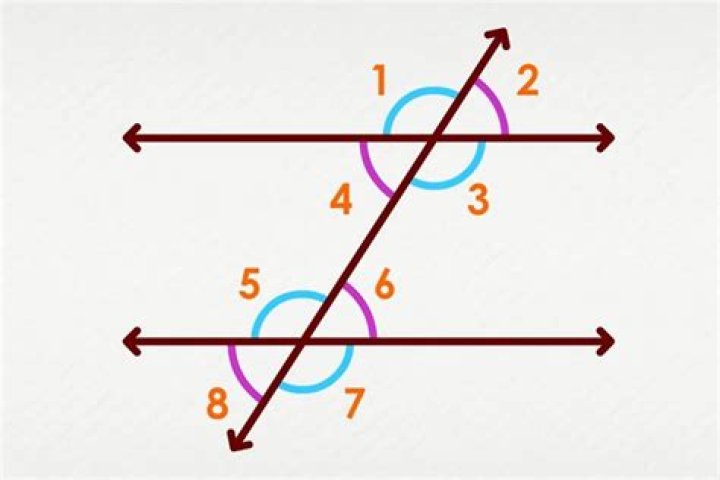

Two angles are said to be complementary when the sum of the two angles is 90°. Two angles are said to be supplementary when the sum of the two angles is 180°. When a transversal intersects with two parallel lines eight angles are produced. The eight angles will together form four pairs of corresponding angles.

What are the 4 types of angle relationships?

Angle Pair Relationship Names
Complementary Angles.Supplementary Angles.Adjacent Angles.Linear Pair.Vertical Angles.

What are the three relationships of angles?

This video discusses the three angle relationships, with regards to parallel lines, that are congruent to each other. These angle relationships are alternate interior angles, alternate exterior angles, and corresponding angles.

What are the 6 angle pair relationships?

Define complementary angles, supplementary angles, adjacent angles, linear pairs, and vertical angles.

What is the relationship of the angles 2 and 7?

Angles 2 and 7 above, as well as angles 3 and 6 are examples of alternate interior angles. Similarly, we also have alternate exterior angles that are located outside of the two intersected lines and on opposite sides of the transversal. An example of this relationship would be angles 1 and 8, as well as angles 4 and 5.

What is the relationship between ∠ 1 and ∠ 2?

Angle 1 and Angle 2 are supplementary angles.

What is the relationship between angle 5 and angle 6?

Angle 5 and 6 are supplementary, so if angle 5 is 150 degrees, then angle 6 is 30 degrees.

What is the relationship between angles A and B?

Answer: Angles A and B are complementary angles.

What is the relationship between angle 1 and angle 5?

∠1 and ∠5 are corresponding angles, so they have equal measures.

Do Linear pairs add up to 180?

The two angles of a linear pair are always supplementary , which means their measures add up to 180° .

What are linear pairs?

Linear pair of angles are formed when two lines intersect each other at a single point. The angles are said to be linear if they are adjacent to each other after the intersection of the two lines. The sum of angles of a linear pair is always equal to 180°. Such angles are also known as supplementary angles.

What are geometric relationships?

Geometric Relationships. Geometric relationships control the orientation of an element with respect to another element or reference plane. For example, you can define a tangent relationship between a line and an arc. If the adjoining elements change, the tangent relationship is maintained between the elements.

What are the types of angle pairs?

Types of Angle Pairs. Adjacent angles: two angles with a common vertex, sharing a common side and no overlap. Angles ∠1 and ∠2 are adjacent. Complementary angles: two angles, the sum of whose measures is 90°.

What is the relationship between angles 4 and 6?

6 and 4 are alternate exterior angles and thus congruent which means angle 4 is 65°.

What is the relationship between angle 1 and angle 4?

They are equals if the two intersected lines by the transversal are parallel. In the figure, angles 1 and 4 are alternate exterior angles. Angles that are on opposite sides of the transversal of two other lines. Both are internal.
