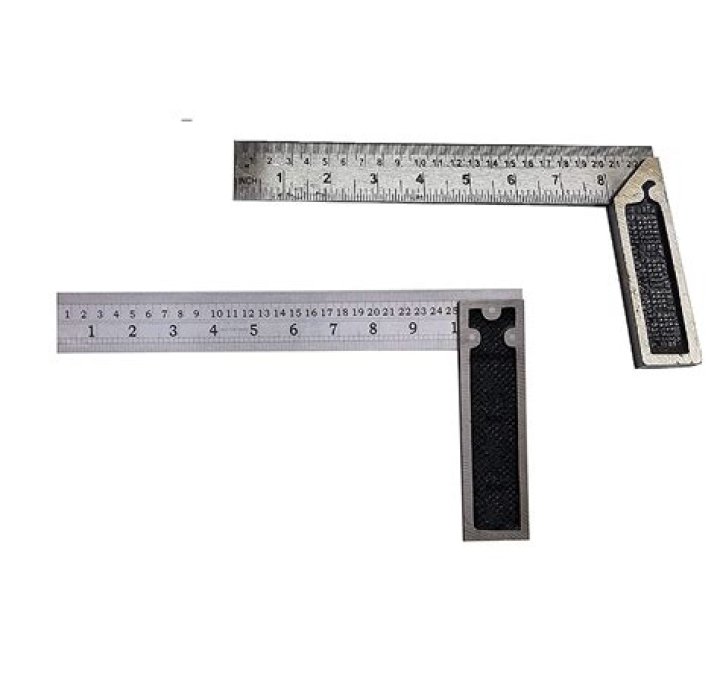

A try square with a steel blade rivetted into a wooden stock faced with brass. A try square or try-square is a woodworking tool used for marking and checking 90° angles on pieces of wood. Though woodworkers use many different types of square, the try square is considered one of the essential tools for woodworking.

What is a right angle tool called?

square, in measurement, device consisting of two straightedges set at right angles to each other. It is used by carpenters and machinists for checking the correctness of right angles, as a guide when drawing lines on materials before cutting, or for locating holes.

Which tool is used to check the right angle alignment of surfaces?

Mason’s square

It is an instrument, which is useful for checking the right angles. With the help of this tool, we can verify the accuracy of the two corners to get the standard reference of 90°. It is also called Mason’s twine, which is used to create straight lines and a level surface.

Which tool can be used to draw a 90 degree angle?

A protractor is a measuring instrument that can be used to draw a 90-degree angle and can be used for measuring other angles as well.

What is an angle gauge called?

An angle gauge is a tool used by foresters to determine which trees to measure when using a variable radius plot design in forest inventory. An angle gauge is similar to a wedge prism though it must be held a fixed distance from the eye to work properly.

Why is a square tool called a square?

A try square or try-square is a woodworking tool used for marking and checking 90° angles on pieces of wood. A try square is so called because it is used to try how square the workpiece is.

Which instrument is used to checking the alignment of machine?

An autocollimator is an optical instrument for non-contact measurement of angles. They are typically used to align components and measure deflections in optical or mechanical systems.

What is an angle measure?

In geometry, an angle measure can be defined as the measure of the angle formed by the two rays or arms at a common vertex. Angles are measured in degrees ( °), using a protractor. Fun Facts.

How do you draw a right angle with a compass?

Construction of angle 90-degree (90°)
Draw a line segment OA.Taking O as center and using a compass draw an arc of some radius, that cuts OA at B.Taking B as center and with the same radius draw another arc, that cuts the first arc at C.Taking C as center and with same radius draw an arc, that cuts the first arc at D.

Which tool is used to make both 45 and 90 degrees angles?

A combination square is primarily used for ensuring the accuracy of a 90-degree angle, measuring a 45-degree angle, measuring the center of a circular object and finding depth and simple distance measurements.

What is clinometer and its uses?

A clinometer is a simple device used to measure angles. It can be used to measure the slope of a specific terrain, the height of a building or tree, or the declination of a celestial body.

What is compass clinometer?

A compass is used to take bearings on distant objects to establish one’s map position and to determine the orientation of structures. A clinometer measures the inclination of a planar or linear feature relative to a horizontal reference plane. Several instruments combine both functions.

What is a clinometer used for in geography?

An inclinometer or clinometer is an instrument used for measuring angles of slope, elevation, or depression of an object with respect to gravity’s direction.

What are 4 types of squares?

Types of Squares
Sliding T-Bevel. The movable blade allows you to copy an angle and transfer it onto moldings, lumber, or other materials. Drywall Square. Try Square. Framing Square. Speed Square. Combination Square. Checking a square for accuracy. Marking a board along its length.
