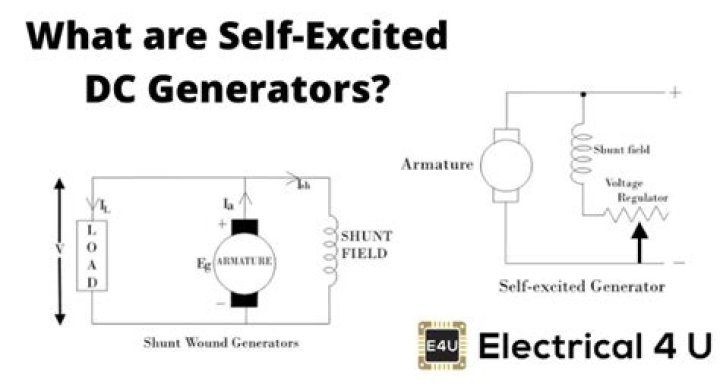

Self-excited DC generators are generators whose field magnets are energized by the current supplied by themselves. In these type of machines, field coils are internally connected with the armature. Due to residual magnetism, some flux is always present in the poles. When the armature is rotated, some EMF is induced.

What are self excited generators used for?

Self excitation

Modern generators with field coils are usually self-excited; i.e., some of the power output from the rotor is used to power the field coils. The rotor iron retains a degree of residual magnetism when the generator is turned off.

What is the difference between self excited and separately excited generators?

In a separately excited (S.E.) machine, the field winding is connected to a separate voltage source while, in a self excited generator field winding is connected across the armature terminals (provides its exciting current) .

What is the advantage of self excited generator?

The self excited generator the filed current and magnetic field are not affected by the reduced generator output voltage so the regulation is better when there is an increase in load. In a separately excited DC motor the supply is given separately to the field and armature windings.

What are the two types of self exciting generator?

Self-excited DC generators can further be classified depending on the position of their field coils. The three types of self-excited DC generators are: Series Wound Generators.

Self Excited DC Generators
Series Wound Generators.Shunt Wound Generators.Compound Wound Generators.

Why is saturation required for a self excited generator?

Saturation makes the voltage buildup in the self-excited shunt DC generator feasible. Suppose the armature voltage was linear with the field current, as shown by the heavy solid line in Figure 3. The field circuit equation also is a straight line.

How do DC generators work?

A DC generator operates on the principle of Faraday’s laws of electromagnetic induction. According to Faraday’s law, whenever a conductor is placed in a fluctuating magnetic field (or when a conductor is moved in a magnetic field) an EMF is induced in the conductor.

How does a self excited AC generator work?

In self excited machines there will be a pilot exciter with a high power permanent magnet.. It is also coupled to the main generator and exciter When it stars to rotate it induces emf which is used as exciter field supply for main exciter.. bridge rectifier which rectifies the AC output of the excitation winding to DC.

What are the causes of failure to excite self excited generator?

Causes for Failure to Self Excite and Remedial Measures
Absence of Resuidal Magnetism.Wrong field winding connection.Wrong direction of Rotation.Resistance of Field-winding (Rf) > Critical Resistance (Rc)Speed of Rotation (N)

What are the 3 types of DC motors?

Main Types of DC Motors
Permanent Magnet DC Motors. The permanent magnet motor uses a permanent magnet to create field flux. Series DC Motors. In a series DC motor, the field is wound with a few turns of a large wire carrying the full armature current. Shunt DC Motors. Compound DC Motors.

What are the advantages and disadvantages of separately excited generator over a self-excited generator?

Separately excited DC generators have many advantages over self-excited DC generators. It can operate in stable condition with any field excitation and gives wide range of output voltage. The main disadvantage of these kinds of generators is that it is very expensive of providing a separate excitation source.

When would you use a separately excited DC generator?

Applications of Separately Excited DC Generators

These are able to produce a wide range of voltage output, they are primarily used in laboratory and commercial testing. These are used in speed regulation tests. These generators operate in a stable condition with any change in field excitation.

What are the applications of DC generator?

Applications of DC Generators

They are used in DC motors where speed control is necessary. They are used as portable generators where low power supply is required. They are used in motorcycles as dynamos, in toys such as remote control cars and in appliances such as electric shavers.

What is the emf equation of DC generator?

As the armature rotates, a voltage is generated in its coils. In the case of a generator, the emf of rotation is called the Generated emf or Armature emf and is denoted as Er = Eg. In the case of a motor, the emf of rotation is known as Back emf or Counter emf and represented as Er = Eb.

Where is DC shunt motor used?

A DC shunt motor is used in applications where a constant speed and high torque is required, such as a paper manufacturing unit, Lathe Machines, Centrifugal Pumps, Fans, Lifts, Weaving Machine, Spinning machines, Blowers Conveyors etc.

What is the main disadvantage of Series generators?

The series motor has poor speed regulation. When the load speed of the machine increases, the DC shunt motor keeps its constant speed from no load to full load. The dc series motor’s Torque drops sharply when the speed increases.

What is DC generators?

A direct-current (DC) generator is a rotating machine that supplies an electrical output with unidirectional voltage and current. The basic principles of operation are the same as those for synchronous generators. The field is produced by direct current in field coils or by permanent magnets on the stator.

What is the name of DC generator DC?

Compound DC Generator

In series wound generators, the output voltage is directly proportional with load current. In shunt wound generators, output voltage is inversely proportional with load current.
