It’s common to describe household wall receptacles that are wired together using the device terminals as wired in series. But, in fact, all household receptacles are always wired in parallel, and never in series. In a series circuit, current must pass through a load at each device.

How many electrical outlets can you daisy-chain?

Daisy-chained outlets are not a good option for your home. It’s advised to refrain from daisy-chaining more than two outlets to a single breaker. The chance of overloading the circuit hugely increases due to daisy-chaining. It can damage your appliances, as well as carry high chances of electrical accidents.

How many outlets can you wire together?

Technically, you can have as many outlets on a 15 amp circuit breaker as you want. However, a good rule of thumb is 1 outlet per 1.5 amps, up to 80% of the capacity of the circuit breaker. Therefore, we would suggest a maximum of 8 outlets for a 15 amp circuit.

Can you daisy-chain outlets?

You can daisy-chain a GFI just like a regular receptacle, with one difference. The incoming wires must connect to the “line” terminals while the outgoing wires must connect to “load.”

How many things can I plug into one outlet?

Never plug more than two appliances into an outlet at once or “piggyback” extra appliances on extension cords or wall outlets. Use only outlets designed to handle multiple plugs. Know the amount of power you’re placing on an outlet or circuit. Some recommend each outlet or circuit should not exceed 1,500 watts.

Why are outlets in homes never wired in series?

When items are wired in series, the amount of energy going to each one lessens. So 3 outlets wired in series would mean each outlet would receive a little amount of electrical energy. When you wire in parallel, each load (lamp, motor, appliance etc.)

Why are electrical outlets wired in parallel?

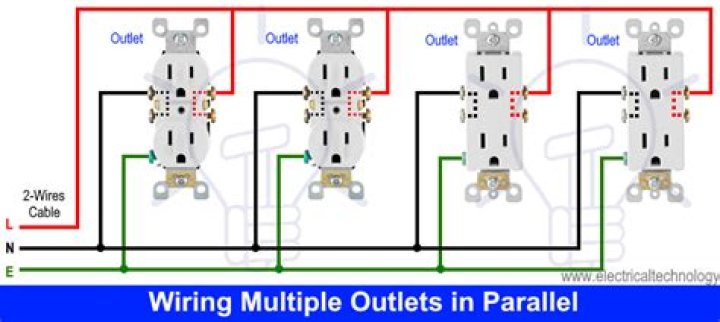

What Is a Parallel Circuit? Outlets, switches, and light fixtures are wired in such a way that the hot and neutral wires maintain a continuous circuit pathway independent from the individual devices that draw their power from the circuit.

How many outlets can you put on 14 gauge wire?

For residential there is no limit. For commercial on a 15 amp circuit which is what you use 14 awg wire. You can install up to 8 outlets. 14–2 wiring is for 15 amp circuits ONLY.Do not use this wire for anything over 15 amps.

Is daisy chain series or parallel?

A common misconception when doing receptacle wiring is that, when you daisy-chain them in a circuit, you’re wiring them in series. You’re actually wiring them in parallel, and that’s a whole different thing. Virtually all devices in residential circuits – except for switches – are wired in parallel.

Can you run lights and outlets on the same circuit?

Yes, you can. The average home uses an indoor distribution board that houses the breakers of the majority of circuits in the home. A circuit controlled by a 15A circuit breaker (which a lot of contractors use for general lighting) can also accommodate outlets.

How many outlets can be on a 20 amp circuit?

The answer to the question how many outlets on a 20 amp circuit is ten outlets. Always comply with the 80% circuit and breaker load rule, allowing a maximum load of 1.5 amps per receptacle. Remember that your circuit, wire sizes, and outlets must be compatible to avoid overheating and electrical hazards.

How many lights can be on a 15 amp breaker?

You can put up to 30 lights (based on 50 watt light) on a 15 amp breaker.

How many wires can you pigtail together?

More Than Two Cables in the Box

The only appropriate way to wire a receptacle in a box with three cables is to use pigtails to connect the receptacles. Never connect more than one wire under a single screw terminal.

Can you piggyback off an electrical outlet?

Piggybacking is a wiring technique that jumps from one junction box to another. As long as the maximum amount of amperage per circuit is observed, this technique is safe. Piggybacking is possible because of the four wiring terminals found on each outlet and is a standard process when wiring a home.

How far can you run 12 gauge wire on a 20 amp circuit?

You can run a 12 gauge wire up to 70 feet on a 15 amp circuit. That number drops to 50 feet if you run 12 gauge wire on a 20 amp circuit.
