The FM modulation index is equal to the ratio of the frequency deviation to the modulating frequency. From the formula and definition of the modulation index, it can be seen that there is no term that includes the carrier frequency and this means that it is totally independent of the carrier frequency.

What does the FM modulation index β tell us?

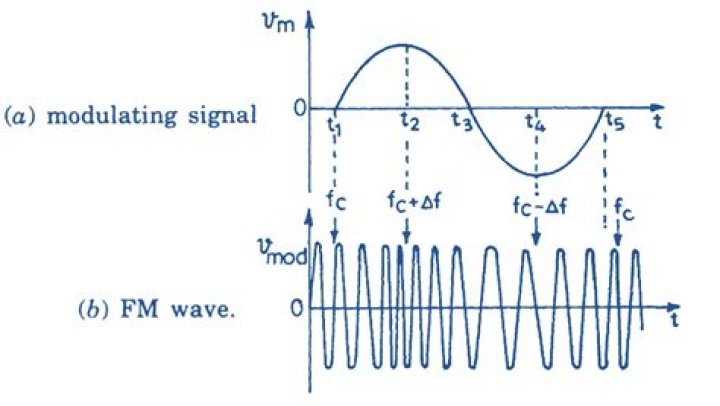

Frequency modulation uses the instantaneous amplitude of a modulating signal (voice, music, data, etc.) to directly vary the frequency of a carrier signal. Modulation index, β, is used to describe the ratio of maximum frequency deviation of the carrier to the maximum frequency deviation of the modulating signal.

What is the equation for modulation index?

Answer. where H is the modulation index, M is the modulation alphabet size (e.g. M=2 for 2FSK / 2GFSK). For example, if one would like to have H = 1 modulation index, 40 kbps data rate, then the necessary deviation for 2FSK / 2GFSK modulation will be 20 kHz.

What is the effect of increasing modulation index in FM?

As the modulation index increases for frequency modulation (FM), the number of significant sidebands increases, but the sidebands’ total average power remains constant.

What is the unit of modulation index?

It is assigned the units of radians. Radians are not derived from the ratio of the two frequencies.

What is the value of modulation index practically?

The modulation index is 0.5. The spectrum reveals that there are so-called side-bands on either side of the carrier. This is known as the beat effect where two frequencies mix to produce the sum and difference frequencies.

What is the modulation index for the FM to behave as a narrowband?

12. What is the modulation index for the FM to behave as a narrowband? Explanation: When the modulation index is around 0.25 the modulation produces only single pairs of significant sidebands like that of AM. This occupies comparatively less spectrum space.

What happens when modulation index is increased?

If the level of modulation is raised up above a modulation index of 1, i.e. more than 100% modulation this causes what is termed over-modulation. The carrier experiences 180° phase reversals where the carrier level would try to go below the zero point.

What is the importance of modulation index for AM modulation?

Importance of the Modulation Index:

It is an indicator of the level of modulation. If there is too low a level of modulation then the amount of variation in carrier amplitude is small. Thus the audio signal being transmitted will not be very strong.
