Aligned Method:

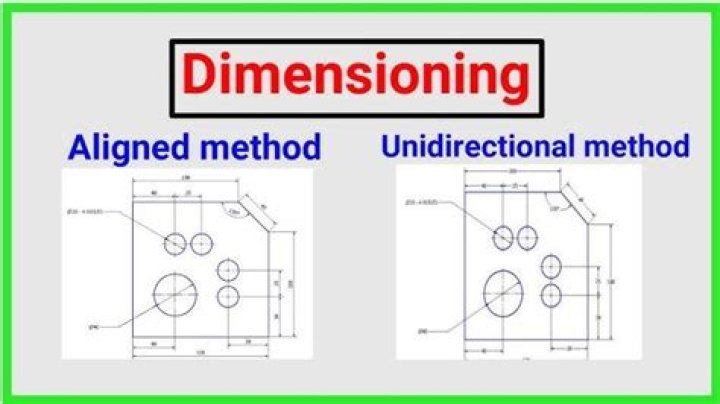

In this method of dimensioning, it is written in two directions in the whole drawing. It is written upward and at the right side and is read from the bottom and right side of a drawing. Its advantage is this that the dimensions can be written in the horizontal direction which is very easy to write.

What are different methods of dimensioning?

The basic types of dimensioning are linear, radial, angular, ordinate, and arc length. Use the DIM command to create dimensions automatically according to the object type that you want to dimension.

What is parallel dimensioning?

Parallel dimensioning is a type of linear dimensioning that measures and labels the absolute distance between two points, regardless of the relative position of the axes. With Lines, PolyLines, and Arcs, the start and end points of the entity are measured. With Circles, the diameter is measured.

What is another name of parallel dimensioning?

Hence the answer is parallel dimension. This type of dimensioning is also called as aligned dimension, as the dimension figures are aligned along the length of the dimension line. 5.

What are the 2 major methods of dimensioning?

There are two types of dimensioning systems one is Aligned system and another is Unidirectional system.

How do you draw parallel dimensions?

To draw a parallel dimension line, click the Parallel dimension tool in the toolbox. To draw a vertical or horizontal dimension line, click the Horizontal or vertical dimension tool . Click to place the starting point, and drag to where you want to place the endpoint of the dimension line.

What is instructional alignment?

Instructional alignment refers to a high degree of agreement among the objectives, assessments, and. the content in a learning experience (Cohen, 1987). It also includes deriving objectives from and aligning. them to sets of relevant external frameworks or standards.

What type of dimension controls geometry?

Dimensional Constraints

Parametric dimensions , a type of sketch constraint, control the size and position of geometry.

Which of the following dimension is according to the aligned system of dimensioning?

1. Which of the following dimension is according to the ‘aligned system’ of dimensioning? Explanation: In aligned system of dimensioning, the dimensions are written on the dimension line. Their alignment is along the length of the dimension line.

What is the minimum distance between parallel dimensions?

The minimum space between parallel lines should never be less than twice the thickness of the heaviest line. It is recommended that these spaces be 0.7 mm or greater.

What are elements of dimensioning show pictorially?

The elements of dimensioning include the projection line, dimension line, leader line, dimension line origin indication, its termination, notes, the dimension, etc. The various elements of dimensioning are shown in Fig. 1. Fig.

Which is the most common tool used for drawing circles?

A compass, more accurately known as a pair of compasses, is a technical drawing instrument that can be used for inscribing circles or arcs.

Which is the instrument used to draw parallel lines fast?

Which is the instrument used to draw parallel lines fast? Explanation: Using roll-n-draw scales, we can draw parallel lines very accurately and fast. They are used to draw parallel lines in the horizontal direction, vertical direction and also in inclined planes.

What are extension lines?

Extension lines continue or extend from the surface of the object and establish the size of the dimension. They do not touch the object lines and extend slightly past the dimension line. Extension lines provide a means of displaying a measurement without placing the dimension on the part.

What is baseline dimensioning?

A baseline dimension is a group design object. It allows for the dimensioning of a linear distance of a collection of references relative to a single base reference. The dimension value in each case is, therefore, the distance between each reference point and the ‘base’ measured in the default units.

What are the alphabet lines?

The lines in the Alphabet of Lines are used to describe shape, size, hidden surfaces, interior detail, and alternate positions of parts. Each conveys a particular meaning on the drawing.
