Advantage – At any point it can analyse the performance and also applicable to ac and dc network. Disadvantage – This is not applicable for nonlinear and unilateral networks. Limitation – In power system, it cannot be used because its efficiency is only fifty percent and here the main concern is efficiency.

Under what situation maximum power transfer theorem is not applicable?

Maximum power is transferred from source to load if the load resistance is equal to the internal resistance of source. If Rs = Rl, half the power will be consumed in Rs and half in Rl. Thus efficiency will be 50%. This principle is never applied in power generators as the efficiency is poor.

Why maximum power transfer is not always possible?

The efficiency at max power transfer is only 50% . Our objective is to get clear most distinct signal and not the efficiency. The source of power for DC circuits is usually a battery. Therefore, when you measure the voltage with respect to ground, the voltage may slowly decrease because of the load on the battery.

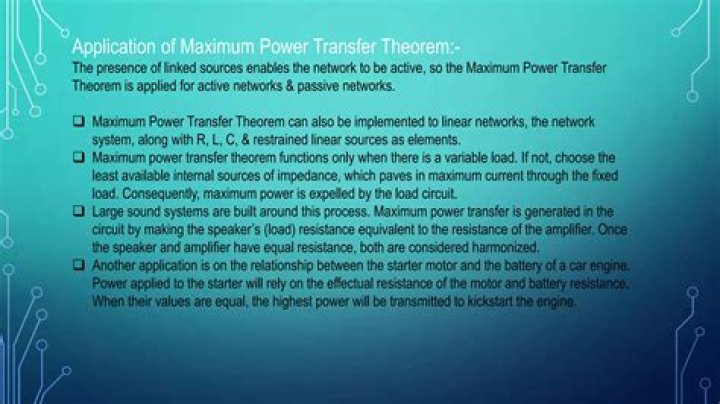

What are the applications of maximum power transfer theorem?

In car engines, the power delivered to the starter motor of the car will depend upon the effective resistance of the motor and the internal resistance of the battery. If the two resistances are equal, maximum power will be transferred to the motor to turn to the engine.

What are the limitations of Super position theorem?

What are the limitations of superposition theorem
It is used to measure current and voltage but cannot be used to measure power.Applicable only for linear circuits.There must be more than one source to apply this theorem.This is not applicable for unbalanced bridge circuits.

What are the limitations of Tellegen’s theorem?

The circuit having time varying element then the reciprocating theorem is not applicable. The circuits having dependent source even it is linear then the reciprocating theorem is not applicable. The circuit having non linear element like diode transistor then reciprocating theorem is not applicable.

Does maximum power transfer imply maximum efficiency A Yes B No C Sometimes D Cannot be determined?

Explanation: Maximum power transfer does not imply maximum efficiency. If the load resistance is smaller than source resistance, the power dissipated at the load is reduced while most of the power is dissipated at the source then the efficiency becomes lower. Thus efficiency=50%.

What is the condition for maximum power transfer in AC circuit?

The maximum power transfer theorem states that the maximum power flow through an AC circuit will occur when the load impedance is equal to the complex conjugate of the source impedance.

What are the conditions to transfer maximum power from source to load?

Maximum power transfer theorem states that ” In a linear bilateral network if the entire network is represented by its Thevenin’s equivalent circuit then the maximum power transferred from source to the load when the load resistance is equal to the Thevenin’s resistance.

Why maximum power transfer theorem is widely used in electronic communication system?

The maximum power theorem, better known as the maximum power transfer theorem, is an essential tool for ensuring successful system design. Put simply, this theorem states that the maximum power that can be transferred from source to load is 50%, which occurs when source impedance is exactly matched to load impedance.

Is maximum power transfer theorem applicable to AC circuits?

Maximum power transfer theorem can be applied to both DC and AC circuits, but the only difference is that the resistance is replaced with impedance in AC circuit.

Why superposition theorem is not applicable for power?

Explanation: The Superposition Theorem is not applicable for Power calculation because for power, the calculations involve either the product of voltage and current or the square of current or the square of the voltage thus making them non-linear operations. Hence they cannot be calculated using Superposition Theorem.

What is one limitation of the law of superposition?

One of the limitations of the principle of superposition geology is that it cannot be applied as it is to some close fields such as archaeology. The stratigraphic superposition in archaeology is different from the law of stratigraphy in geology.

What is the limitation of superposition theorem Mcq?

This theorem cannot be used to measure power. This theorem is not applicable to unbalanced bridge circuits. Applicable only to linear circuits not for nonlinear circuits. Applicable only for the circuits having more than one source.

What are the conditions under which superposition theorem can not be applied?

Superposition Theorem works only for circuits that are reducible to series/parallel combinations for each of the power sources at a time (thus, this theorem is useless for analyzing an unbalanced bridge circuit), and it only works where the underlying equations are linear (no mathematical powers or roots).
