8051 microcontroller consists of four register banks, such as Bank 0, Bank 1, Bank 2, Bank 3 which are selected by the PSW (Program Status Word) register. 8051 has 32 general-purpose registers and the size of each register is 8-bit.

How many register banks are there?

Register Banks in 8051

The 8051 microcontroller consists of four register banks, such as Bank0, Bank1, Bank2, Bank3 which are selected by the PSW (Program Status Word) register.

What are register banks?

A register bank is used for the programmable registers used by assembly language programmers. It can be viewed as the hardware equivalent of a software array. It has ports for reading and writing data given an index. Main memory and caches have similar interfaces for reading and writing data.

How many register banks can be selected by the proper use of RS0 and RS1 pins?

Explanation: At a time, only one of the four register banks can be accessed. Explanation: The 32, 8-bit registers are divided into four groups of 8 registers each, called register banks. Explanation: If RS1=1, RS0=0, then the register bank selected is register bank 2.

Which register in 8051 is a 16-bit register?

It is used by the 8051 to access external memory using the address indicated by DPTR. DPTR is the only 16-bit register available and is often used to store 2-byte values.

How many ports are in 8051?

8051 microcontrollers have 4 I/O ports each of 8-bit, which can be configured as input or output. Hence, total 32 input/output pins allow the microcontroller to be connected with the peripheral devices.

How many register banks are there in 8051 how many register are there in each register bank which is default register bank?

Register Banks in 8051

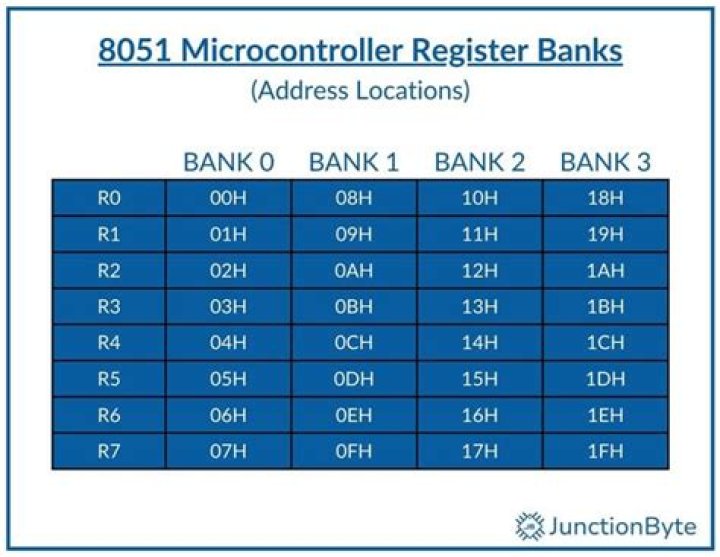

A total of 32 bytes of RAM are set aside for the register banks and the stack. These 32 bytes are divided into four register banks in which each bank has 8 registers, R0–R7.

How many bits are there in 8051 microcontroller?

8051 microcontroller is designed by Intel in 1981. It is an 8-bit microcontroller. It is built with 40 pins DIP (dual inline package), 4kb of ROM storage and 128 bytes of RAM storage, 2 16-bit timers.

What is bank register in QuickBooks?

QuickBooks registers look like the paper bank register you use to keep track of your banking transactions. Most balance sheet accounts listed in the chart of accounts have a register that can be accessed by double-clicking the account in the list.

How many register banks ports etc?

The register bank has sixteen 32-bit registers.

How many bank registers are available in ARM?

ARM processors have 37 registers. The registers are arranged in partially overlapping banks. There is a different register bank for each processor mode.

How many timers counters 8051 16-bit microprocessor have?

These timers and counters are used as interrupts in 8051 microcontroller. There are two 16-bit timers and counters in 8051 microcontroller: timer 0 and timer 1. Both timers consist of 16-bit register in which the lower byte is stored in TL and the higher byte is stored in TH.

How many counters are there in 8051 internal architecture?

The 8051 has two counters/timers which can be used either as timer to generate a time delay or as counter to count events happening outside the microcontroller.

How many machine cycles are required to reset the 8051?

The reset input pin must be active high for at least 2 machine cycles.

How many number of register are there in the timer?

Timer register is configured as a 13-bit register consisting of all the 8 bits of TH1 and the lower 5 bits of TL1.

What is 16bit register?

In computer architecture, 16-bit integers, memory addresses, or other data units are those that are 16 bits (2 octets or 2 Bytes) wide. Also, 16-bit CPU and ALU architectures are those that are based on registers, address buses, or data buses of that size. So as a result, 16-bit register can store 216 different values.

Which register is 8-bit counter?

The accumulator is an 8-bit register (can store 8-bit data) that is the part of the arithmetic and logical unit (ALU). After performing arithmetical or logical operations, the result is stored in accumulator. Accumulator is also defined as register A.
