It eliminates the need for configuring trunk interfaces when deploying VLANs on multiple switches. It decreases the amount of configuration that is needed on a switch. It provides a simulated environment for testing link aggregation. It allows the use of multivendor devices.

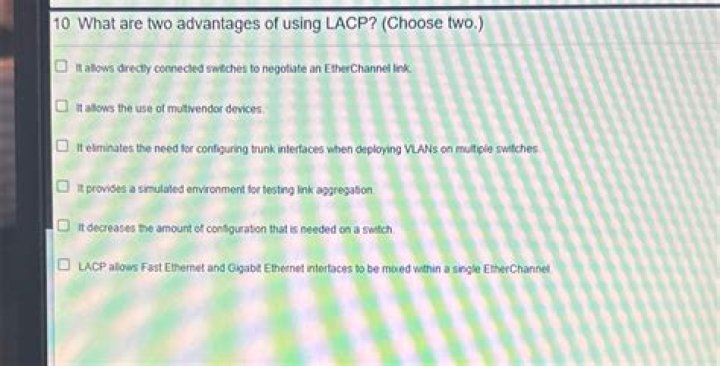

What are 2 advantages of using LACP?

Using Link Aggregation Control Protocol (LACP) increases bandwidth in 1 direction. The device employing LACP can link more than 1 physical interface together. Using Link Aggregation Control Protocol (LACP) increases bandwidth in 1 direction. The device employing LACP can link more than 1 physical interface together.

What is LACP mode?

LACP allows Cisco switches to manage Ethernet channels between switches that conform the 802.3ad protocol. You can configure maximum 16 ports to form a channel depending on IOS version and platform. Eight of the ports are in active mode and the other eight are in hot-standby mode.

Does LACP load balance?

LACP mode is also called M:N mode, where M refers to the number of active links and N refers to the number of backup links. This mode guarantees high reliability and allows traffic to be load balanced among M active links.

What is the difference between LACP and PAgP?

LACP is an Open standard, i.e., supported by most vendors. While PAGP is Cisco proprietary; i.e., PAGP can only be used between Cisco devices. LACP has two modes, i.e., Active mode (Ports initiate negotiation with other ports by exchanging LACP packets.)

Which two protocols are used to implement EtherChannel choose two?

Port Aggregation Protocol and Link Aggregation Control Protocol are used to implement EtherChannel.

Is LACP Layer 2?

Starting in Junos OS Release 15.1X49-D40 and Junos OS Release 17.3R1, Link Aggregation Control Protocol (LACP) is supported in Layer 2 transparent mode in addition to existing support in Layer 3 mode for SRX5400, SRX5600 and SRX5800 devices. LACP is compatible with other peers that run the 802.3ad LACP protocol.

What are the two modes you can set with LACP?

Link Aggregation Control Protocol (LACP) has two Channel modes and they are “Active” and “Passive”.

Does LACP double bandwidth?

4 Answers. LACP will not split packets across multiple interfaces for a single stream/thread. For example a single TCP stream will always send/receive packets on the same NIC.

What is the difference between LACP and lag?

Conclusion. LAG vs LACP issue is put forward for the confusing conception between them. LAG is an actual instance for link aggregation. LACP is a control protocol to enable LAG automatically configure network switch ports, detach link failure and activate failover.

Is LACP active active?

LACP runs on any link that is configured to be in the active state. The port in an active mode also automatically initiates negotiations with other ports by initiating LACP packets. Passive mode—the interface is not in an active negotiating state. LACP runs on any link that is configured in a passive mode.

What is LACP port priority?

LACP uses the port priority to decide which ports should be put in standby mode when there is a hardware limitation that prevents all compatible ports from aggregating. LACP also uses the port priority with the port number to form the port identifier. The default value is automatically set to 32768.

What is LACP Cisco?

(LACP) LACP is defined in IEEE 802.3ad standard and enables Cisco switches to manage Ethernet channels between switches that conform to the standard. LACP facilitatesthe automaticcreation of EtherChannelsby exchanging LACP packets between Ethernet ports.

What is true about port aggregation protocol PAgP?

Port Aggregation Protocol (PAgP) is a Cisco Systems proprietary networking protocol, which is used for the automated, logical aggregation of Ethernet switch ports, known as an EtherChannel. The PAgP is proprietary to Cisco Systems. PAgP uses the same multicast group MAC address of CDP.

What is the difference between port channel and EtherChannel?

In the Nexus switches, the port-channel term is used for technology and the individual interface. Once we have configured an Etherchannel we make all you changes on the Port Channel interface and these will be automatically applied to all the individual interfaces within the Etherchannel.

Which one is an advantage of using LACP?

LACP allows Fast Ethernet and Gigabit Ethernet interfaces to be mixed within a single EtherChannel. It eliminates the need for configuring trunk interfaces when deploying VLANs on multiple switches. It allows directly connected switches to negotiate an EtherChannel link.

What are two requirements to be able to configure an EtherChannel between two switches choose two?

What are two requirements to be able to configure an EtherChannel between two switches? All the interfaces need to work at the same speed. All the interfaces need to be working in the same duplex mode. Refer to the exhibit.

Which two parameters must match on the ports of two switches?

For an EtherChannel to be created, the ports that are concerned on the two switches must match in terms of the speed, duplex, and VLAN information. The PAgP mode must be compatible but not necessarily equal.
