The range is 0–29.

What are Vty lines?

The virtual terminal or “VTY” lines are virtual lines that allow connecting to the device using telnet or Secure Shell (SSH). Cisco devices can have up to 16 VTY lines. These lines can be used to connect terminals or models to the device.

What is the meaning of line Vty 0 15?

This is a type of zone command, we specify a zone with vty (virtual terminal line) from 0 to 15 (ie every 16 lines). New password command to enter the password to be used for authentication. login command to configure the router to require authentication. This also allows Telnet access to this device.

What is the meaning of line Vty 5 15?

03-05-2006 03:17 PM. VTY lines are usually used for creating out-of-band management sessions to devices. If a password is not supplied on a vty line, that line cannot be used for managing the device. In some cases administrators may decide to let junior staff to use lines 0 – 4 and senior staff to use lines 5 – 15.

What is the meaning of line Vty 0 4?

The term “vty” stands for Virtual teletype. VTY is a virtual port and used to get Telnet or SSH access to the device. The abstract “0 – 4” means that the device can allow 5 simultaneous virtual connections which may be Telnet or SSH.

What is line console and line Vty?

March 2017. console 0 is the physical console port on the switch/router you plug into. line vty is when you remote into the switch/router via telnet or ssh. the config-line is letting you know you are currently in configuration mode for that specific line.

What does the command line Vty 0 1 mean?

What does the command line vty 0 1 mean? The “0 1” represents the number of vty lines to which the following configu- ration parameters will be applied. The two virtual terminal connections are identified as 0, 1.

What does line console 0 mean?

The use of “line console 0” command is to connect a switch/router through medium console. If there is only one console port, you can only choose “line console 0”. However if you have more than the number goes as 1,2,3,4 You can set different or same password to all your console ports.

What is SDM Cisco?

The Cisco® Security Device Manager (SDM) is an intuitive, Web-based device. management tool embedded within Cisco IOS® access routers.

What is AAA New Model?

switch(config)# aaa new-model. My book says ” new model” refers to the use of method lists by which authentication methods and sources can be grouped or organised.”

What is line configuration mode?

The Line Configuration Mode is used to manage the terminal line characteristics for output formatting. Command Modes. Exec > Global Configuration > Line Configuration.

What is motd banner?

MOTD banner: the “message of the day” banner is presented to everyone that connects to the router. Login banner: this one is displayed just before the authentication prompt. Exec banner: displayed before the user sees the exec prompt. Incoming banner: used for users that connect through reverse telnet.

What is privilege level 15?

By default, typing enable takes you to level 15, privileged EXEC mode. In the Cisco IOS, this level is equivalent to having root privileges in UNIX or administrator privileges in Windows. In other words, you have full access to the router.

What is level 15 access Cisco?

Level 15: Full Access to all commands, such as the “Reload” command, and the ability to make configuration changes. Level 1: Read-only, and access to limited commands, such as the “Ping” command.

How do I enable IPv6 routing?

This Article Applies to:
Log in to the web-based interface of the router. Go to Advanced > IPv6.Enable IPv6 and select the internet connection type provided by your ISP. Fill in information as required by different connection types. Configure LAN ports.

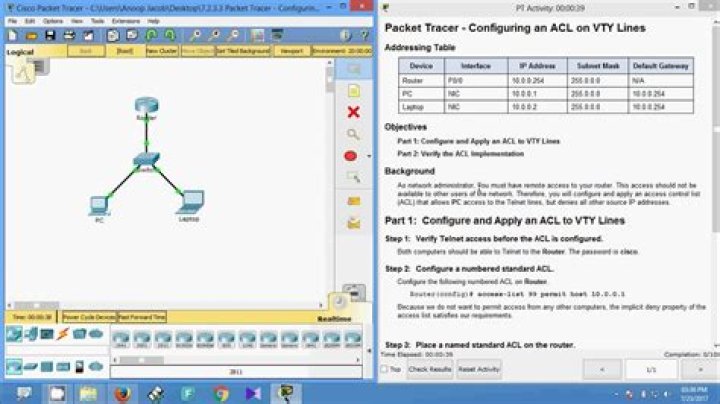

Can we apply ACL to limit Vty session?

The Standard Access Control List (ACL) created before can be applied to VTY lines to permit telnet or SSH traffic from only from 172.18.

What command would you use to set an access-list on a Vty line?

Configure the access-list on the vty lines using the access-class command. Verify your configuration and connectivity using R2 and R3.
