I normally use Green for ground, White for Neutral, Black for X, Red for Y (and orange for Z on an L21-30). On the Cal Standard plugs and connectors the X is colored Red and Y is colored Black.

What does XYZ mean on a plug?

x y z are your 3 phase conductors. W as you said is the white or grounded conductor and the green ground– well you know where that goes. : grin: No order– if the machine has a specific rotation you may have to switch the places of 2 phases.

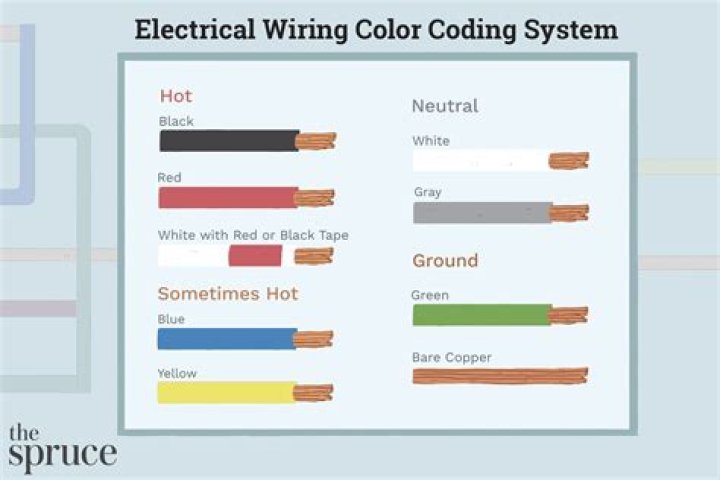

What is the color code for 3 phase wiring?

Phase 3 – Phase 3 wiring should be yellow. Neutral – Neutral wires should be grey. Ground – Ground wiring should be green, or green with a yellow stripe.

R, Rh, Rc: Your system may have just an R wire, an Rh and an Rc wire, or a lone Rh or Rc wire. Y, Y1, Y2: Whenever your thermostat calls for cooling, the Y wire is used to send a signal to your HVAC system telling it to fire up the air conditioner.

What Colour wire goes to L and N?

The N is for the neutral side or the white wire, and the L is for the load side, the black wire.

So on a 3 core black would be earth (green/yellow sleeve) and grey would be neutral (blue sleeve).

What color wires go together for a ceiling light?

The black wire from the ceiling fan is the hot wire that runs the motor and turns the fan blades. The white wire is neutral and completes the fan circuit. The blue wire is the hot wire for the ceiling fan light fixture.

Do red and white wires go together?

In the US, the answer would be no, even though I am reluctant to answer this. White is not aggressive. White is neutral, black is 120, green is ground, and red is the other phase of the mains into your house.

In South Africa these wires are identified as follows: brown – LIVE (PHASE) blue – NEUTRAL. green/yellow – EARTH.

Is xy or z the neutral?

In each case, the X Y or Z terminals designate “hot” lines. The use of W indicates a white or neutral connection, and G always is for the grounding connection.

How many wires are needed for 240V single phase?

In the case of 240V, the circuit requires 2 Hot wires. One Hot wire from each ‘out of phase’ busbar is required to complete 240Volt circuit. These wires can be Black and White or Black and Red, and with heavier gauge wires, like 6 gauge and 4 gauge, the wires are Black and Black.

What do the different color thermostat wires mean?

Red – Rc – 24VAC (dedicated to cooling call) Green – G – Fan. White – W – Heat. Yellow – Y – Air conditioner.
