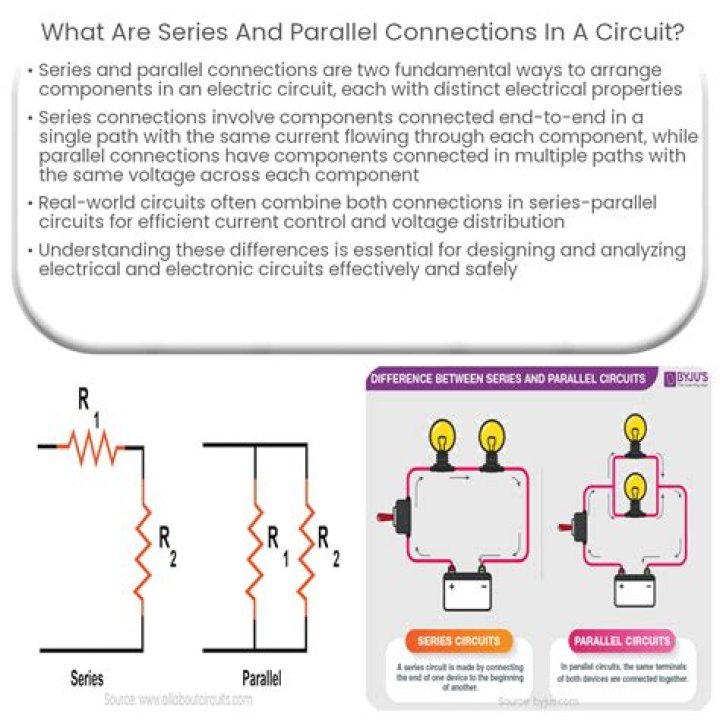

In a series circuit, all components are connected end-to-end, forming a single path for current flow. In a parallel circuit, all components are connected across each other, forming exactly two sets of electrically common points.

What is the difference and similarities of series and parallel circuit?

In a series circuit, the same amount of current flows through all the components placed in it. On the other hand, in parallel circuits, the components are placed in parallel with each other due to which the circuit splits the current flow.

Does a parallel circuit has similarities with a series circuit?

Aside from the fact that they are both used to connect electrical components, such as diodes, resistors, switches and so on, together, there are few similarities between serial and parallel circuits.

What is common in a series circuit?

In a series circuit, the current is the same at each resistor. If the light bulbs are identical, then the resistance is the same for each resistor. The voltage drop (I鈥R) will be the same for each resistor since the current at and the resistance of each resistor is the same.

What is the difference between parallel and series connection in a circuit in terms of current?

In a series circuit, a common current flows through all the components of the circuit. While in a parallel circuit, a different amount of current flows through each parallel branch of the circuit. In the series circuit, different voltage exists across each component in the circuit.

Is current the same everywhere in a parallel circuit?

In a parallel circuit, charge divides up into separate branches such that there can be more current in one branch than there is in another. The rule that current is everywhere the same still works, only with a twist. The current outside the branches is the same as the sum of the current in the individual branches.
