In the USA the most common configuration is 208Y/120. This indicates that line to line (L-L) voltage is 208Vac in a WYE configuration and the line to neutral (L-N) voltage is 120Vac. This configuration is often an optional voltage for most AMETEK supplies 5 kW and larger.

Can you get 208V from a 120V panel?

Therefore, if you put 120V in, you will get 120V out, 208V in gets you 208V out, 240V in gets you 240V out, etc. When you run 120/208V single phase power into an isolation transformer, the two individual hot conductors of 120V are combined into one 208V waveform.

Is 208V the same as 120V?

The difference between 120V and 208V practically is that 208V circuits tend to deliver more power and are (generally) designed to be more robust. The standard 15A 120V circuit has capacity for 1.8kW * 80% = 1.44kW. The standard 30A 208V circuit has capacity for 6.24kW * 80% = (about) 5kW.

Does 120 208 volt three-phase have a high leg?

Voltage between A, B or C is three phase 240; voltage between neutral and A or C is single phase 120. That B-neutral 鈥渉igh -leg鈥 or 鈥渟tinger leg鈥 is 208 volts, and must be marked distinctly, typically with orange, according to electrical codes.

How do you get 208V from 120V?

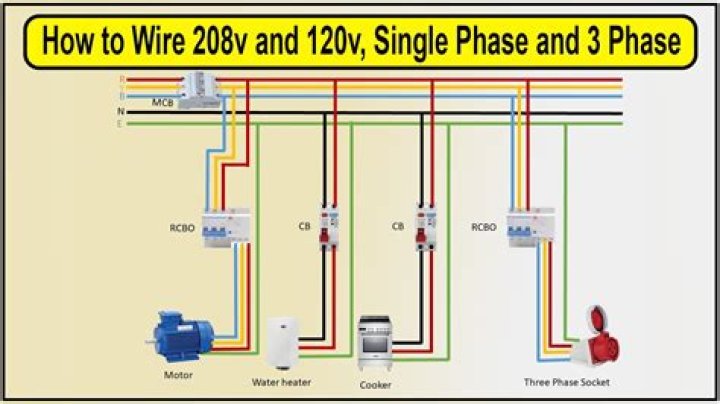

In 120V and 208V, 1-Phase & 3-Phase wiring systems, the available voltage levels are as follows inside the main breaker panel.
Voltage between three hot wires (hot 1, hot 2 & hot 3) = 208V Three Phase.Voltage between any two hot wires = 208V Single Phase.Voltage between any hot wire and Neutral = 120V Single Phase.

Is 208V Delta or Wye?

Wye systems have five wires鈥攖hree hot, one neutral and one ground. While both Delta and Wye systems can measure 208VAC (on the secondary) between any two hot wires, Wye systems also measure 120VAC between any hot wire and neutral.

What does 208V 120V mean?

208 volts is Line-to-Line Voltage. This three Phase voltage is frequently used in small businesses. It is 208 volts /1.732 which is 120 volts. The power is brought is as 208 volts 3 Phase and then the Line-to-Neutral Voltage will be 120 Volts.

Is 208V the same as 220V?

In North America, the terms 220V, 230V, and 240V all refer to the same system voltage level. However, 208V refers to a different system voltage level. With electrical loads, the voltage will drop, hence the common reference to voltages below 120 and 240, such as 110, 115, 220, and 230.

Does 3 phase 208V need a neutral?

No! Basically a Delta style distro just does not make use of the Neutral. The bane of many road warriors is something known as the “tapped Delta”, where one of the three windings has a center-tap. So, measured to Neutral, the legs are 120, 120, 208 (240 between any two hots.)

Is my house 110v or 120V?

If a nameplate on an appliance shows that it has a 110 plug, this most likely means that the appliance is designed to operate at 120 volts, but will continue to operate normally if the voltage drops to 110 volts.

What voltage would be considered abnormal in a residence?

If you find that the voltage at your wall outlets is consistently around 124 VAC or higher, then you have too much electricity in your house and you are using and paying for significantly more energy than your appliances need to use.

What is 208 volts used for?

The most common commercial building electric service in North America is 120/208 volt wye, which is used to power 120 volt plug loads, lighting, and smaller HVAC systems. In larger facilities the voltage is 277/480 volt and used to power single phase 277 volt lighting and larger HVAC loads.

What voltage has a high leg?

This type of configuration is commonly used in North America, especially in the United States. By using a high leg delta connection, we can get two 120V supplies, three 240V supply and a 208V supply. The phase with 208V supply to the ground is called High-Leg or Orange leg.

What is the voltage on each leg of 3 phase?

Each of the 3 lines will be carrying 120 volts. If you look at the chart, you can easily see the power output of any 2 lines. If one is at peak, the other line isn’t at peak. That’s why in a 3 phase circuit it’s incorrect to multiply 120 volts times 2 to get 240 volts.

What voltage is the high leg?

The high leg voltage magnitude is approximately 208 volts with an angle of negative 30 degrees when a reference of zero degrees for the A Phase voltage (VAB) is used.

Is 208V same as 240V?

208V is *not* the same as 240V. 208V is the voltage between phases of a 3-phase 鈥淵鈥 circuit that is 120V from neutral to any hot. 480V is the voltage between phases of a 3-phase 鈥淵鈥 circuit that’s 277V from hot to neutral.

Is 208V 3 phase or single-phase?

208V 3 Phase power has 3 electrical legs (phases) evenly spaced in a circle (360 degrees / 3 phases = 120 degrees) around a center (neutral). Each leg (phase) provides power (phase voltage) at a unique angle (phase angle) to the center (neutral).

Is 120V single-phase?

Throughout North America, homes are powered by 120-volt single-phase electricity. The two “hot” wires carry 240 VAC, which is used for heavy appliances like electric ranges and dryers. However, the voltage between both hot wire and the neutral wire is 120 VAC, which powers everything else in our homes.
