For example, the number 70 in a E7018 electrode indicates that the electrode will produce a weld bead with a minimum tensile strength of 70,000 psi. The third digit represents the welding position(s) for which the electrode can be used.

What does the 8 in E7018 stand for?

What does the 8 in E7018 stand for? E6010 = High cellulose sodium flux. E6013 = High titania potassium flux. AC, DCEP or DCEN for flat, vertical, overhead and horizontal positions. E7018 = low-hydrogen potassium, iron powder flux.

What setting should my 7018 ROD be on?

the arc force bumps up the amperage just a bit so that you keep welding. Most operator manuals recommend setting the arc force knob to around 30 or so for 7018 rods.

7024 welding rods are only designed to be used in flat and horizontal positions. That is because the puddle is big and hot and the flux causes the molten metal to solidify rather slowly.

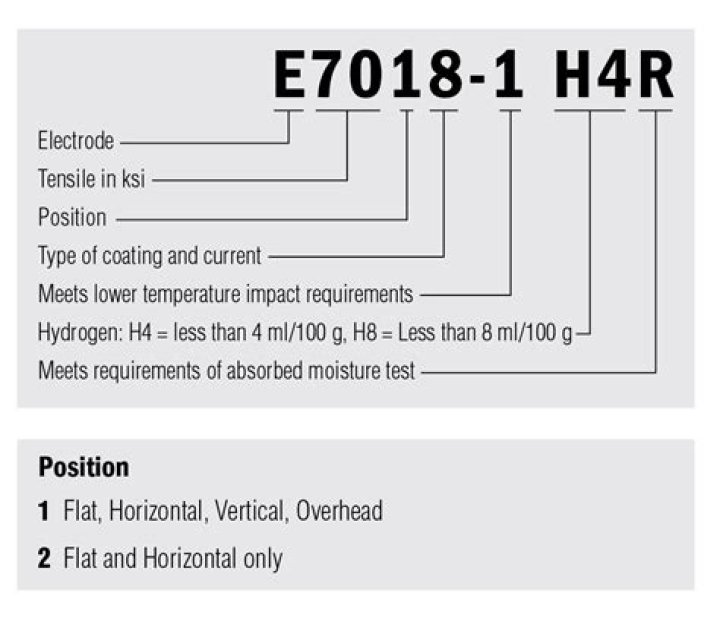

What does the 1 mean in E7018 1 H4R?

H4R is an optional supplementary designator, as defined in AWS A5. 1-91 (Specification for shielded metal arc welding electrodes). Basically, the number after the “H” tells you the hydrogen level and the “R” means it’s moisture resistant.

E6010 electrode Specification & classification

E stands for Electrodes for SMAW or stick welding. The next two digits i.e. 60 indicate the tensile strength of weld deposit is 60 KSI or 60000psi. The next digit 1 indicates it is all position electrode which mean F, V, OH, H positions.

Can you weld 7018 with AC?

The 7018 welding rods are used for pipe welding and structural steel welding and repair welding. This low-hydrogen, usually DC, all-position electrode can also be used with AC, which not many welders may know. The 7018 provides a good bead appearance and smooth, strong welds.

What does the 2 stand for in E7024?

E7024 electrode Specification & classification

E stands for Electrodes for SMAW or stick welding. The next two digits i.e. 70 indicate the tensile strength of weld deposit is 70 KSI or 70000psi. The next digit 2 indicates it is suitable only for Horizontal- Fillet & flat position only.

The “60” in 6010 means 60,000 pounds’ tensile strength (the ability to resist being pulled apart) per square inch. The “1” means it can be run in any position—flat, horizontal, vertical, or overhead.

What does the 0 stand for in E6010?

E – Stands for Electrode 60 – 60,000 tensile strength. 1 – in all position welding can be done 0 – cellulose.

What does the 3 stand for in E6013?

E XXXX: The first character “E” in E6013 stands for flux covered electrode as used in Metal Manual Arc Welding. In this case the “3” in E6013 tells that it has a rutile potassium based flux coating. The penetration of the electrode is light and it can be used with AC and DC currents.

What temperature should a 7018 Rod be?

Although the performance may not appear to be affected, the elevated moisture content in the E7018 may not yield a low-hydrogen deposit. Most manufacturers recommend that low-hydrogen electrodes be stored at 225 to 300 degrees F.

The flux coating on these rods absorbs moisture from the air. The moisture will make the arc spit and pop, and produce a weld that’s porous and weak. These rods must be dried in a rod oven at temperatures above 500 degrees Fahrenheit and kept dry in a heated cabinet at 250 degrees until used.

Does 7018 rods need to be heated?

The 7018 electrode is a low-hydrogen rod, which means it doesn’t tolerate moisture in its flux. On top of that, a light bulb won’t emit enough heat to keep welding electrodes at the proper temperature. Using a home oven to recondition welding rods is another unwise choice.

What is a 6011 welding rod used for?

E 6011 electrode is also categorized as a fast freezing electrode. E 6011 electrode is a general-purpose electrode performs welding in all positions and efficiently in vertical-up and over-head positions; it is used mainly for sheet metal welding and low silicon deposit application.

What are 3/4 welding rods used for?

Now, if you’re probably wondering what on earth would you do with a 3/4″ welding rod; I was wondering the same thing. These rods are typically used in foundries where they make steel. The molds and slag pots either wear or crack due to the extreme heat and use of molten metal.

Sureweld 7024 is ideal for making high speed horizontal fillet and lap welds on mild and some alloy steels, such as earthmoving and construction equipment, truck bodies, ships, barges and railcars.
