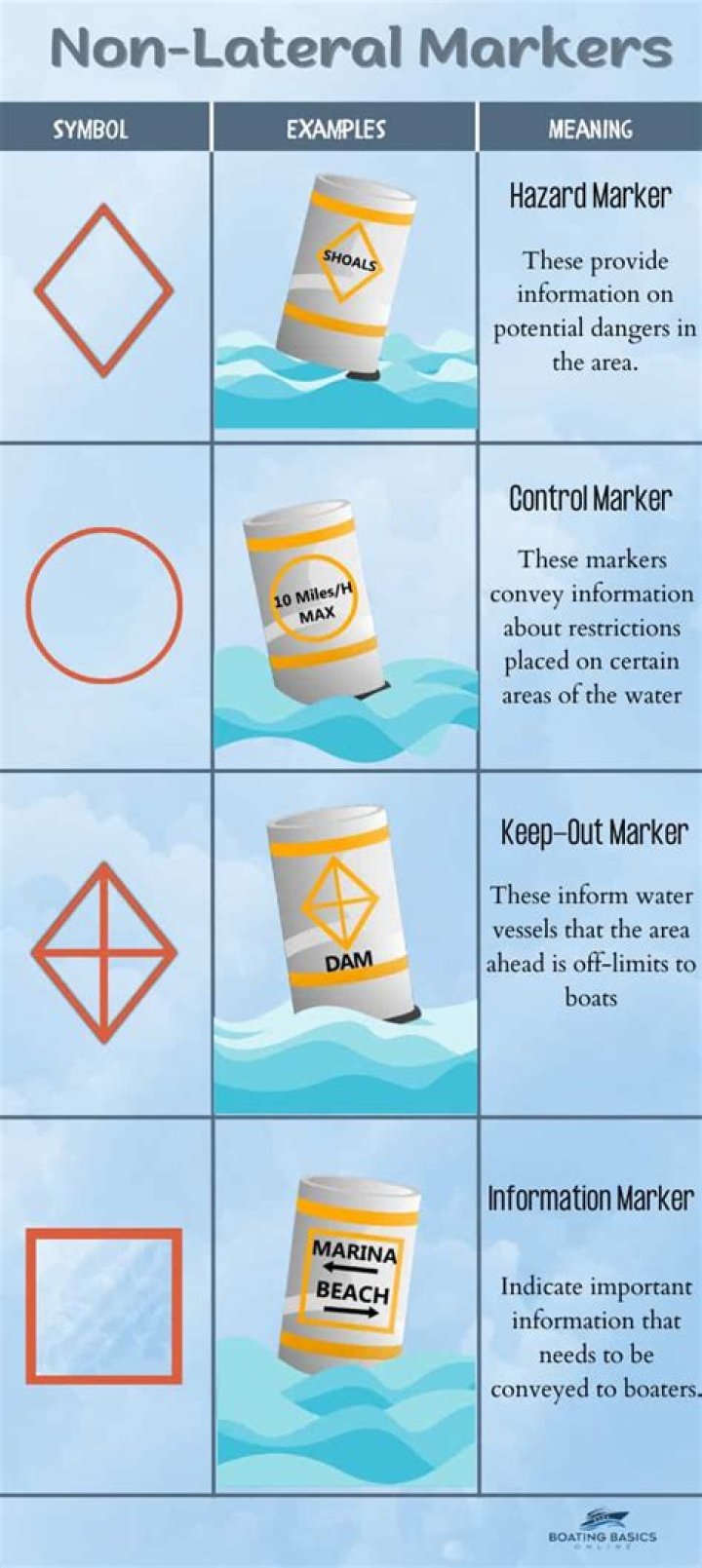

Controlled Area (non-lateral marker) Circles indicate a controlled area such as “no wake”, “idle speed”, speed limit, or ski zone. Exclusion Area. Crossed diamonds indicate areas off-limits to all boats such as swimming areas, dams, and spillways.

What does non-lateral marker indicate?

Non-lateral markers are navigation aids that give information other than the edges of safe water areas. The most common are regulatory markers that are white and use orange markings and black lettering. They are found on lakes and rivers.

What do lateral markers indicate?

Lateral markers are buoys and other markers that indicate the edges of safe water areas. Green colors, green lights, and odd numbers mark the edge of a channel on your port (left) side as you enter from open sea or head upstream.

They usually are placed in marinas and other areas where boats are allowed to anchor. These are the only buoys you may tie up to legally. These are white with black vertical stripes and indicate an obstruction to navigation. You should not pass between these buoys and the nearest shore.

What does this non lateral marker indicate black and white?

Inland Waters Obstruction Markers: These are white with black vertical stripes and indicate an obstruction to navigation. You should not pass between these buoys and the nearest shore.

Regulatory markers are used to advise you of situations, dangers, or directions. They may indicate shoals, swim areas, speed zones, etc. They can be easily identified by the orange bands on the top and bottom of each buoy. On the water, you will find these markers posted on the sides of buoys to aid in navigation.

What does a white marker with orange diamond and black lettering mean?

Boats Keep Out: A white buoy or sign with an orange diamond and cross means that boats must keep out of the area. Black lettering on the buoy or sign gives the reason for the restriction, for example, SWIM AREA. Danger: A white buoy or sign with an orange diamond warns boaters of danger – rocks, dams, rapids, etc.

What is the symbol on a regulatory marker?

The symbol on a regulatory marker that indicates hazards such as rocks or stumps is an Orange Diamond. Regulatory markers are types of non-lateral markers such as white and orange markings that are used as navigation aids that give directions, warn of dangers and marks controlled locations.

A No Discharge Zone (NDZ) further prohibits the discharge of treated boat sewage. Within NDZ boundaries, vessel operators are required to retain their sewage discharges on-board for disposal at sea (beyond three miles from shore) or onshore at a pumpout facility.

What is a hazard marker?

The Hazard Marker is used to mark obstructions adjacent to or within the roadway, such as bridge piers and traffic islands. Hazard marker signs consist of black diagonal stripes on a yellow background. The WA-36 sign is used to mark an obstruction in the roadway which may be passed on either side.

What is an information marker buoy?

These are informational buoys usually issuing a warning or announcing important information or rules such as prohibiting boats from entering a milfoil/noxious weed area. “Orange on White/Above-Below, Information you must know”.

Should not pass between marker and nearest shore?

Inland waters obstruction markers are white with black stripes. You should not pass between these buoys and the shore. Navigational markers also may be black and/or white, red and/or white, numbered or lettered, indicating locally-placed or outdated navigational systems.

Channel markers indicate the sides of a navigable channel; you can avoid sand bars and other hazards by keeping within the markers. They also show where junctions with other channels occur, as well as forks or splits in a channel. Channel markers can show the safe side to pass a hazard.

What do the red and green markers indicate quizlet?

These are placed at the junction of two channels to indicate the preferred (primary) channel when a channel splits. If green is on top, the preferred channel is to the right. If red is on top, the preferred channel is to the left.

What marker is used to warn boaters?

Cautionary Buoys are used to warn mariners of dangers such as firing ranges, race courses, seaplane bases, traffic separations, underwater structures and areas where no safe through channel exists. Yellow in colour they carry an identification mark, or letter. If they have a topmark, it is a single yellow “X” shape.

What is the main purpose of the lateral system of red and green buoys?

Aids to navigation on state waters use red and green buoys to mark channel limits, gener- ally in pairs. Your boat should pass between the red buoy and its companion green buoy.
