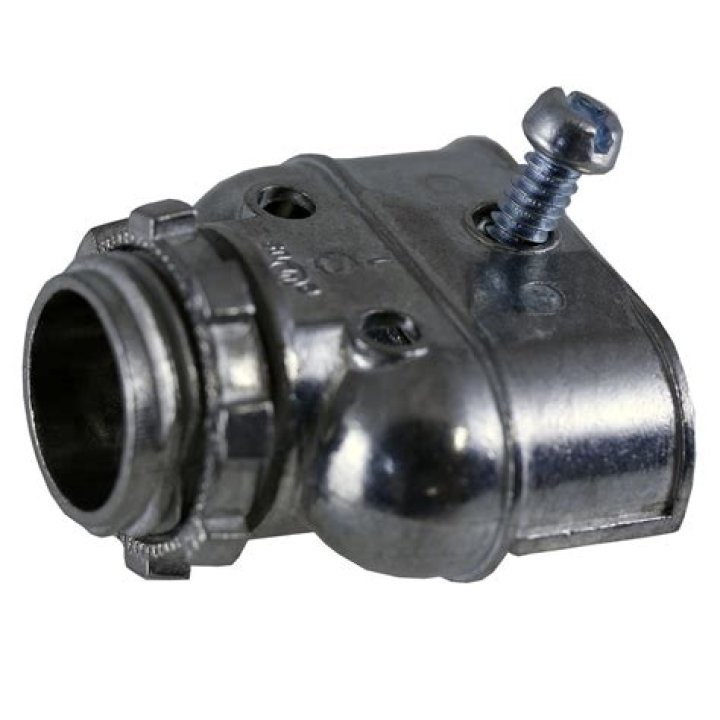

BX Connector. Use: BX connectors are used to terminate steel Armored. Cable to a 1/2″ knock-out in a dry. location box or enclosure.

What is the difference between BX and MC cable?

They’re very similar in most regards, but there is one big difference between the two cables. In the electrical world, AC or BX cables do not come with a ground wire while MC cables do. Both are essentially just names for armored cable.

Is BX cable legal?

BX is accepted by the National Electrical Code (NEC). Older BX cables without an internal bonding strip are not accepted by NEC.

If the armored cable is BX without a copper ground, use a metal junction box and attach the Romex grounds to the metal box preferably with a ground screw and pigtail (stinger). BX cable, more properly known as Type AC, does not have a copper ground.

Why is it called BX cable?

Armored cable (AC) first appears in the 1903 NEC. There were originally two initial versions of armored cable. One was called “AX” and the other “BX,” with the “X” standing for “experimental.” The “BX” version became the one that eventually was produced, and hence the name “BX” became the common name.

BX wiring (also known as armored cable) is the 2nd generation of wiring used in homes. It first appeared in the 1903 National Electrical Code (NEC) book. It became popular in the 1920s, and it was the main wiring type by 1932.

What is the disadvantage of BX armored cable?

The main drawback is that BX is more expensive. It is about 35-40% more for the cable than BX. It is also slightly more difficult to install, as cutting the metal sheathing takes slightly more time, than cutting NM cable.

Is BX wire copper or aluminum?

Aluminum BX Cable is commonly used in electrical jobs and has 3-4 strands of copper inside of it.

Getting to the BX issue, both MC cable and Greenfield (FMC) are allowed without length restriction (for residential, anyway) when being fished into walls/ceilings for remodel work. If you strip away the entire wall/c’lg surface then an inspector would tend to want conduit installed if practical.

Is MC cable better than Romex?

Electric shielding: Both MC cable and Romex are effective at protecting against magnetic fields, but MC cable can provide additional protection against electric fields due to its metallic casing. Non-metallic Romex cables cannot provide the same protection.

What is MCI a cable?

In the late 2000’s, a new style of Type MC Cable was designed that incorporated full-sized bare aluminum ground wire plus the armor as the equipment grounding means. This cable was referred to as Type MCI-A, referencing the style of fitting needed in order to ensure the bonding wire was properly installed.

How do you ground a metal box to a BX cable?

The standard way is to fold the ground strip back onto the cable and use an approved connector (outside) to connect the BX cable to the metal junction box. Thereby the box will be properly grounded. Then use a ground screw in the junction box to connect your ground wire of the 10/2 cable. Do test the ground when done.

Armored cables provide the protection and durability required without the need for electrical conduit, elbows, costly offsets, and conduit couplings. Metal-clad armor resists corrosion, making it suitable for areas exposed to moisture.

Can you run armored cable outside?

Type AC “armored cable” cannot be used outdoors. Type MC “metal-clad cable” may be used outdoors, if the manufacturer has rated it for outdoor use and marked the packaging as such.

Can you put two Romex in connector?

The romex connector that is used has on the package the specs for wire size and number combinations. Usually more than two in any given connector is unacceptable.
