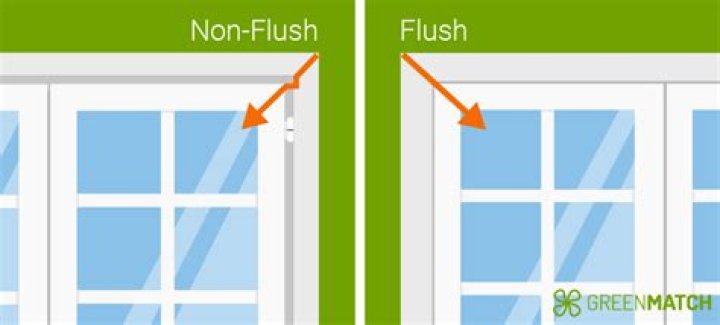

Flush-mount windows lay smooth with the building, and trim is installed on top of the window flange. On the j-lap, or j-channel mount, the glass protrudes slightly because three is a channel built onto the window to allow siding or trim board to slide in.

What is a flush mount window?

FLUSH MOUNT TRANSACTION WINDOWS. Flush mount window designs blend seamlessly into the buildings exterior, and can easily accommodate exterior or interior air curtains. Operating systems are located in the header for a track free sill. Flush mount windows can be set in masonry, wood or storefront.

What is J channel on window?

J-Channel flashing is designed specifically for trimming out openings on your wall panels. Windows, doors, and louvers on the walls of your building blend in seamlessly when J-Channel is installed. J-Channel hides the cut lines of panels giving your proj | Metal Siding Trim.

Do windows with built in J channel need drip cap?

Yes if you have a situation where you need drip cap then you should install it.

Can you replace J channel without removing siding?

Yes! You can easily replace the windows without removing siding so that if the frame and sill are both in good condition, free from moisture and mold, you can easily replace the windows without the exterior remodeling.

What does J-channel mean?

Traditionally, j-channel was a siding trim molding fastened around windows and doors which then received the siding. Some modern vinyl windows, however, incorporate a j-channel right into the window itself. There is no need to add another j-channel.

Can you use a shed window for a house?

No, we do not recommend shed windows for the home, these windows are made for sheds, they are not energy efficient, and the windows are not finished off inside the window such as they are for home windows.

How do J-channels work?

J-Channels

The top of this trim has small holes that allow it to be attached to a substrate without drilling into the vinyl. The bottom curves around, hiding the end of a piece of vinyl siding. J-channels typically are used to hide the ends of siding as it butts up against windows, doors or similar objects.

How do I get rid of J channel around windows?

How to Remove a J-Channel Without Harming the Siding
Locate an edge of the siding. Thrust a zip tool up, hook first, beneath the overlap where the J-channel resides. Gently but firmly pull the tool down. Slide the zip tool approximately 12 inches over, and repeat the procedure on an attached part of the J-channel.

What is J channel size?

Most vinyl siding manufacturers make two or three sizes of J-channel. For vertical siding, these channels typically have openings of 3/8 inch to 1/2 inch to receive siding panels and soffit materials. For horizontal siding, J-channels with openings of 3/4 inch to 1 inch are commonly used.

Should J channel be caulked?

TOM: Nah, it’s not necessary. It should be watertight the way – if the installers put it in correctly, it should be watertight as it is. If they need – if it needed to be caulked, they would have done that. And you generally don’t have to caulk between the back of the J-channel and the side of the window.

What can I use instead of J channel?

J-channel is still available, but the better choice would be a flat trim board that surrounds windows and doors. These flat boards come with a rabbited edge that creates a hidden recess for the siding to slide behind. It works the same way the older J-channel works, but it’s much better looking.

Where is J channel used?

J channel is often used for corners and edges, and around openings like windows and doors. Not only does the J channel seal off the siding, but it also helps hold the pieces of siding together. The siding is inserted into the folded J channel. Without J channel trim in place, the siding would look messy and slipshod.
