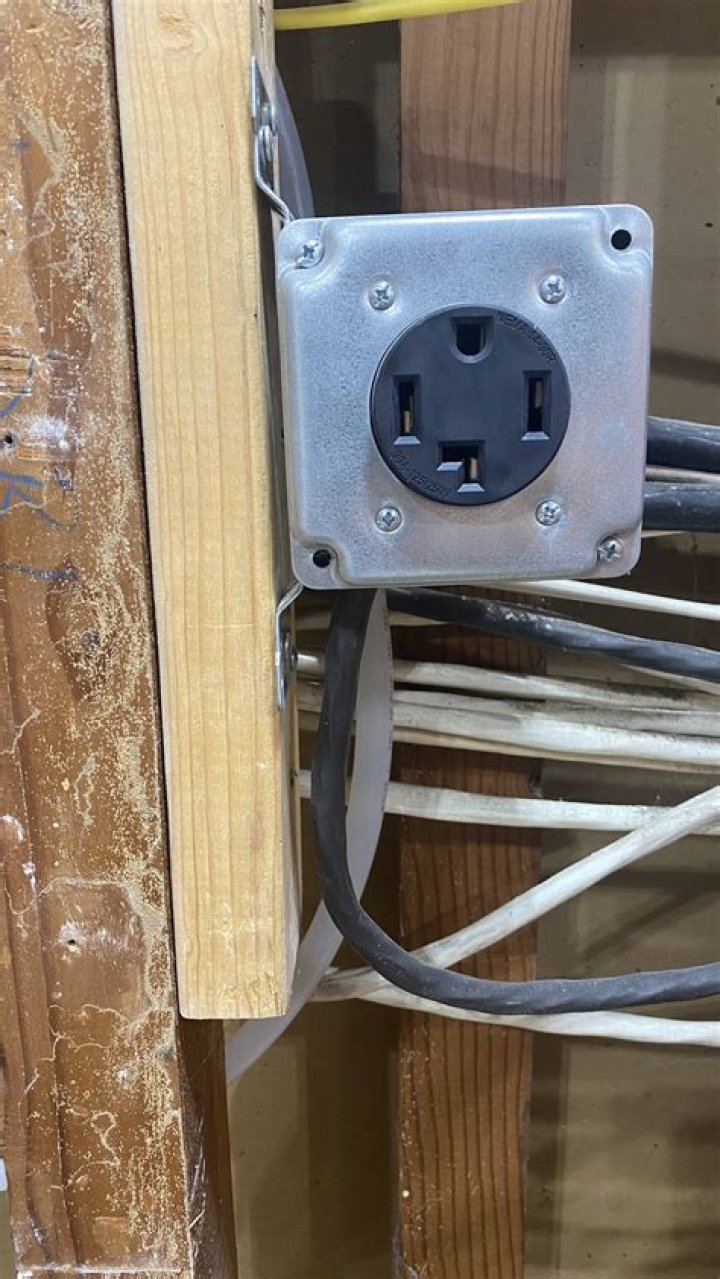

A raised device cover is used to adapt a 4″ or 5″ box to accept wiring devices. A finish plate is then put over the device. They come in 1 or 2 gang and in a variety of “raise” sizes from flat to 1-1/4″ and are used on drywall or plaster.

What is the purpose of an electrical box mud ring?

A raised device cover is used to adapt a 4″ or 5″ box to accept wiring devices. A finish plate is then put over the device. They come in 1 or 2 gang and in a variety of “raise” sizes from flat to 1-1/4″ and are used on drywall or plaster.

Can you use a mud ring on electrical box?

Install electrical boxes before the walls are covered whenever possible. A mud ring on a electrical box is a cover with an opening for a switch or outlet and the edges protrude through the drywall or plaster to the outer surface of the wall.

The heads of the 8-32 screws in the corners of the box space the box from the drywall another 1/8″. If you’re using 1/2″ drywall a 5/8″ ring will bring the ring flush with the drywall. With 5/8″ drywall using a 3/4″ ring the same thing is true.

Should outlet boxes be flush with drywall?

When you install an electrical box, make sure it is flush with the surface of this drywall strip; this will ensure the boxes are at the proper depth when the walls are finished.

: the ring or frame forming the bottom of a water leg in a steam boiler.

How do you cut drywall around a mud ring?

To cut holes around boxes, I measured carefully and cut in the garage with an oscillating tool which produces nice, clean cuts. Generally I leave about 1/8″ clearance or less. Standard drawn steel mud rings are tapered, though, with a radius at the base, so I have to cut a bit larger to allow the drywall to sit flat.

What is a low voltage ring?

American Made Drywall Brackets and Electrical Boxes

Our low voltage mounting brackets and mud rings are designed to facilitate the installation of electrical wiring around outlets in a safe manner. It adjusts to fit ¼” to 1” thick wallboard, drywall, or paneling.

Low Voltage Mounting Brackets are the time and money-saving solution for faster and easier mounting of Class two communications, computer and cable TV wiring. Mounting wings hold bracket securely against wall when screws are tightened.

What is ring and string for cabling?

Ring and string means there is a low voltage ring cut into the wall and there is a pull string from there to up in the ceiling. Usually the ring is covered with a blank plate if not needed immediately. You can remove the blank and use it at any time in the future.

What is a 1900 box?

A 1900 Electrical Box is defined as a standard 4 inches (4”) square electrical switch box which is the combination of a gas and electrical box. It is the most commonly used box when a simple switch box is not big enough.

What is a plaster ring?

A cylindrical metal ring, set in a plaster ceiling, which serves as a guide for plastering to a given thickness; also serves as a fastener for trim.

Regardless of whether the box is plastic or metal, it has to be installed flush with the wall surface if it is combustible and no more than 1/4″ setback in a noncombustible wall surface.

What size mud ring do you use for 5/8 drywall?

The raise is the overall measurement from the back of the ring to the face of the ring. Therefore, the OP is correct, 5/8 raised rings are perfect for 1/2″ drywall and 3/4″ raised rings are perfect for 5/8″ drywall.

What is the easiest method of mounting electrical boxes?

How to Mount a New Electrical Box
Metal electrical box utilizes cable clamps to secure nonmetallic cable. This “four-gang” box is designed to hole four switches or receptacles. Nail-on plastic electrical boxes are affordable and easy to use. Nail-on electrical wall box is quick and fast to nail in place.
