ALU of 8085 performs 8-bit arithmetic & logical operations. The operations are generally performed with Accumulator as one of the operands. The result is saved in accumulator register.

What is ALU and its function?

An arithmetic logic unit (ALU) is a digital circuit used to perform arithmetic and logic operations. It represents the fundamental building block of the central processing unit (CPU) of a computer. Modern CPUs contain very powerful and complex ALUs.

What is the size of ALU in 8085?

The ALU is 8 bits wide, with the high-order bit on the left. The register file is the large block below the ALU. The registers are 16 bits wide, made up of pairs of 8-bit registers.

What is ALU with example?

An ALU performs basic arithmetic and logic operations. Examples of arithmetic operations are addition, subtraction, multiplication, and division. Examples of logic operations are comparisons of values such as NOT, AND, and OR. Operations can be accomplished by connecting multiple transistors.

What is an ALU device?

An arithmetic-logic unit is the part of a central processing unit that carries out arithmetic and logic operations on the operands in computer instruction words.

What are the three decision making operations performed by the ALU?

Grater than,Less than and Equal to are the three decisions making operations performed by the ALU of a computer.The greater-than sign is a mathematical symbol that denotes an inequality between two values.

How does the ALU affect the performance of a microprocessor?

Using its ALU (Arithmetic/Logic Unit), a microprocessor can perform mathematical operations like addition, subtraction, multiplication and division. A microprocessor can move data from one memory location to another. A microprocessor can make decisions and jump to a new set of instructions based on those decisions.

What are the operations performed by ALU of 8085?

The operations performed by ALU of 8085 are addition, subtraction, increment, decrement, logical AND, OR, EXCL U8IVE -OR, compare, complement and left / right shift. The accumulator and temporary register are used to hold the data during an arithmetic / logical operation.

What is ale microprocessor?

ALE stands for address latch enable. It is the 3oth pin of 8085 which is used to enable or disable the address bus.

Which logical operation is performed by ALU of a 8085 to complement a number?

ALU means Arithmetic and Logic Unit and it performs arithmetic and logical functions and the complement of operation is performed by either EX-OR gate or EX-NOR gate. An EX-OR is used because it can be used both as buffer and inverter by setting on of the inputs to 0 and 1 respectively.

How does ALU perform addition?

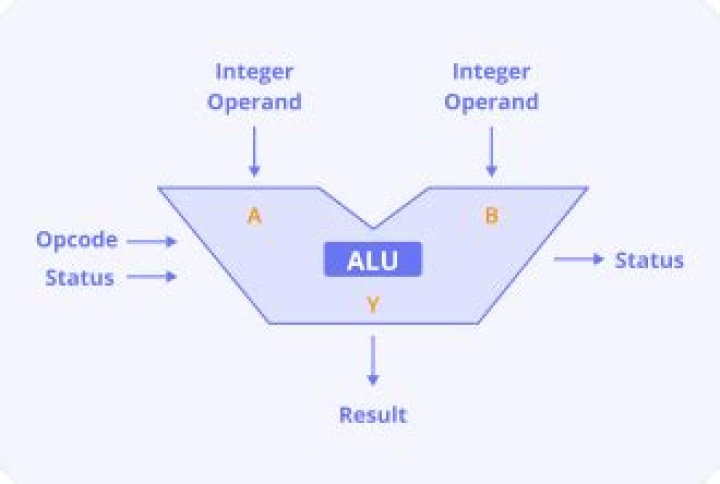

For example, a CPU begins an ALU addition operation by routing operands from their sources (which are usually registers) to the ALU’s operand inputs, while the control unit simultaneously applies a value to the ALU’s opcode input, configuring it to perform addition.

What is the purpose of control unit?

The control unit of the central processing unit regulates and integrates the operations of the computer. It selects and retrieves instructions from the main memory in proper sequence and interprets them so as to activate the other functional elements of the system at the appropriate moment鈥

What is ALU Tutorialspoint?

ALU is the 鈥渃alculator鈥 portion of the computer. An arithmetic logic unit(ALU) is a major component of the central processing unit of the a computer system. It does all processes related to arithmetic and logic operations that need to be done on instruction words.

What is CPU explain CU and ALU?

Answer: ALU and CU are the heart of the CPU. ALU is the Arithmetic and Logic Unit which performs all the arithmetic and logical operations such as addition, subtraction, logical AND, OR etc. CU is the Control Unit. It decodes the instructions, and controls all the other internal components of the CPU to make it work.

What is ALU and CU in computer?

Answers. Difference Between ALU and CU is that arithmetic logic unit is another component of the processor which performs arithmetic, comparison, and other operations. While control unit is the component of the processor that directs and coordinates most of the operations in the computer.

Which of the following operations are performed by the ALU?

The ALU performs simple addition, subtraction, multiplication, division, and logic operations, such as OR and AND.

What are the three decisions making?

Decision making can also be classified into three categories based on the level at which they occur. Strategic decisions set the course of organization. Tactical decisions are decisions about how things will get done. Finally, operational decisions are decisions that employees make each day to run the organization.

Which of the following operation is not performed by the ALU of the computer system?

Therefore, besides adding and subtracting numbers, ALUs often handle the multiplication of two integers, since the result is also an integer. However, ALUs typically do not perform division operations, since the result may be a fraction, or a “floating point” number.
