Deformation of a body is expressed in the form x = F(X) where X is the reference position of material points of the body. A deformation has units of length.

What is P in stress?

Stress is the measure of an external force acting over the cross sectional area of an object. Stress has units of force per area: N/m2 (SI) or lb/in2 (US). The SI units are commonly referred to as Pascals, abbreviated Pa.

What is the formula of stress and strain?

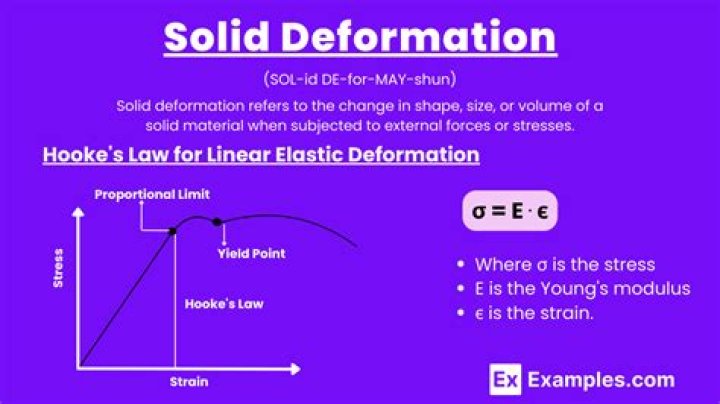

stress = (elastic modulus) × strain. stress = (elastic modulus) × strain.

What is the formula for calculating the Gaugelength?

Specimens are said to be proportional when the gauge length, L 0, is related to the original cross sectional area, A 0, expressed as L 0 =k√A 0 . The constant k is 5.65 in EN specifications and 5 in the ASME codes.

How do you find the elongation of a wire?

Y=F/AΔl/l; Here, A will be the area of the cross section of the rod and Δl will be the elongation i.e., the difference of final length and initial length l. The elongation can be written as: Δl=l(F/A)I ; where we replaced Y with I (given).

What is the formula for calculating change in length?

The equation for change in length is traditionally rearranged and written in the following form: FA =Y ΔLL0. Δ L L 0 . The ratio of force to area,FA, is defined as stress (measured inN/m2 ), and the ratio of the change in length to length,ΔLL0, Δ L L 0 , is defined as strain (a unitless quantity).

What unit is strain?

In practice, the “unit” for strain is called “strain” and the symbol e is used. Usually, strain is in the order of um/m, i.e. 10-6, and therefore, the unit “µε” (microstrain) is most commonly used.

What is stress formula?

The stress formula is the divided product of the force by the cross-section area. Stress = frac{Force}{Area} sigma = frac{F}{A}

What is Lagrange strain?

The Lagrangian strain is obviously a function of the displacement field u. We linearized the term δWint (u, δu) based on the directional derivative. D Δ U δW int ( u , δ u ) = d dε [ ∫ Ω 0 ( S ( E ( u + ε Δ u ) ) : δ E ( u + ε Δ u ) ) dX ] ε = 0.

Is Sigma a strain or stress?

Stress is frequently represented by a lowercase Greek letter sigma (σ). Strain inside a material may arise by various mechanisms, such as stress as applied by external forces to the bulk material (like gravity) or to its surface (like contact forces, external pressure, or friction).

How do you solve Young’s modulus?

Young’s modulus equation is E = tensile stress/tensile strain = (FL) / (A * change in L), where F is the applied force, L is the initial length, A is the square area, and E is Young’s modulus in Pascals (Pa).

Is load equal to stress?

Stress is the internal resistance, or counterforce, of a material to the distorting effects of an external force or load. These counterforces tend to return the atoms to their normal positions. The total resistance developed is equal to the external load. s = stress (psi or lbs of force per in.2)

How do you calculate stress load?

To convert the load to stress, you divide the load by the area of the specimen tested. (i.e. N/mm2). Use the conversion factors to change this stress (N/mm2) to the units of your interest. For instance, converting the units to Pa, you can multiply the N/mm2 by a square of (1000mm/1m) which will give you N/m2.

What is stress and strain in SOM?

Stress is the resisting force per unit area where as strain is the deformation per unit area. The stress is given by the ratio of resisting force to the cross section area of the body. The strain is given by the ratio of change in dimension to the original dimension.
