The motor power factor is the phase angle between voltage and current (cosφ). cos phi (φ) is used, among other purposes, to calculate the power consumption of a motor. … Cosφ is the phase angle between voltage and current. Cosφ is also referred to as power factor (PF).

What is a 1.0 power factor?

An ‘ideal’ device has a power factor of 1.0 and consumes all the power that it draws. It would present a load that is linear and entirely resistive: that is, one that remains constant irrespective of input voltage, and has no significant inductance or capacitance.

What is the power factor of a DC motor?

A DC drive connected to a 480Vac line powering a motor at 500 Vdc will have a displacement power factor of approximately 77%. At lower speeds the power factor (PF) drops off proportional to the armature voltage, so that at half speed, or 250 V, PF = 39%, or at 10% speed, PF=8%.

It is found by multiplying (kVA = V x A). The result is expressed as kVA units. PF expresses the ratio of true power used in a circuit to the apparent power delivered to the circuit.

What is power factor in 3 phase?

Three-Phase Power Formula

This simply states that the power is the square root of three (around 1.732) multiplied by the power factor (generally between 0.85 and 1, see Resources), the current and the voltage.

A power factor of 1 indicates that the voltage and current are in phase and have a low-harmonic content. A power factor of 0 indicates that the voltage and current are 90-degrees out of phase.

What happens when power factor is low?

A lower power factor causes a higher current flow for a given load. As the line current increases, the voltage drop in the conductor increases, resulting in a lower voltage at the equipment. With an improved power factor, the voltage drop in the conductor is reduced, improving the voltage at the equipment.

Is a higher power factor better?

A high power factor is generally desirable in a power delivery system to reduce losses and improve voltage regulation at the load. Compensating elements near an electrical load will reduce the apparent power demand on the supply system.

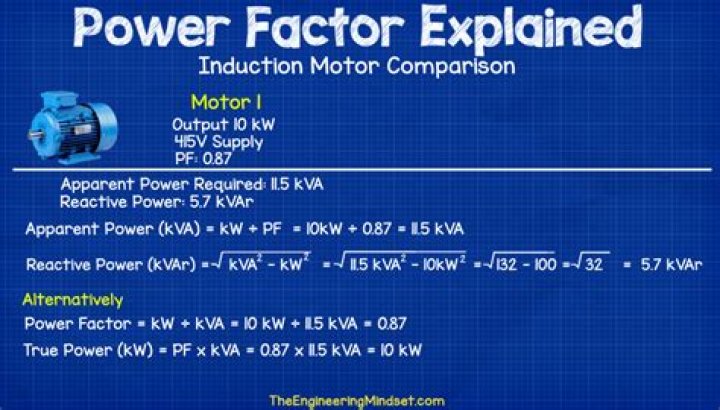

To determine power factor (PF), divide working power (kW) by apparent power (kVA) . In a linear or sinusoidal system, the result is also referred to as the cosine θ.

Which power factor is better leading or lagging?

Leading power factor signifies that the load current is capacitive whereas lagging power signifies that the load current is inductive in an AC circuit. To correct a leading power factor, inductive loads must be added while to correct a lagging power factor, capacitive loads should be added.

What causes poor power factor?

The main cause of low Power factor is Inductive Load. As in pure inductive circuit, Current lags 90° from Voltage, this large difference of phase angle between current and voltage causes zero power factor.

What are the disadvantages of low power factor?

Disadvantages and Effects of Low Power Factor
Large Line Losses (Copper Losses):Greater Conductor Size and Cost:Poor Voltage Regulation and Large Voltage Drop:

The Voltage across the inductor is zero, the voltage across any component is zero which means the resistance is zero, the inductor act as short circuit. The remaining one is resister, you know resistance power factor is one. That’s why we neglect the power factor in DC circuits.

Which power factor is good for an AC circuit?

Then an AC circuit can be defined to have a unity, lagging, or leading power factor. A poor power factor with a value towards zero (0) will consume wasted power reducing the efficiency of the circuit, while a circuit or load with a power factor closer to one (1.0) or unity (100%), will be more efficient.

Why transformer has no power factor?

The real reason is that all AC sources (transformer or alternators) are rated in VA (or KVA or MVA) is because the power factor of current is decided by the load connected. And since the load power factor is not known (while the transformer is being manufactured), they are rated considering resistive load (PF = 1).

What is 0.8 power factor?

Conventionally, alternator kVA ratings are based on a lagging power factor of 0.8. In this case the current will lag the voltage by an amount that causes the real power level supplied (kW) to fall below the kVA level by a factor of 0.8 times.

Power factor can be defined as the ratio of real power (Active power) to apparent power. It can also be defined as the absolute value of the cosine of the phase shift between the voltage and current in an AC circuit. It is denoted by the Greek alphabet λ (Lambda).

What is power factor and why is it important?

Power factor is a measure of how effectively you are using electricity. Various types of power are used to provide us with electrical energy. This power is split between something called Working Power and Reactive Power. Working power is used in all electrical appliances to create such things as heat, light and motion.
