The logical topology is always the same as the physical topology. Physical topologies are concerned with how a network transfers frames. Physical topologies display the IP addressing scheme of each network. Logical topologies refer to how a network transfers data between devices.

What is physical and logical network?

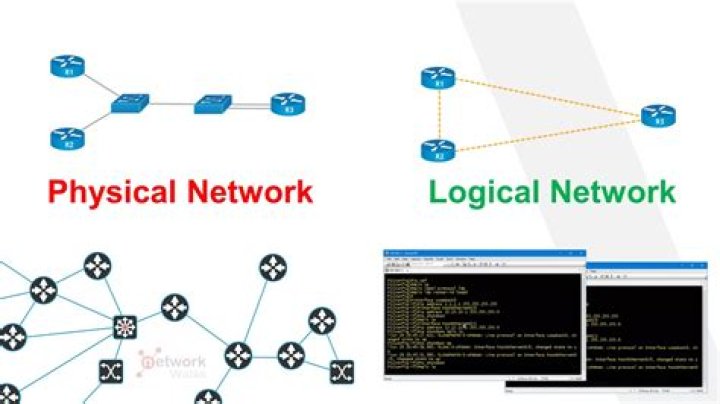

A physical network connects two or more physical network interfaces. A logical network is a portion of a physical network that connects two or more logical network interfaces or devices. A logical network interface or device is the software entity that is known by an operating system.

What is defined by the logical topology?

A logical topology is a concept in networking that defines the architecture of the communication mechanism for all nodes in a network. Using network equipment such as routers and switches, the logical topology of a network can be dynamically maintained and reconfigured.

What does physical topology mean?

Physical network topology is the placement of the various components of a network and the different connectors usually represent the physical network cables, and the nodes represents usually the physical network devices (like switches).

What does logical mean in networking?

A logical network is one that appears to the user as a single, separate entity although it might in fact be either an entity created from mutliple networks or just a part of a larger network. “When designing a network, the “logical” part refers to the IP addressing scheme used within the network.

What is the meaning of physical logical?

Logical implies a higher view than the physical. Users relate to data logically by data element name; however, the actual fields of data are physically located in sectors on a disk. For example, to find out which customers ordered how many of a particular product, the logical view is customer name and quantity.

What is the difference between logical and physical network design?

Logical design of a network consists of virtual design while the physical design of a network describes the hardware functions of the network. Logical designs determine the flow of data or communication between two networks while physical design is a communication between two computers connected with cables.

What is the difference between logical and physical network diagram?

Logical network diagrams focus in on how traffic flows across the network, IP addresses, admin domains, how domains are routed, control points, and so on. A physical network diagram will, ideally, show the network topology exactly as it is: with all of the devices and the connections between them.

How does the logical topology differ from the physical topology Why can a single physical topology support multiple logical topology?

How does the logical topology differ from the physical topology? Logical is how data is transferred in the network; physical is the physical connections in the network. A physical topology can support many logical topologies because of how data is transferred in the physical topology.

What is logical topology and its type?

Logical Topology is the arrangement of network devices and nodes to form a logical or physical structure. There are two types of topologies that are logical and physical. The logical topology deals with network protocols that are used to control the data flow across the network.

What is a physical topology diagram?

A physical network topology diagram will include icons of elements like workstations, servers, routers, and switches, while the lines between these elements represent cable connections. However, this isn’t necessarily the most useful type of diagram to create.

Why logical topology is also define as a signal topology?

Logical topology is also called signal topology. Every LAN has a topology, or the way that the devices on a network are arranged and how they communicate with each other.

What is logical topology list the two main types of logical topologies?

The two logical topologies are broadcast (also known as bus) and sequential (also known as ring). In a broadcast topology, all devices on the network receive every message transmitted.

What is a logical diagram used for?

Logical Data Flow Diagram

A logical DFD is a model of how a business operates, and the processes it depicts represent business activities. The logical DFD shows points where data is collected regardless of the type of storage used.

What is a logical diagram?

views 1,428,169 updated. logic diagram A diagram that displays graphically, by interconnection of logic symbols, the digital design of a logic circuit or system.

What is a logical design?

Create a Logical Design

A logical design is a conceptual, abstract design. The process of logical design involves arranging data into a series of logical relationships called entities and attributes. An entity represents a chunk of information. In relational databases, an entity often maps to a table.
