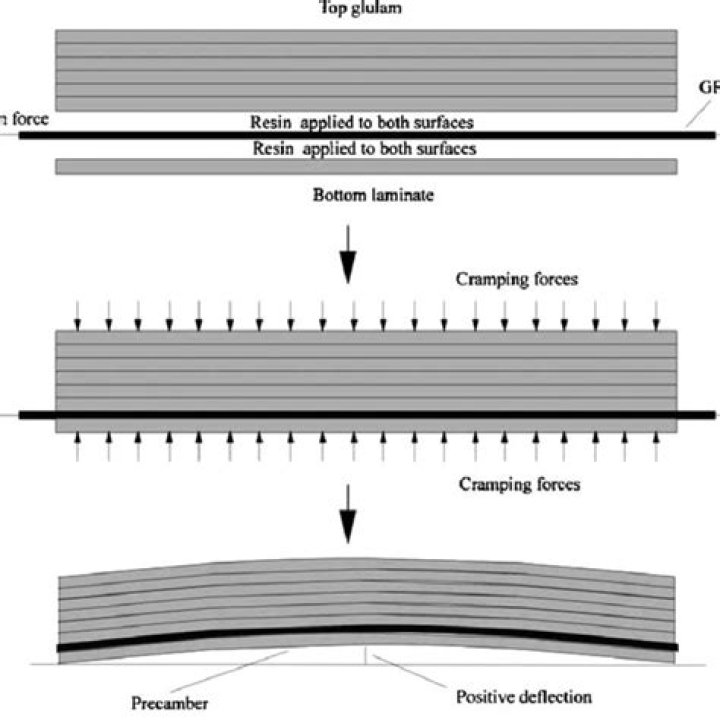

precambered (not comparable) (of a beam) Having a camber designed in such a way as to reduce deflection under load.

Why is Cambering done?

The Need for Camber

A cambered (curved) beam can support a greater weight, lessening the impact of heavy loads on certain parts of the structure. When it comes time to pour concrete on a floor, if beams are not cambered (curved), the floor will permanently sag under the weight.

What is camber in steel?

In the world of structural steel, camber denotes a curve in the vertical plane; sweep denotes a curve in the horizontal plane. Steel members produced in a steel mill have at least some camber and some sweep. The allowed amount of deviation from straight is defined by the tolerances specified in ASTM A6/A6M.

What is the purpose of beam camber?

The obvious purpose of cambering is, to take straight steel beams and convert them to vertical arcs. Compared to cambering straight structural steel in the shop, producing and transporting structural steel with the necessary curvature simply isn’t in the same realm of efficiency.

What is camber in slab?

February 26, 2019. Camber is inherent in all prestressed precast products. It is the upward deflection created by the prestressed forces in the strands located below the center of gravity. This is required to resist design loads and in the hollowcore plank it compresses the bottom more than the top.

What is truss camber?

During production, trusses improve on traditional rafter design by forcing an upward bend into the chords of trusses. This is referred to as a ‘camber’. A camber helps to resist loads. For example, the amount of bend is calculated to help resist the load of tiles and ceiling lining.

What is camber in welding?

Definitions. The amount of curvature or deviation from exact straightness over any specified length of material.

What is a cambered chassis?

Cambering forms an upwards curve in a linear product relative to its center. Camber is the amount of deflection induced in the opposite direction of its load. When a beam is subjected to vertical downward loads, it has a tendency of deflecting downwards. Cambered beams can also be found in truck chassis.

What is positive and negative camber?

It is used in the design of steering and suspension. If the top of the wheel is farther out than the bottom (that is, away from the axle), it is called positive camber; if the bottom of the wheel is farther out than the top, it is called negative camber.

What is the difference between sweep and camber?

When we are talking about metal bending a camber denotes a curve in the vertical plane (hardway bending) and a sweep denotes a curve in the horizontal plane (easyway bending).

How do you camber steel beams?

Cold bending is the most common method to induce camber in a member, and it usually involves the use of brute force. A steel beam is placed in a cambering machine – often built by the fabricator – with pivot points about 20 feet apart and a pair of hydraulic jacks centered at two points about 6 feet apart.

What are the types of camber?

The following 4 types of camber are generally provided to the road surface. Composite camber.

Barrel camber.
Composite camber. Sloped or Straight camber. Two straight line camber. Barrel camber.

How much can you camber a beam?

This standard gives a maximum natural mill camber or sweep for any beam as 1⁄8” times the length of the beam in feet divided by 10. For a 30′ span this works out to be 3⁄8”. Members specified with no camber must be erected with any natural mill camber in the up- ward direction.

What are trimmer bars?

RE: Trimmer Bars

In the UK Trimmer Bars is the name for additional bars placed round an opening, such as pipe penetrations through an RC tank wall or a large opening. They are usually placed at 45 degrees across corners (assuming horz bars at 0 deg and vert bars at 90 deg).

Why is camber used in slabs?

As Dr Subramanian and Mr Vikramjeet have pointed out, the camber is provided to nullify primarily a small fraction of the total maximum deflection, not the entire or a sizeable fraction of the total deflection. Self-weight, for example, is permanent and relatively more confidently known type of load.

How camber is provided?

Method of Providing Camber in Road

Normally, the camber is provided on the straight roads by raising the center of the carriageway with respect to these edges, forming a crown or highest point on the center-line. Camber can be expressed in percentage. If the camber is n%, the cross slope is n in 100.
