The RTD typically can be used over a higher temperature range than a thermistor, having temperature ranges of −250 to 1000°C. A constant-voltage bridge circuit, similar to that used with strain gages, is usually used for sensing the resistance change that occurs.

What is the range of a Pt100 RTD?

Platinum resistance thermometers (PRTs) offer excellent accuracy over a wide temperature range (from –200 to +850 °C). Standard sensors are are available from many manufacturers with various accuracy specifications and numerous packaging options to suit most applications.

What is RTD value?

The common values of resistance for a platinum RTD range from 10 ohms for the bird-cage model to several thousand ohms for the film RTD. The single most common value is 100 ohms at 0ºC (RTD Pt100). The DIN 43760 standard temperature coefficient of platinum wire is α = . 00385.

An RTD is a passive device. It does not produce an output on its own. External electronic devices are used to measure the resistance of the sensor by passing a small electrical current through the sensor to generate a voltage.

What is the range of platinum resistance thermometer?

The platinum resistance thermometer is a versatile instrument for temperature measurement in the range from — 200° to 1000°C. It is used both for precision measurements of the highest accuracy and for routine industrial work.

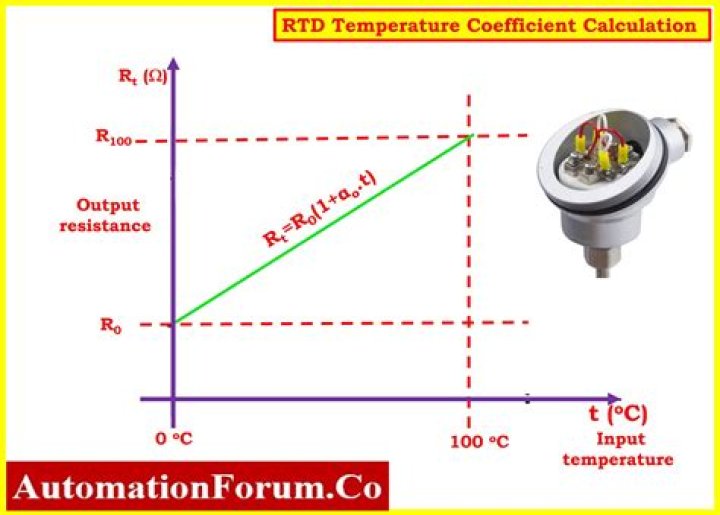

The temperature coefficient of resistance (TCR) for resistance temperature detectors (denoted by αo), is normally defined as the average resistance change per °C over the range 0 °C to 100 °C, divided by the resistance of the RTD, Ro, at 0 °C.

What RTD means?

RTD stands for Resistance Temperature Detector. RTDs are sometimes referred to generally as resistance thermometers. An RTD is a temperature sensor which measures temperature using the principle that the resistance of a metal changes with temperature.

What is the range of temperature measurement using thermocouple?

Depending on the metal wires used, a thermocouple is capable of measuring temperature in the range –200°C to +2500°C.

Mechanical Based Temperature Element

Bimetallic is temperature element instrument formed from two types of metal which have different thermal expansion properties. These two metal are bonded together become one strips. The metal strips will bend if temperature changes.

What is Pt100?

Pt100 is a resistance temperature detector, made of material Platinum (= Pt_) and its resistance value at 0 °C temperature is 100 ohm (=_100). Hence the name is Pt100.

What is thermocouple principle?

The thermocouple working principle is based on the Seeback Effect. This effect states that when a closed circuit is formed by jointing two dissimilar metals at two junctions, and junctions are maintained at different temperatures then an electromotive force (e.m.f.) is induced in this closed circuit.

What is the function of thermowell?

A thermowell serves as a protective barrier between a thermometer and the process media. Thermowells are often found in industrial process systems within refineries and petrochemical and chemical plants. In addition to protecting thermometers, thermowells provide easier serviceability and reduce operating costs.

What is RTD Accuracy ?
DIN Class A: ±(0.15 + 0.002*|T|) °C (Matches IEC 751 Class A)DIN Class B: ±(0.30 + 0.005*|T|) °C (Matches IEC 751 Class B)DIN Class C: ±(1.20 + 0.005*|T|) °C.Grade A: ±(0.13 + 0.0017*|T|) °C.Grade B: ±(0.25 + 0.0042*|T|) °C.Also Read : How to Calculate RTD Tolerance.
