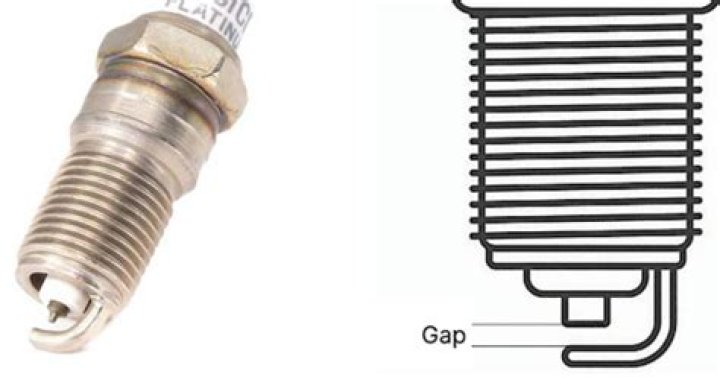

For most racing applications, you usually want the plug gap to be between 0.020 and 0.040 of an inch. Most engine builders seem to settle around 0.035 of an inch. Factors such as the type of ignition you run, cylinder heads, fuel and even timing can affect how much gap will work best for you.

Do NGK Spark plugs need to be gapped?

While most NGK spark plugs are pre-gapped, there are occasions when the gap requires adjustment. Care must be taken to avoid bending or breaking off the fine-wire electrodes. NGK also recommends adjusting the gap no more than +/- 0.008鈥 from the factory preset gap.

Is a bigger spark plug gap better?

The larger the gap, the more voltage is needed to jump the gap. Most experienced tuners know that increasing the gap size increases the spark area exposed to the air-fuel mixture, which maximizes burn efficiency.

What will happen if the spark plug gap is too big?

If the spark plug gap is incorrectly set, it can lead to engine issues. Too small of a gap may give too weak of a spark to complete the combustion process within the engine; too wide of a gap can lead to the spark plug not firing correctly, causing misfires at high speeds.

How do I know if my spark plug gap is wrong?

A list of some of the most common symptoms of incorrectly gapped spark plugs is laid out below.
Rough Engine Idle. An engine that has a rough, irregular engine idle is often due to spark plugs that are incorrectly gapped. Engine Hesitation. Engine Missing. Poor Engine Performance. Engine Knocking.

What does a smaller spark plug gap do?

A smaller gap ensures the spark plug fires on each cycle. But if the spark gap is too small, there won’t be enough room for the airfuel mixture between the ground electrode and center electrode. So when the spark plug fires, there’s a possibility that nothing ignites.

Is it bad to Gap Iridium spark plugs?

In most cases your Iridium Power plugs do not need to be gapped. Should you decide to re-gap your Iridium Power plug, use extreme caution as improper gapping may damage or destroy the Iridium center electrode or porcelain center.

What does the R mean in NGK plugs?

The 鈥淩鈥 indicates a resistor type spark plug. Resistor type spark plugs reduce the amount of radio frequency interference (rfi) that can cause ignition misfires and static on the radio, if so equipped. The number at the end indicates the recommended spark plug gap in tenths of a millimeter.

Does spark plugs increase horsepower?

In short, yes, in some situations spark plugs can increase horsepower.

Should I adjust spark plug gap?

The incorrect plug gap for your engine can contribute to a high rate of misfires, loss of power, plug fouling, poor fuel economy and accelerated plug wear. It is always best to check the gap against the manufacturer’s specifications.

Can spark plug gap affect timing?

Changing the spark plug gap won’t affect the ignition timing, but it will have some affects on the ability of the spark plug to ignite the fuel.

Why does my car shake after I changed the spark plugs?

Either the spark plugs have been connected up in the right firing order, the leads aren’t pushed onto the spark plug terminals properly or they’ve been damaged or one or more of the new spark plugs are faulty or they’ve been damaged while fitting them!
